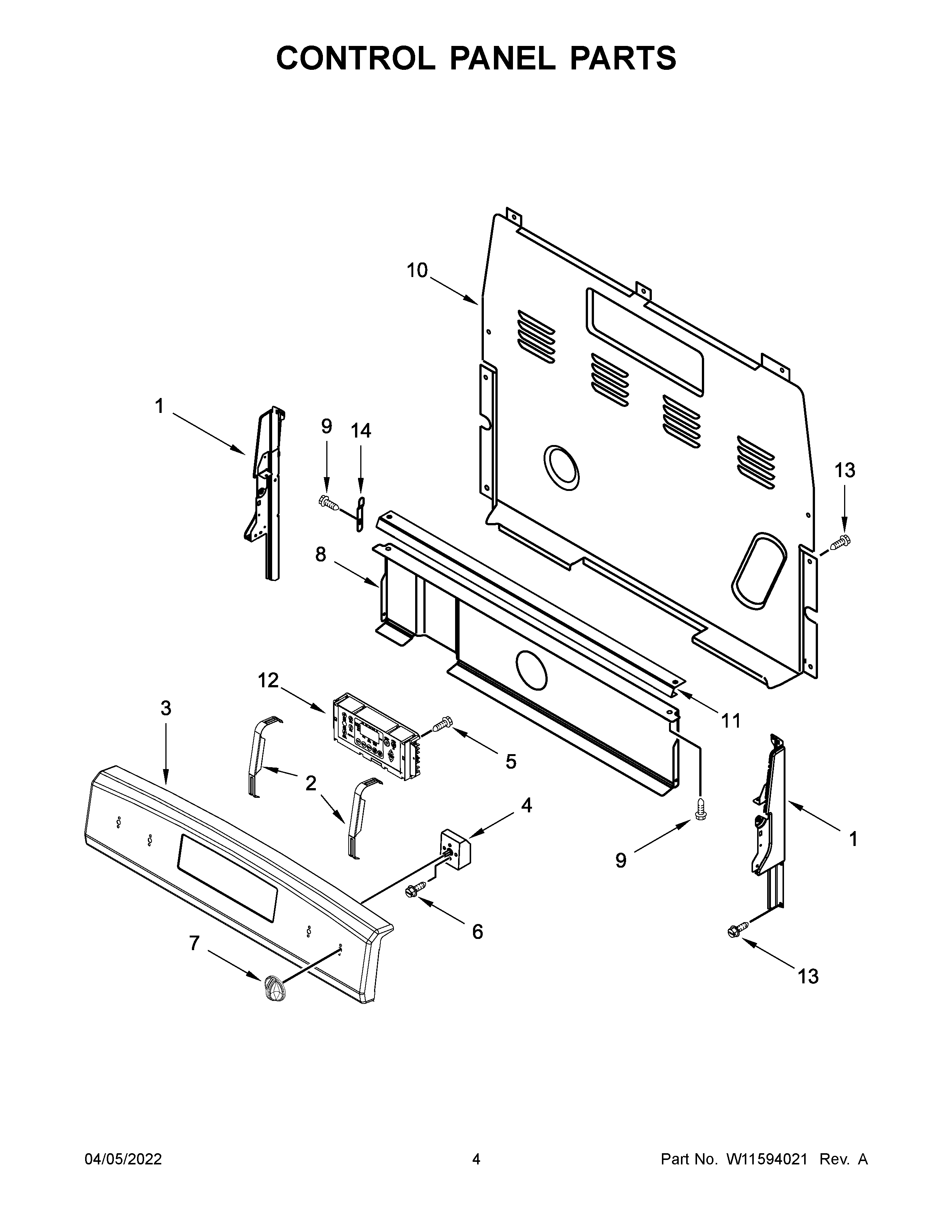

ACR4503SFB7 03 – CONTROL PANEL PARTS

ACR4503SFB7 03 – CONTROL PANEL PARTS

Written by

in

ACR4503SFB7 03 – CONTROL PANEL PARTS

Products

PositionProduct
1CW11219370 Whirlpool Endcap Panel
1BW11219365 Whirlpool Panel Endcap
1AW11219665 Whirlpool Panel Endcap
1W11219664 Whirlpool Endcap Panel
2W11230932 Whirlpool Bracket Mounting
3AW11231950 Whirlpool Control Panel
3W11231949 Whirlpool Control Panel
4AWP3149400 Whirlpool Oven Infinite Switch
4WP3148952 Whirlpool Oven Infinite Switch
5WP3196557 Whirlpool Screw
6WP3400882 Whirlpool Screw
7W11210997 Whirlpool Knob
7AW11188750 Whirlpool Knob
8W10134247 Whirlpool Heat Shield
9WP3196175 Whirlpool Screw
10WP8272473 Whirlpool Rear Cover
11W10525121 Whirlpool Control Bracket
12W11594204 Whirlpool Electronic Control Board + Core
12AW11602267 Whirlpool Electronic Control Board + Core
13SCREW
143196200 Whirlpool Clip
