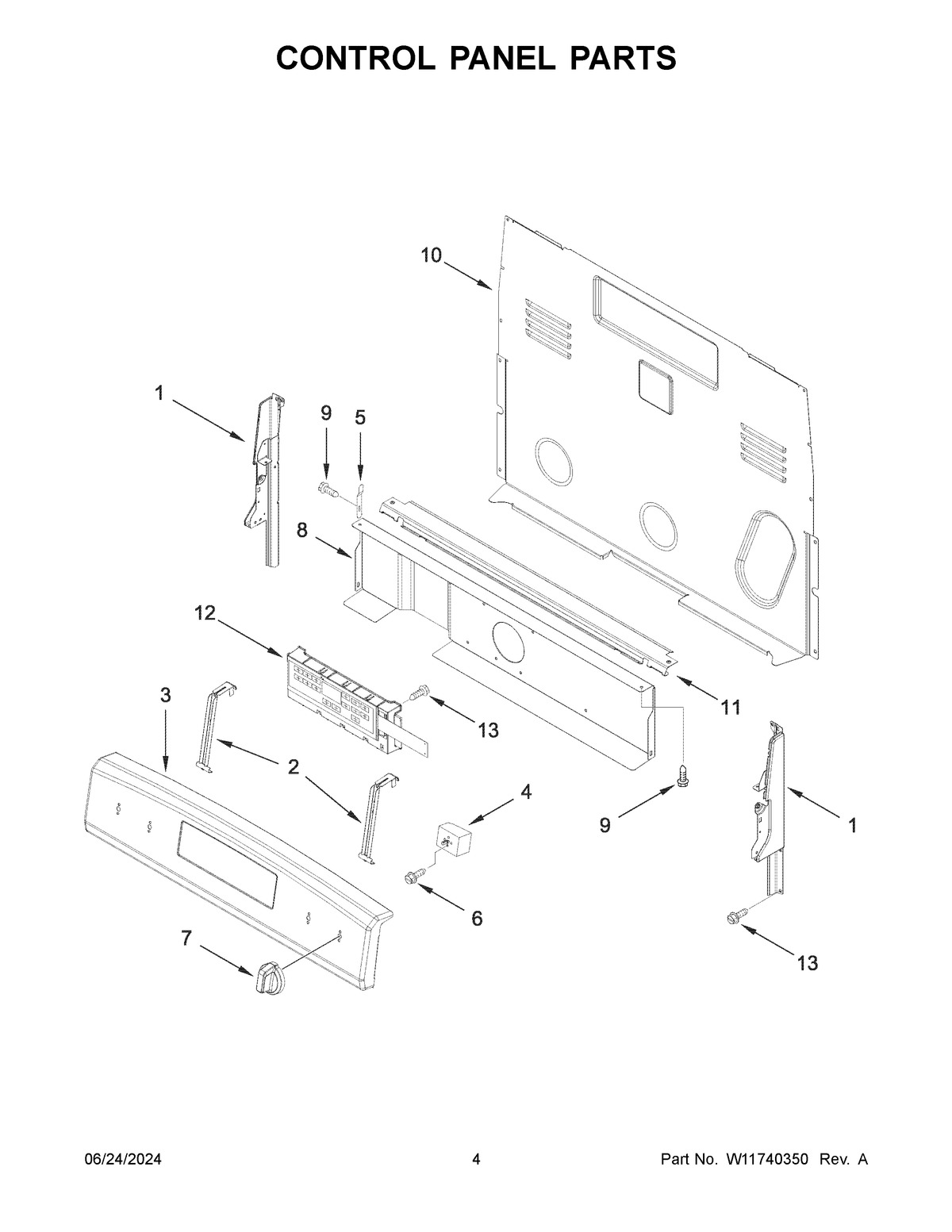

ACR4503SFB8 03 – CONTROL PANEL PARTS

Products

Position	Product
1B	W11219365 Whirlpool Panel Endcap
1C	W11219370 Whirlpool Endcap Panel
1	W11219664 Whirlpool Endcap Panel
1A	W11219665 Whirlpool Panel Endcap
2	W11230932 Whirlpool Bracket Mounting
3	W11231949 Whirlpool Control Panel
3A	W11231950 Whirlpool Control Panel
4A	WP3149400 Whirlpool Oven Infinite Switch
4	WP3148952 Whirlpool Oven Infinite Switch
5	3196200 Whirlpool Clip
6	WP3400882 Whirlpool Screw
7	W11210997 Whirlpool Knob
7A	W11188750 Whirlpool Knob
8	W10134247 Whirlpool Heat Shield
9	WP3196175 Whirlpool Screw
10	WP8272473 Whirlpool Rear Cover
11	W10525121 Whirlpool Control Bracket
12	W11594204 Whirlpool Electronic Control Board + Core
12A	W11602267 Whirlpool Electronic Control Board + Core
13	SCREW
