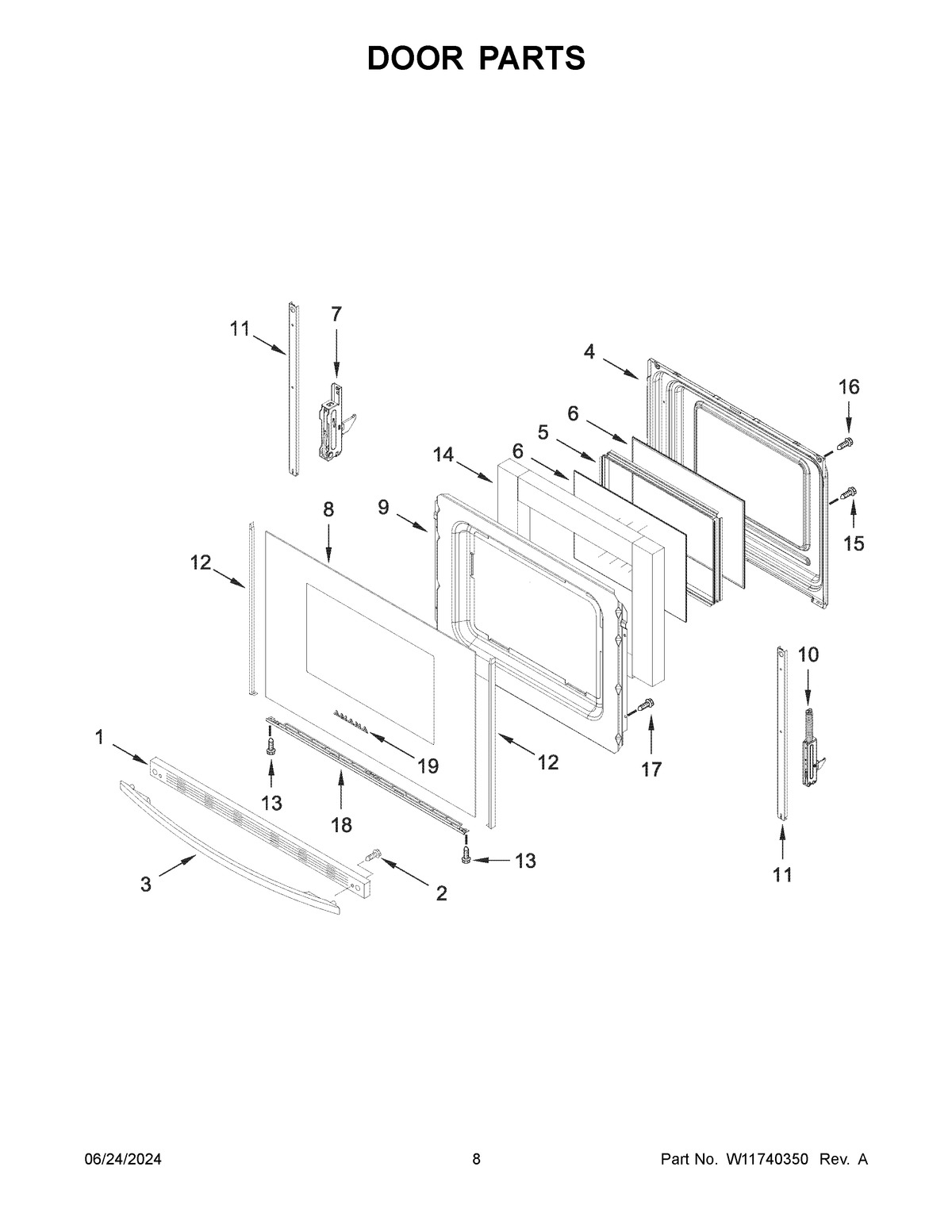

ACR4503SFB8 05 – DOOR PARTS

Products

Position	Product
1A	W10817433 Whirlpool Vent Trim
1	TRIM-VENT
2	W10817436 Whirlpool Screw
3	WPW10323589 Whirlpool Door Handle
3A	W10817434 Whirlpool Door Handle
4	WP9761344 Whirlpool Door Liner
5	WPW10316950 Whirlpool Window Frame
6	WP8053948 Whirlpool Door Glass
7	WPW10299227 Whirlpool Range Door Hinge
8	W10904907 Whirlpool Door Glass Assembly
8A	W10904906 Whirlpool Door Glass
9	W11539580 Whirlpool Retainer
10	WPW10299226 Whirlpool Door Hinge
11	W11502236 Whirlpool Door Trim
12	W10761018 Whirlpool Dishwasher Left Door Trim
12B	WP8523172 Whirlpool Left Door Trim
12C	WP8523166 Whirlpool Door Trim
12A	W10761014 Whirlpool Right Door Trim
13	WP355214 Whirlpool Screw
14	WPW10278991 Whirlpool Insulation
15	WPW10031790 Whirlpool Screw
16	WPW10200660 Whirlpool Range Oven Door Handle Screw
17	W10777162 Whirlpool Screw
18	W11569689 Whirlpool Door Trim
18A	W11594186 Whirlpool Door Trim
19A	W10849465 Whirlpool Nameplate
19	W10846751 Whirlpool Nameplate
