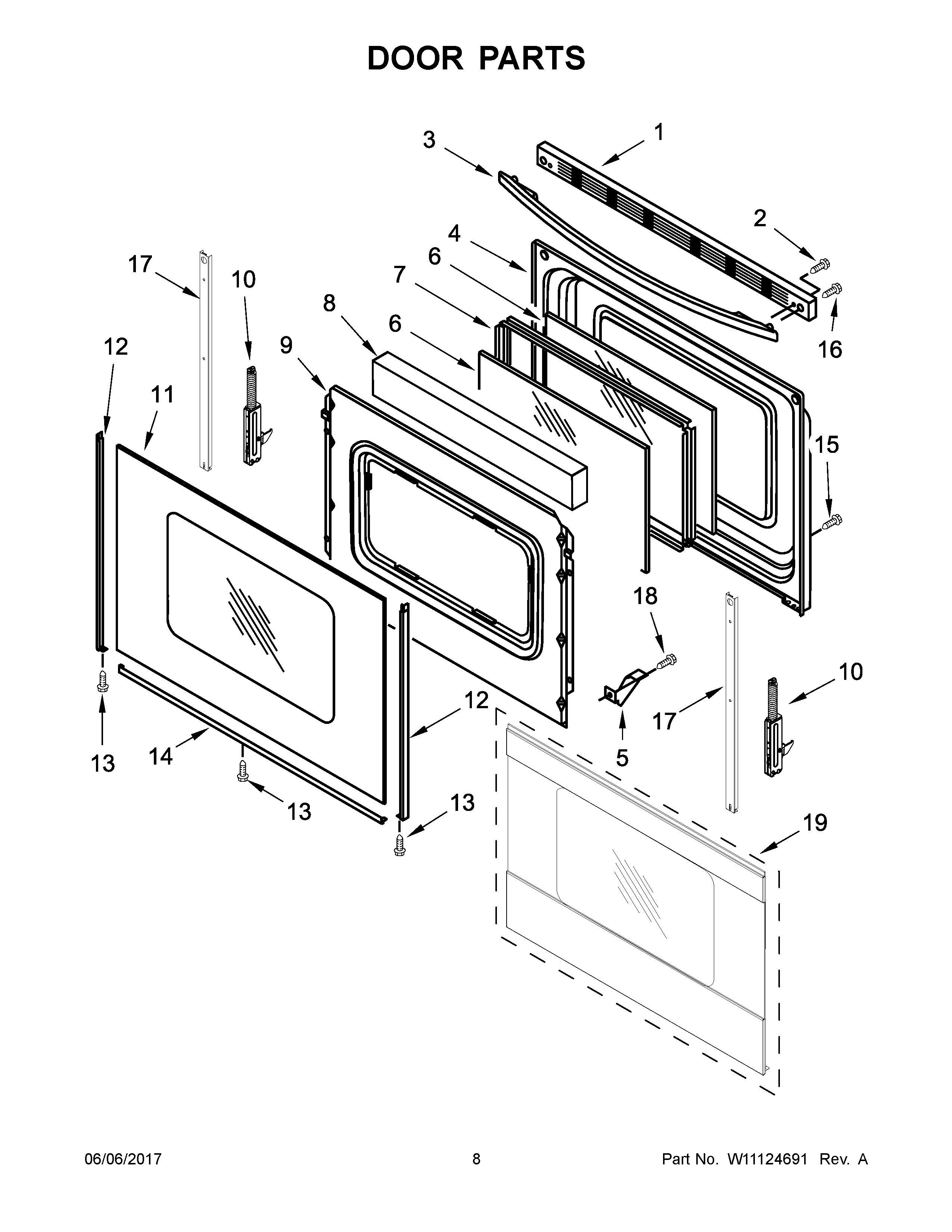

ACR4503SFS1 05 – DOOR PARTS

Products

Position	Product
1	TRIM, TOP (BLACK)
1A	TRIM, TOP (WHITE)
2	SCREW
3A	HANDLE, DOOR (WHITE)
3	HANDLE, DOOR (BLACK)
3B	HANDLE, DOOR (STAINLESS)
4	LINER, DOOR
5	CLIP, PANEL
6	GLASS, INNER
7	FRAME, GLASS
8	INSULATION, DOOR STRIP
9	RETAINER, INSULATION
10A	HINGE, DOOR (PASSIVE)
10	HINGE, ACTIVE (WITH SPRING)
11A	GLASS, OUTER (WHITE)
11	GLASS, OUTER (BLACK)
12A	TRIM, SIDE (BLACK (LEFT))
12	TRIM, SIDE (BLACK (RIGHT))
12C	TRIM, SIDE (WHITE (LEFT))
12B	TRIM, SIDE (WHITE (RIGHT))
13	SCREW
14A	TRIM, LOWER (WHITE)
14	TRIM, LOWER (BLACK)
15	SCREW
16	SCREW
17	STRAP, DOOR
18	SCREW
19	DOOR, OUTER GLASS ASSEMBLY (STAINLESS)
