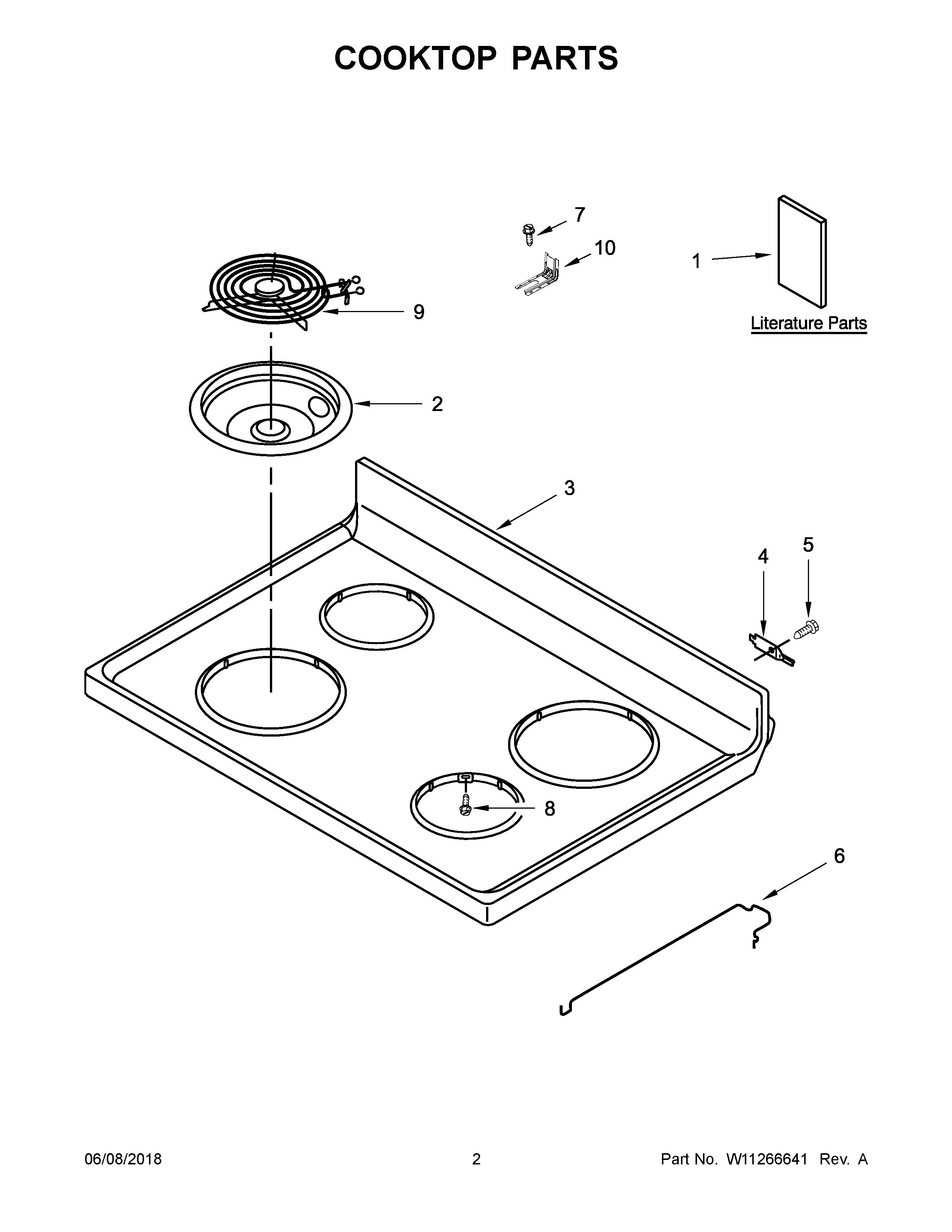

ACR4503SFS2 02 – COOKTOP PARTS

Products

PositionProduct
NIHARNESS, WIRE (SURFACE UNIT)
NILINER (NOT A SERVICEABLE PART)
NIHARNESS, WIRE (MAIN)
1ASHEET, TECH
1CINSTRUCTIONS, INSTALLATION
1MAY W11235905
1BMAY W11241248
1DTIPS, SAFE COOKING (ENGLISH)
2ABOWL, DRIP (8") (LEFT FRONT AND RIGHT REAR)
2BOWL, DRIP (6") (RIGHT FRONT AND LEFT REAR)
3COOKTOP (BLACK)
4HINGE, COOKTOP
5SCREW
6ROD, SUPPORT
7SCREW, ANTI-TIP KIT
8SCREW
9AELEMENT, COIL HEATING (2150W) (LEFT FRONT AND RIGHT REAR)
9ELEMENT, COIL HEATING (1300W) (RIGHT FRONT AND LEFT REAR)
10BRACKET, ANTI-TIP
