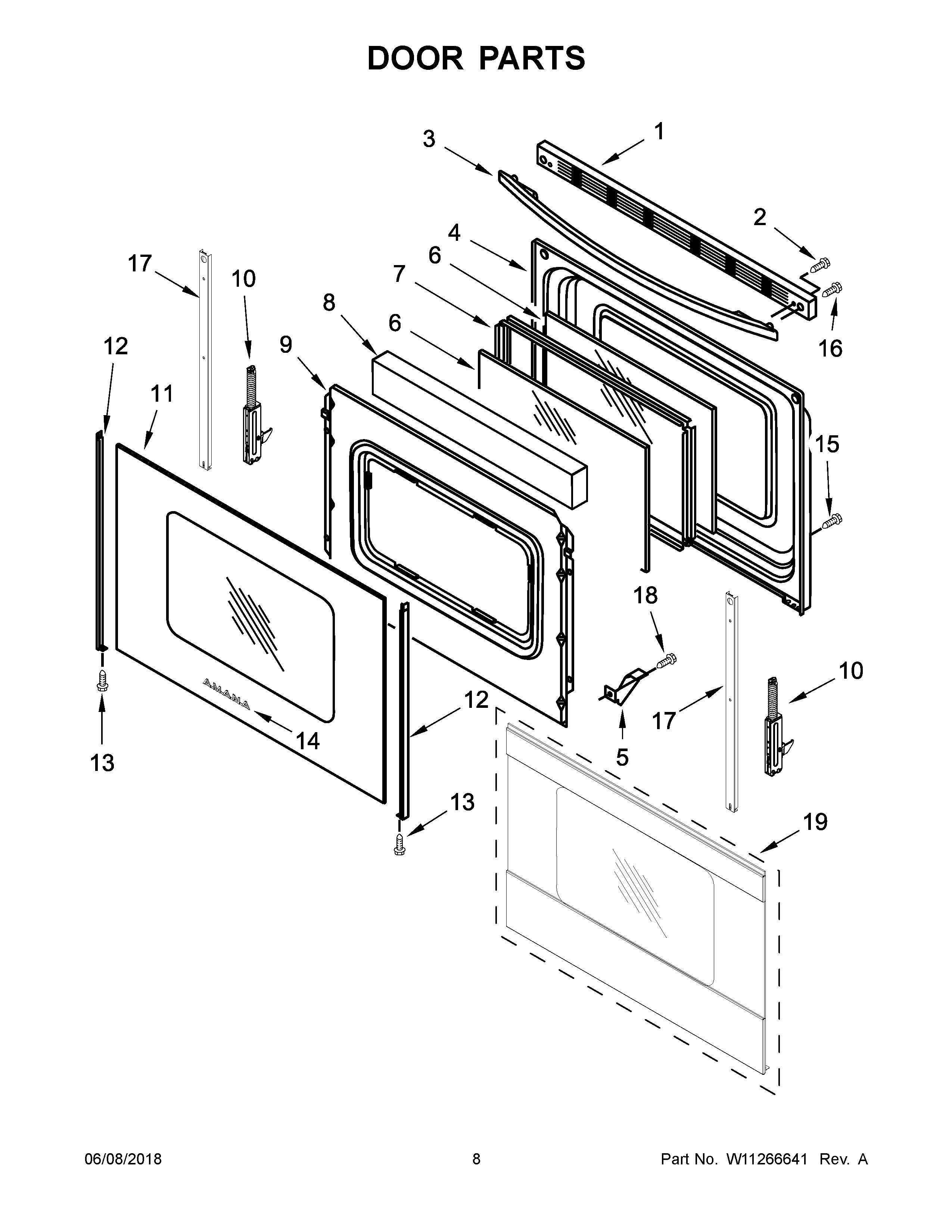

ACR4503SFS2 05 – DOOR PARTS

Products

Position	Product
1	TRIM, TOP (BLACK)
2	SCREW
3	HANDLE, DOOR (STAINLESS)
4	LINER, DOOR
5	CLIP, PANEL
6	GLASS, INNER
7	FRAME, GLASS
8	INSULATION, DOOR STRIP
9	RETAINER, INSULATION
10	HINGE, ACTIVE (WITH SPRING)
10A	HINGE, DOOR (PASSIVE)
11	GLASS, OUTER (BLACK)
12A	TRIM, SIDE (BLACK (LEFT))
12	TRIM, SIDE (BLACK (RIGHT))
13	SCREW
14	BADGE (STAINLESS)
15	SCREW
16	SCREW
17	STRAP, DOOR
18	SCREW
19	DOOR, OUTER GLASS ASSEMBLY (STAINLESS)
