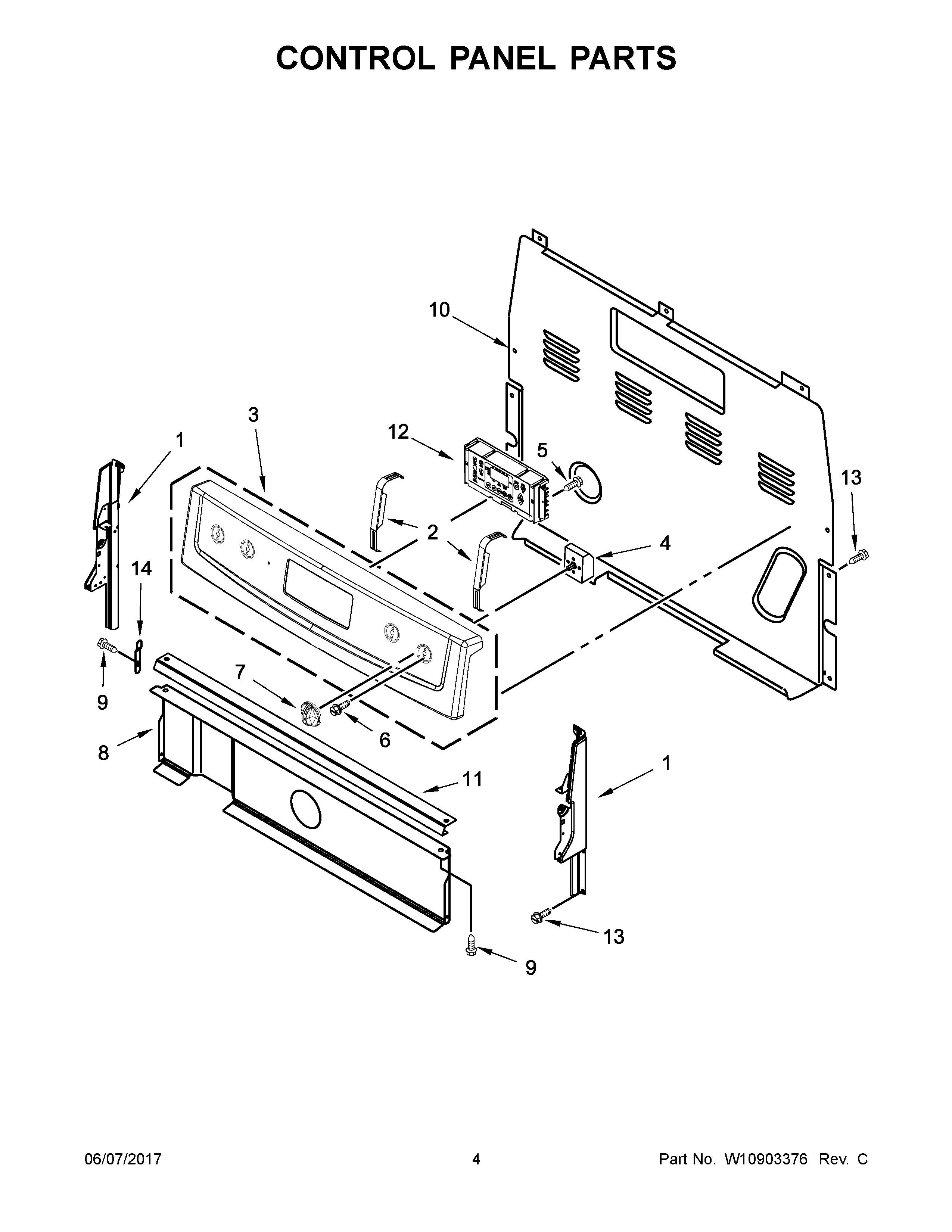

ACR4503SFW0 03 – CONTROL PANEL PARTS

Products

Position	Product
1	ENDCAP (BLACK (LEFT))
1B	ENDCAP (WHITE (LEFT))
1C	ENDCAP (WHITE (RIGHT))
1A	ENDCAP (BLACK (RIGHT))
2	BRACKET, CONTROL
3B	MAY W10833190
3A	PANEL, CONTROL (WHITE)
3	PANEL, CONTROL (BLACK)
4	SWITCH, INFINITE (GREEN) (LEFT FRONT AND RIGHT REAR)
4A	SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
5	SCREW
6	SCREW
7	KNOBS (BLACK)
7A	KNOBS (WHITE)
7B	KNOBS (STAINLESS)
8	SHIELD, HEAT
9	SCREW
10	COVER, UPPER REAR
11	BRACKET, CONSOLE MOUNTING
12	CONTROL (LCC95) (BLACK)
12A	CONTROL (LCC95) (WHITE)
13	SCREW
14	CLIP, SPRING
