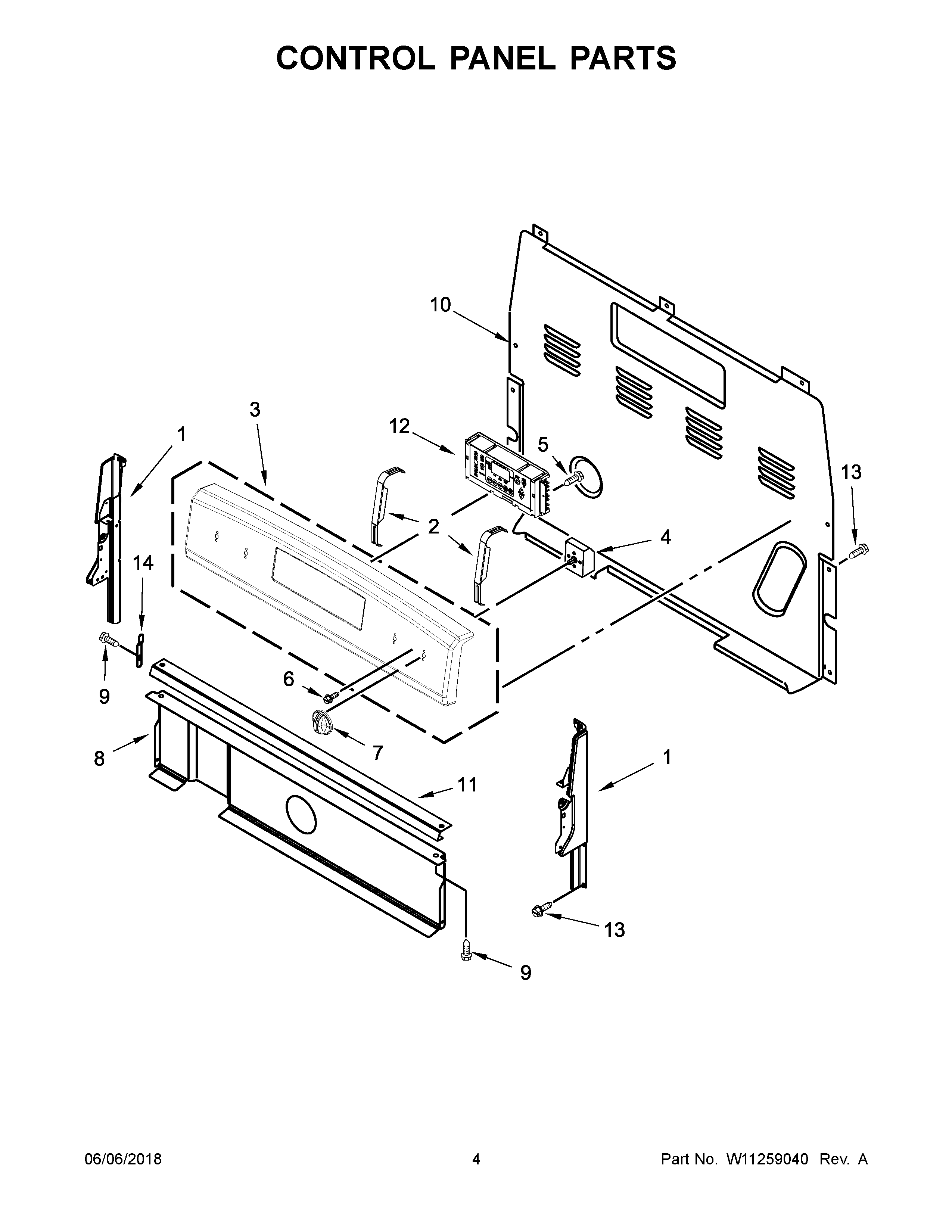

ACR4503SFW2 03 – CONTROL PANEL PARTS

Products

Position	Product
1C	ENDCAP (WHITE (RIGHT))
1B	ENDCAP (WHITE (LEFT))
1A	ENDCAP (BLACK (RIGHT))
1	ENDCAP (BLACK (LEFT))
2	BRACKET, CONTROL
3	MAY W11157013
3A	PANEL, CONTROL (WHITE)
4	SWITCH, INFINITE (GREEN) (LEFT FRONT AND RIGHT REAR)
4A	SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
5	SCREW
6	SCREW
7A	KNOBS (WHITE)
7	KNOBS (BLACK)
8	SHIELD, HEAT
9	SCREW
10	COVER, UPPER REAR
11	BRACKET, CONSOLE MOUNTING
12A	CONTROL (LCC95) (WHITE)
12	CONTROL (LCC95) (BLACK)
13	SCREW
14	CLIP, SPRING
