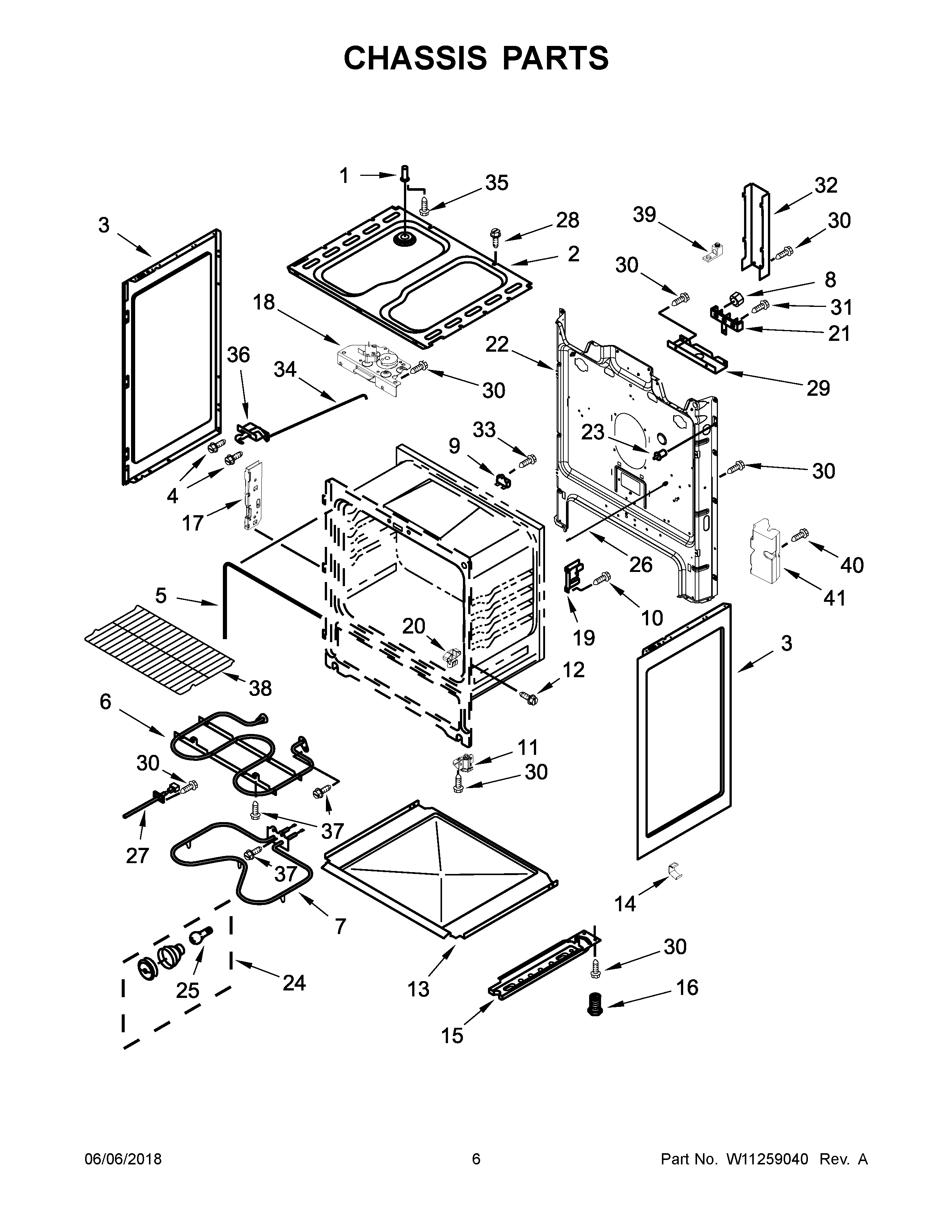

ACR4503SFW2 04 – CHASSIS PARTS

Products

Position	Product
NI	INSULATION, BACK
NI	LINER (NOT A SERVICEABLE PART)
NI	INSULATION, WRAP
1	VENT TUBE
2	BOX, BURNER
3A	PANEL, SIDE (WHITE)
3	PANEL, SIDE (BLACK)
4	SCREW
5	SEAL, DOOR
6	ELEMENT, BROIL
7	ELEMENT, BAKE
8	SCREW
9	FUSE, THERMAL
10	SCREW
11	ASSEMBLY, FRONT FOOT
12	SCREW
13	RETAINER, INSULATION
14	CLIP, PANEL
15A	ASSEMBLY, BASE RAIL (RIGHT)
15	ASSEMBLY, BASE RAIL (LEFT)
16	FOOT, LEVELING
17	RECEIVER, HINGE
18	ASSEMBLY, DOOR LATCH (REAR)
19	CLIP, OVEN SUPPORT
20	GLIDE, DRAWER FRONT
21	BLOCK, TERMINAL
22	BACK, MAIN
23	SWITCH, DOOR
24	ASSEMBLY, LIGHT
25	BULB, OVEN LIGHT
26	ROD, DOOR SWITCH
27	SENSOR, OVEN
28	SCREW
29	BRACKET, SERVICE
30	SCREW
31	SCREW
32	COVER, TERMINAL BLOCK
33	SCREW
34	ROD, LATCH
35	SCREW
36	ASSEMBLY, DOOR LATCH (FRONT)
37	SCREW
38	RACK, OVEN
39	KIT, BARE WIRE ADAPTER BLOCK
40	SCREW
41	COUNTERWEIGHT
