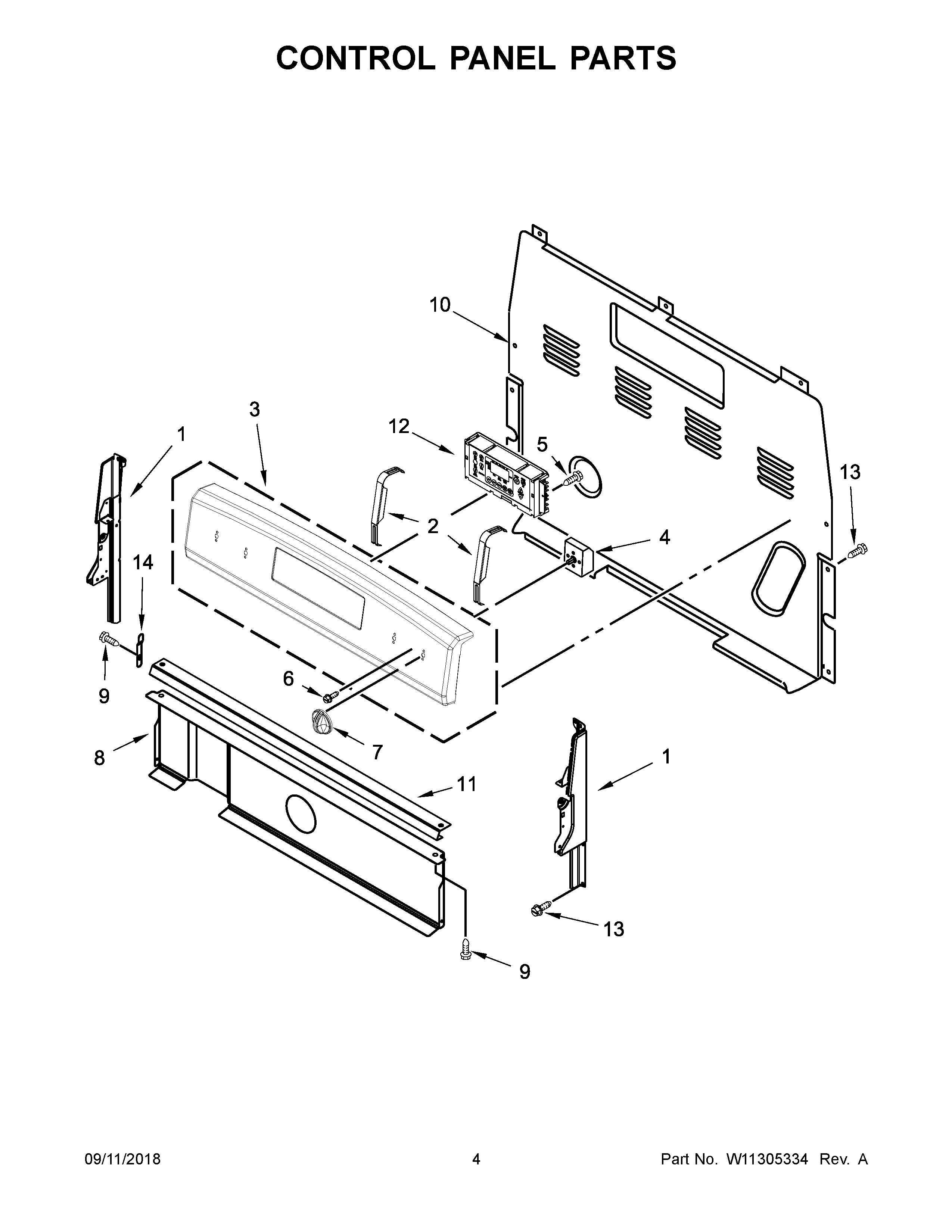

ACR4503SFW3 03 – CONTROL PANEL PARTS

Products

PositionProduct
1BENDCAP (WHITE (LEFT))
1AENDCAP (BLACK (RIGHT))
1ENDCAP (BLACK (LEFT))
1CENDCAP (WHITE (RIGHT))
2BRACKET, CONTROL
3APANEL, CONTROL (WHITE)
3MAY W11157013
4SWITCH, INFINITE (GREEN) (LEFT FRONT AND RIGHT REAR)
4ASWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
5SCREW
6SCREW
7KNOBS (BLACK)
7AKNOBS (WHITE)
8SHIELD, HEAT
9SCREW
10COVER, UPPER REAR
11BRACKET, CONSOLE MOUNTING
12CONTROL, ELECTRONIC (LCX) (BLACK)
12ACONTROL (LCC95) (WHITE)
13SCREW
14CLIP, SPRING
