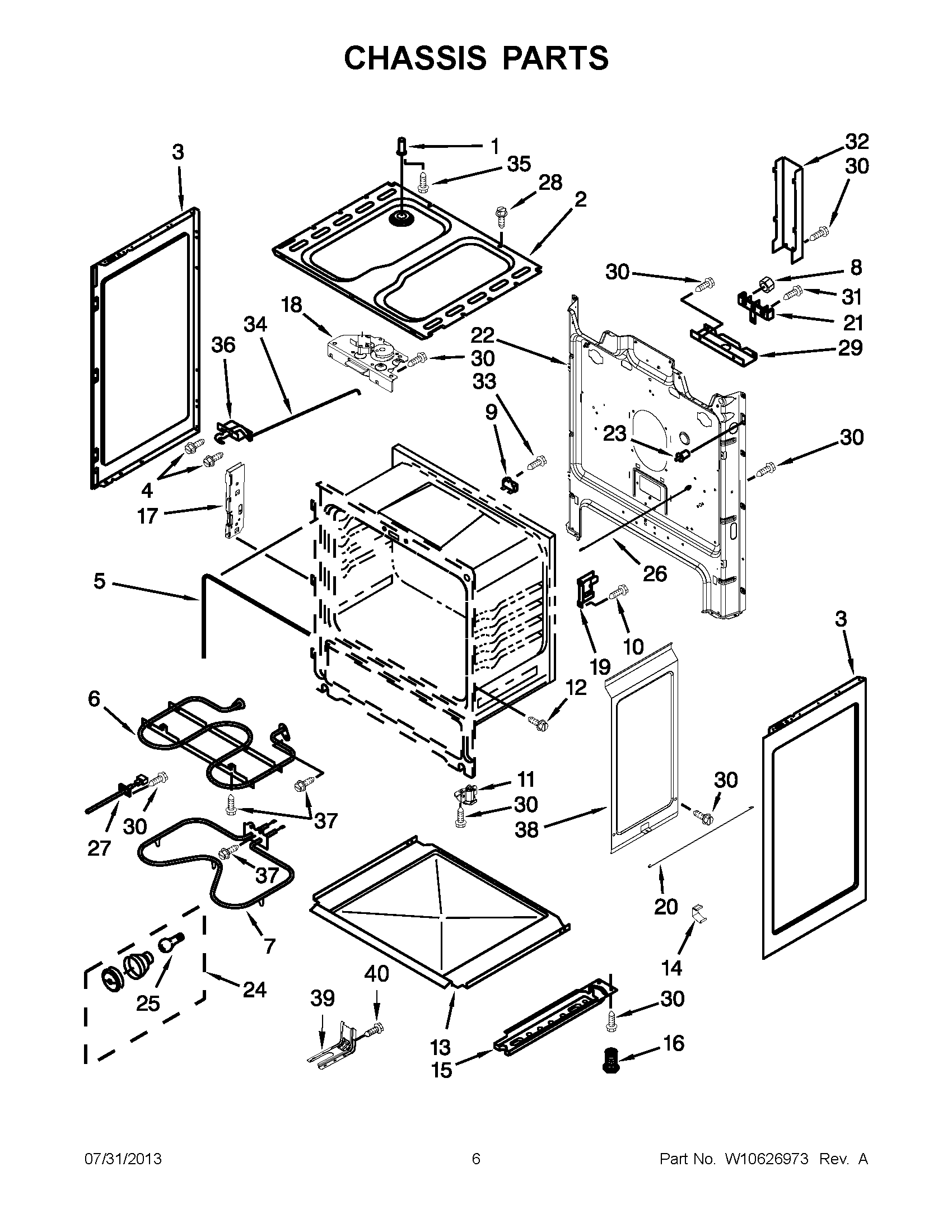

ACR4530BAB0 03 – CHASSIS PARTS

Products

PositionProduct
NIMAY W10208653
NIINSULATION, BACK
1VENT TUBE
2BOX, BURNER
3MAY W10322770
3MAY W10322769
4SCREW
5MAY 8522416
6ELEMENT, BROIL
7ELEMENT, BAKE
8WP7103P027-60 Whirlpool Nut
9FUSE, THERMAL
10SCREW
11ASSEMBLY, FRONT FOOT
12SCREW
13RETAINER, INSULATION
14CLIP, PANEL
15ASSEMBLY, BASE RAIL (RIGHT)
15ASSEMBLY, BASE RAIL (LEFT)
16FOOT, LEVELING
17RECEIVER, HINGE
18ASSEMBLY, DOOR LATCH (REAR)
19CLIP, OVEN SUPPORT
20MAY W10465685
21BLOCK, TERMINAL
22BACK, MAIN
23MAY 9757262
24ASSEMBLY, LIGHT
25BULB, OVEN LIGHT
26ROD, DOOR SWITCH
27SENSOR, OVEN
28SCREW
29BRACKET, SERVICE
30SCREW
31SCREW
32COVER, TERMINAL BLOCK
33SCREW
34ROD, LATCH
35SCREW
36ASSEMBLY, DOOR LATCH (FRONT)
37SCREW
38MAY W10450380
39BRACKET, ANTI-TIP
40SCREW, ANTI-TIP KIT
