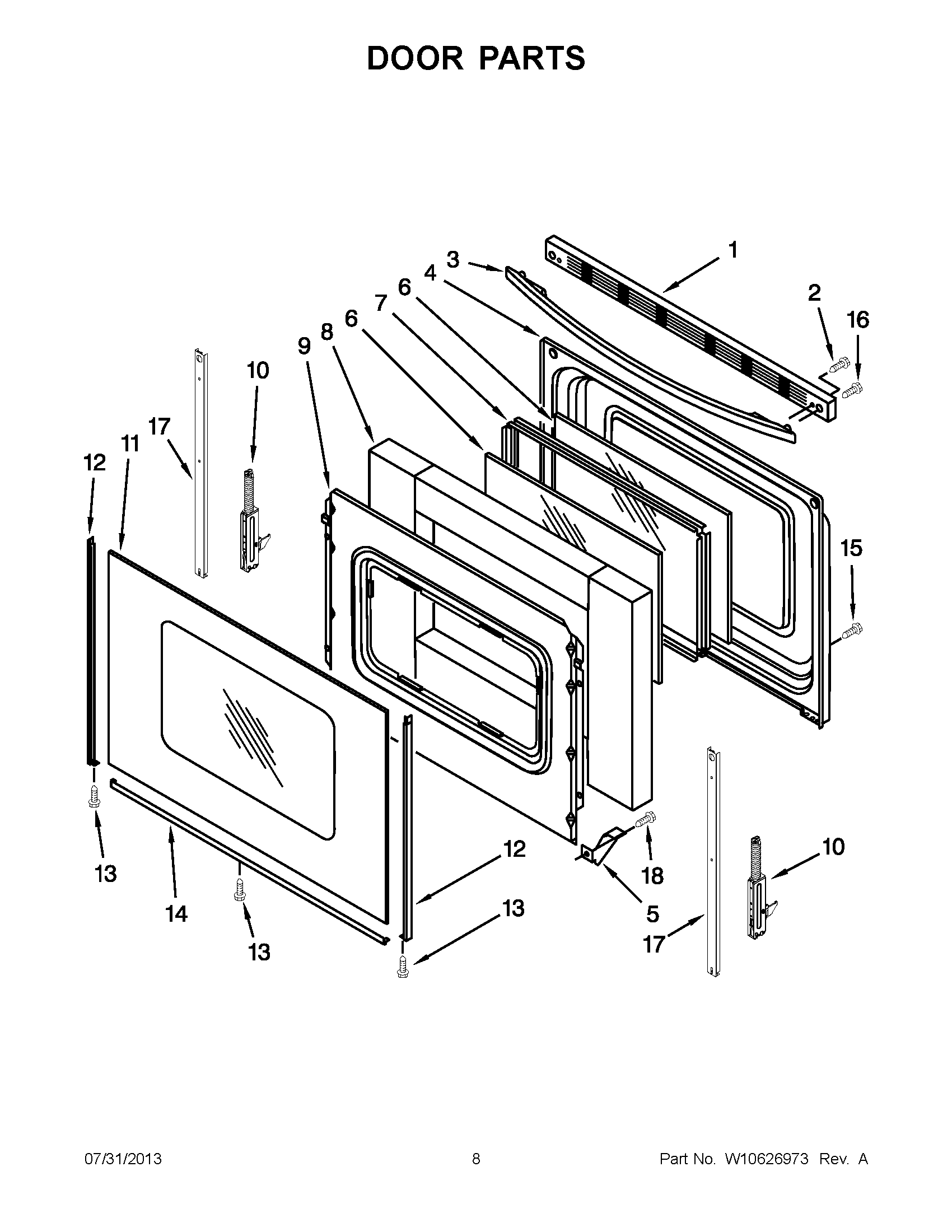

ACR4530BAB0 04 – DOOR PARTS

Products

Position	Product
1	TRIM, TOP (BLACK)
1	TRIM, TOP (WHITE)
2	SCREW
3	HANDLE, DOOR (BLACK)
3	HANDLE, DOOR (STAINLESS)
3	HANDLE, DOOR (WHITE)
4	LINER-DOOR
5	CLIP, PANEL
6	GLASS, INNER
7	FRAME, GLASS
8	INSULATION, DOOR STRIP
9	MAY 9761499
10	HINGE, ACTIVE (WITH SPRING)
10	HINGE, DOOR (PASSIVE)
11	GLASS, OUTER
11	GLASS, OUTER (BLACK)
12	TRIM, SIDE (BLACK, RIGHT HAND)
12	TRIM, SIDE (WHITE (RIGHT))
12	TRIM, SIDE (BLACK, LEFT HAND)
12	TRIM, SIDE (WHITE (LEFT))
13	MAY 3196160
14	TRIM, LOWER (BLACK)
14	TRIM, LOWER (WHITE)
15	SCREW
16	SCREW
17	STRAP, DOOR
18	SCREW
