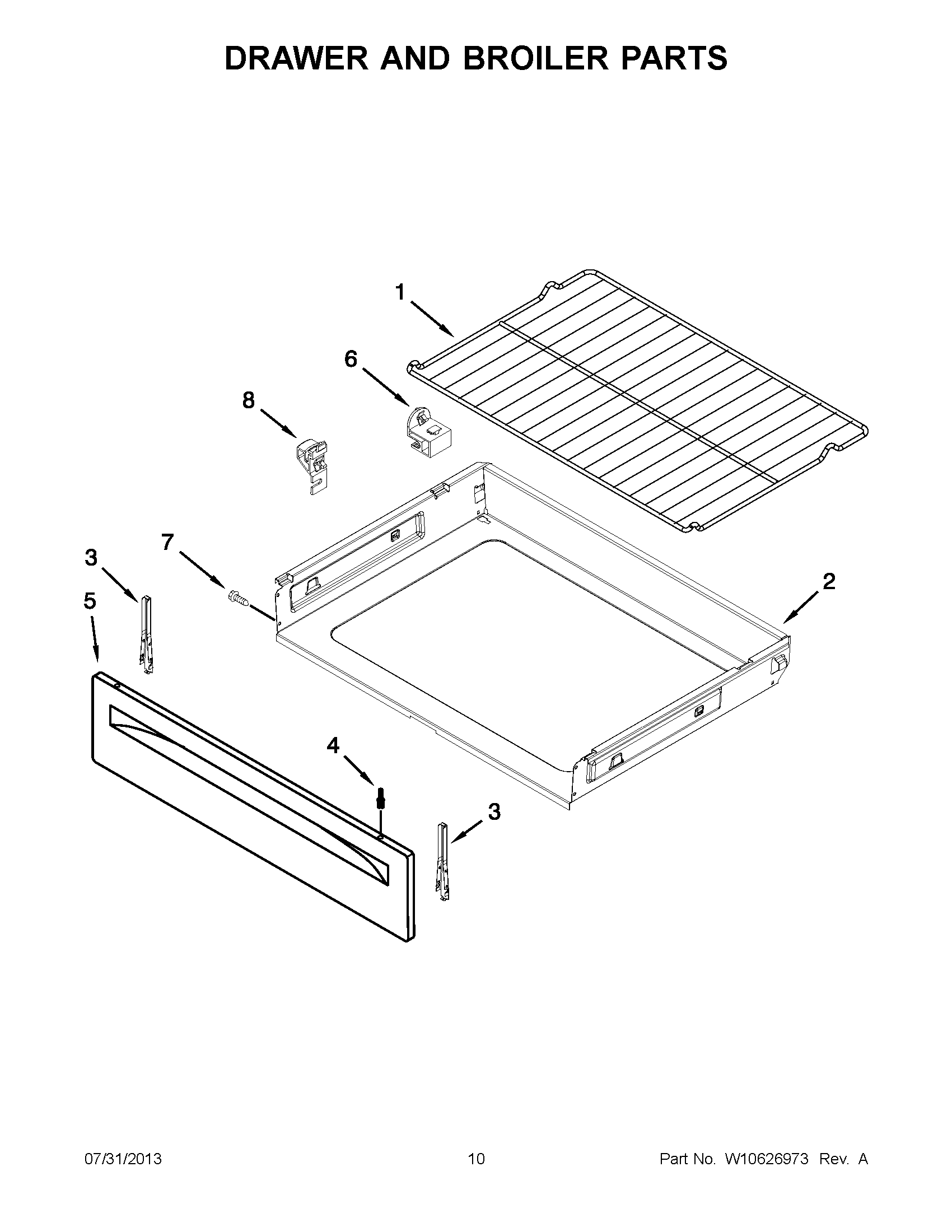

ACR4530BAB0 05 – DRAWER AND BROILER PARTS

Products

PositionProduct
1RACK, OVEN
2MAY W10300032
3BRACKET, MOUNTING DRAWER
4RIVET, PUSH (BLACK)
4RIVET, PUSH (WHITE)
5PANEL, DRAWER FRONT (WHITE)
5PANEL, DRAWER FRONT (BLACK)
6GLIDE, REAR DRAWER
7SCREW
8GLIDE, DRAWER
