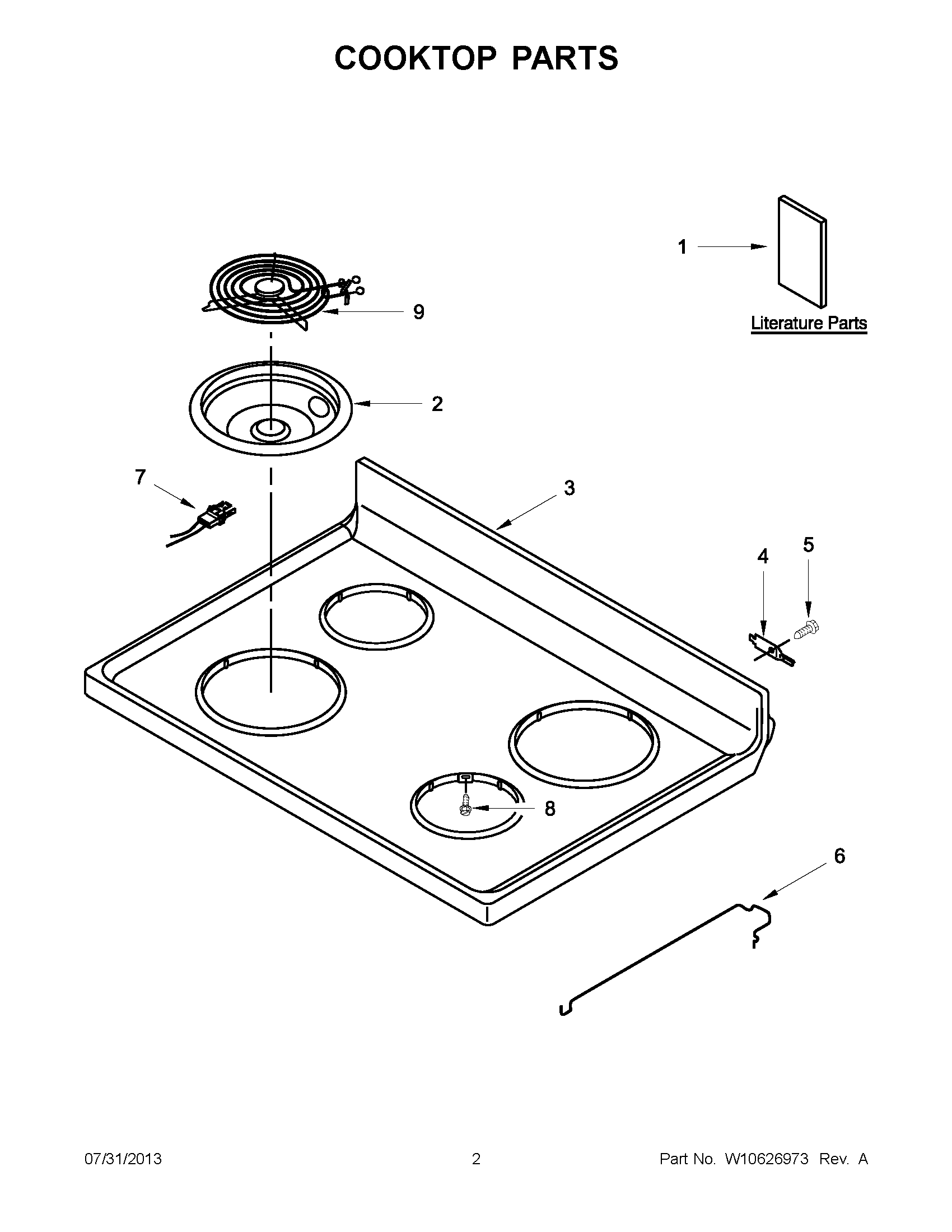

ACR4530BAW0 01 – COOKTOP PARTS

Products

Position	Product
1	TIPS, SAFE COOKING (ENGLISH)
1	SHEET, TECH (ENGLISH)
1	MAY W10572534
1	MAY W10403811
2	BOWL, DRIP (6") (RIGHT FRONT AND LEFT REAR)
2	BOWL, DRIP (8") (LEFT FRONT AND RIGHT REAR)
3	COOKTOP (WHITE)
3	COOKTOP (BLACK)
4	HINGE, COOKTOP
5	SCREW
6	ROD, SUPPORT
7	MAY 9760411
8	SCREW
9	ELEMENT, SURFACE (8") (LEFT FRONT AND RIGHT REAR)
9	ELEMENT, SURFACE (6") (RIGHT FRONT AND LEFT REAR)
