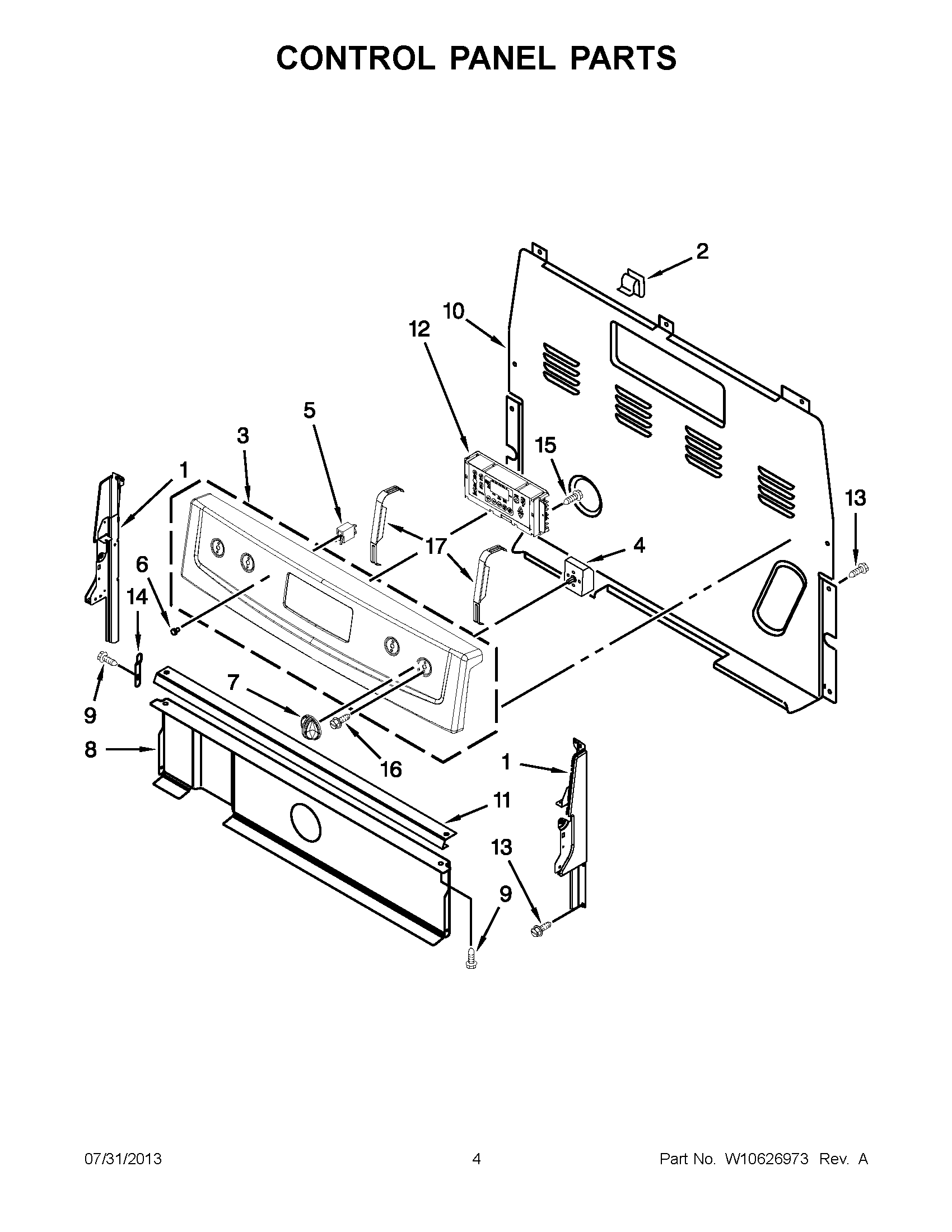

ACR4530BAW0 02 – CONTROL PANEL PARTS

ACR4530BAW0 02 – CONTROL PANEL PARTS

Written by

in

ACR4530BAW0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1ENDCAP (BLACK (LEFT))
1ENDCAP (WHITE (RIGHT))
1ENDCAP (WHITE (LEFT))
1ENDCAP (BLACK (RIGHT))
2MAY 8273564
3MAY W10572560
3MAY W10572562
4SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
4SWITCH, INFINITE (GREEN) (LEFT FRONT AND RIGHT REAR)
5MAY 8523265
6MAY 3196068
7KNOB, INFINITE (WHITE)
7KNOB, INFINITE (BLACK)
8SHIELD, HEAT
9SCREW
10COVER, UPPER REAR
11BRACKET, CONSOLE MOUNTING
12MAY W10572535
12MAY W10572536
13SCREW
14CLIP, SPRING
15SCREW
16SCREW
17MAY W10324410
