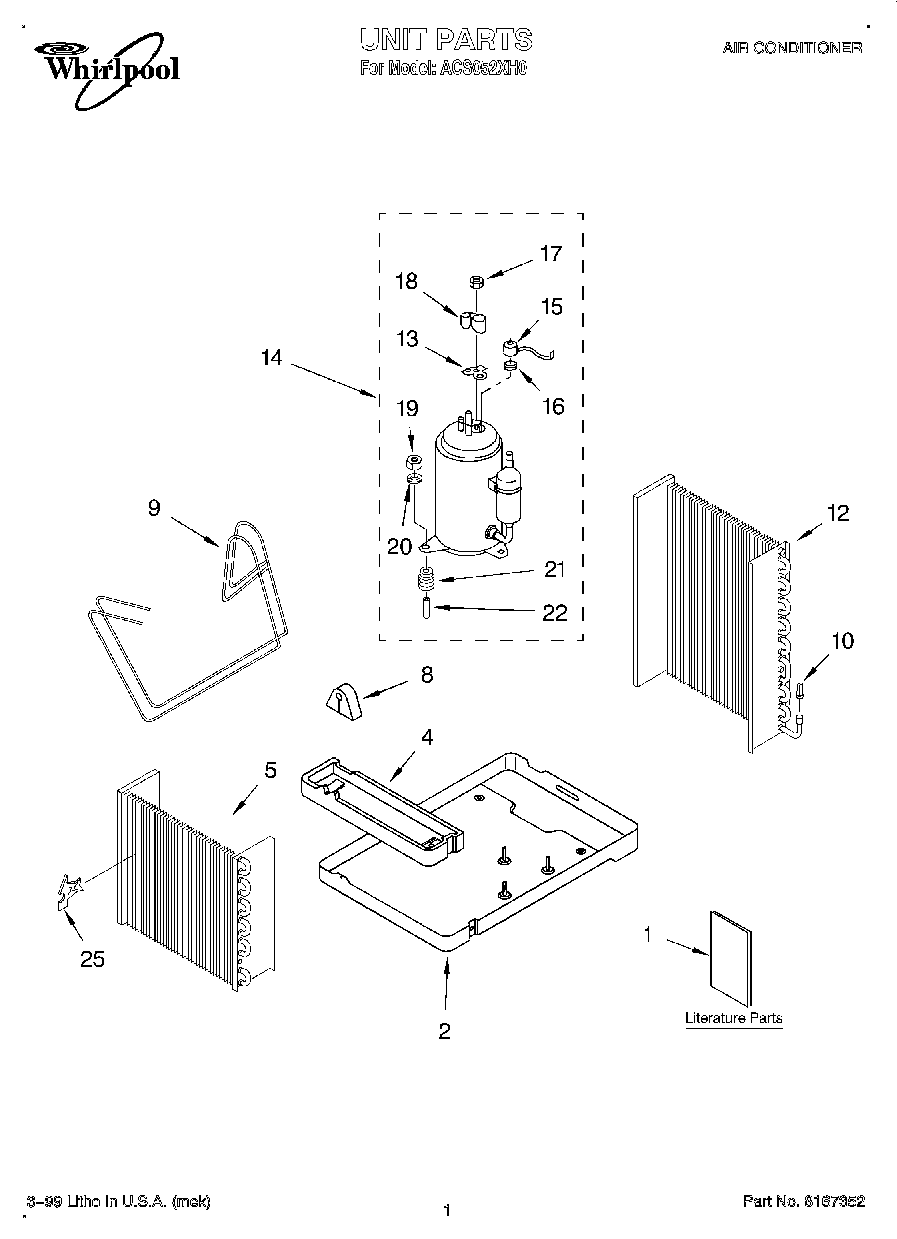

ACS052XH0 01 – UNIT, LITERATURE

Products

PositionProduct
1Use & Care Guide
1LITERATURE PARTS (Tech Sheet)
2Base
4Pan, Drain (Evaporator)
5Evaporator
8Grommet, Tube
9Tube, Restrictor .042 I.D. x 20“
10Strainer
12Condenser
13WP950035 Whirlpool Cover Gasket
14Compressor
15Overload
16Spring, Overload
17Nut, Terminal Cover
18Cover, Terminal
19Nut
20W11236646 Whirlpool Washer Assembly
21Grommet
22Sleeve
25Clip, Thermostat Bulb
