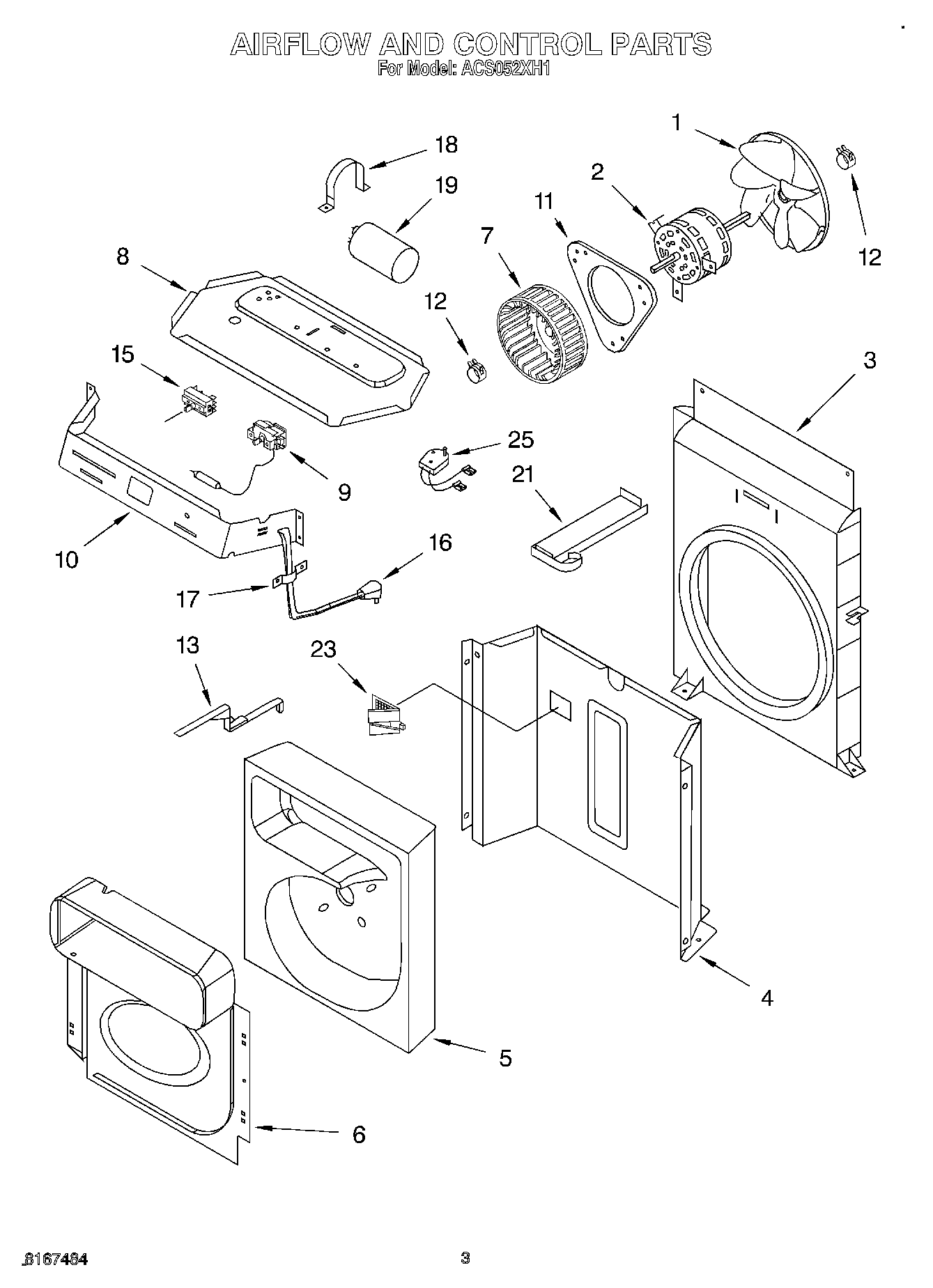

ACS052XH1 02 – AIR FLOW AND CONTROLadmin2025-04-26T10:47:12+00:00ACS052XH1 02 – AIR FLOW AND CONTROL
Products
| Position | Product |
|---|
| 1 | Blade, Fan |
| 2 | Motor, Fan |
| 3 | Shroud, Condenser |
| 4 | Wall, Dividing |
| 5 | Housing, Blower |
| 6 | Shroud, Evaporator (Includes Insul.) |
| 7 | Wheel, Blower |
| 8 | Panel, Control (Bottom) |
| 9 | Thermostat |
| 10 | Panel, Control |
| 11 | Plate, Motor Mounting |
| 12 | Clamp |
| 13 | Actuator, Exhaust Door |
| 15 | Switch, Rotary |
| 16 | Cord, Power |
| 17 | Relief, Strain |
| 18 | Strap, Capacitor |
| 19 | Capacitor |
| 21 | Support, Unit |
| 23 | Door, Exhaust |
| 25 | Assist, Start |
