ACS072XE0 01 – UNIT, LITERATURE

Products

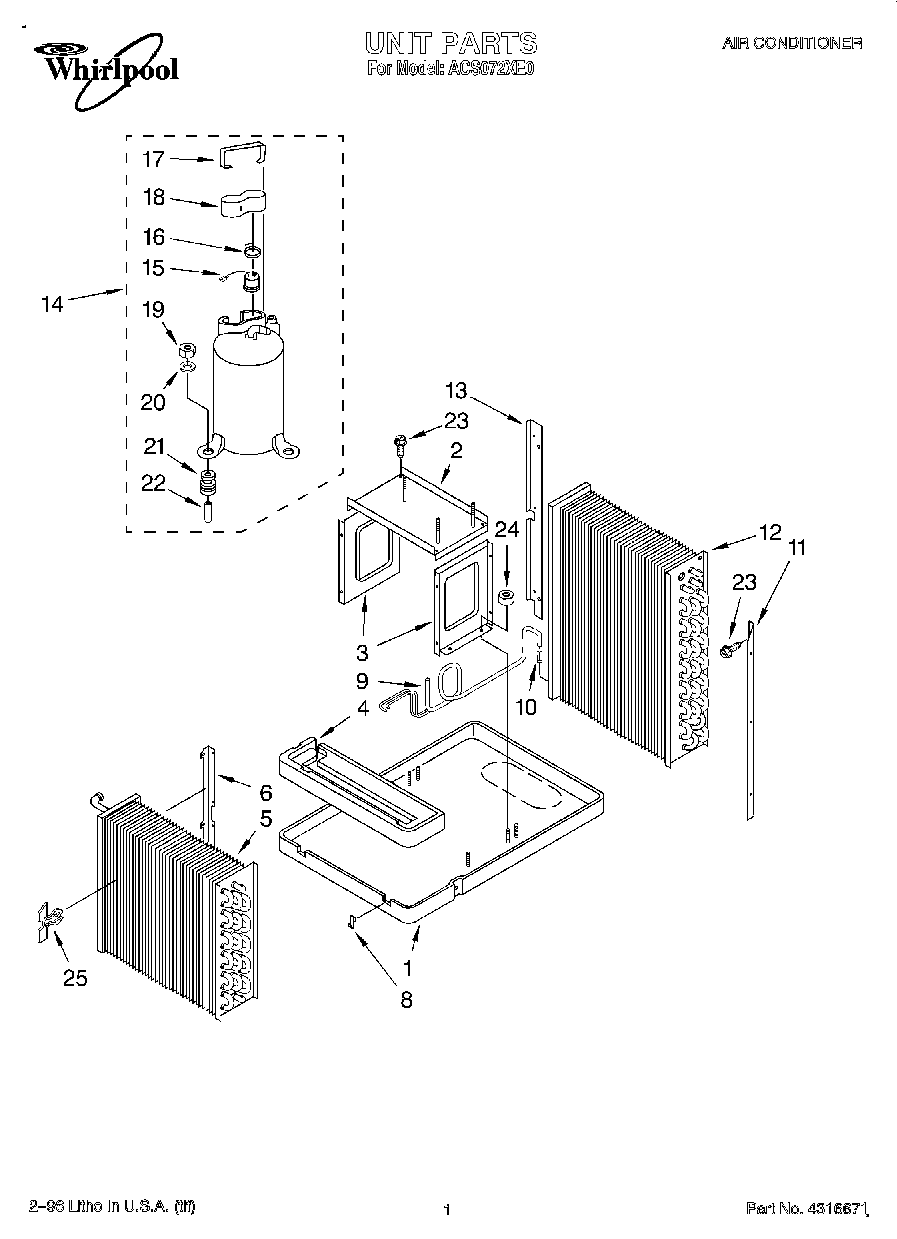

PositionProduct
Use and Care Guide
Tech Sheet
1Base
2Bracket, Comp. Mounting
3Support, Bracket (2)
4Pan, Drain (Evaporator)
5Evaporator
6Bracket, Baffle (Evaporator)
8Clip, Front Retainer
9Tube, Restrictor .036 ID x 18“ (2)
10Strainer
11Baffle, Condenser
12Condenser
13Bracket, Condenser Shroud
14Compressor
15Overload
16Spring, Overload
17Retainer, Terminal Cover
18Cover, Terminal
19Nut
20Washer
21Grommet
22Sleeve
234389654 Whirlpool Screw
24Nut, 1/4-20 Lock
25Clip, Thermostat Bulb
