ACS072XG0 01 – UNIT, LITERATURE

Products

Position	Product
	Use and Care Guide

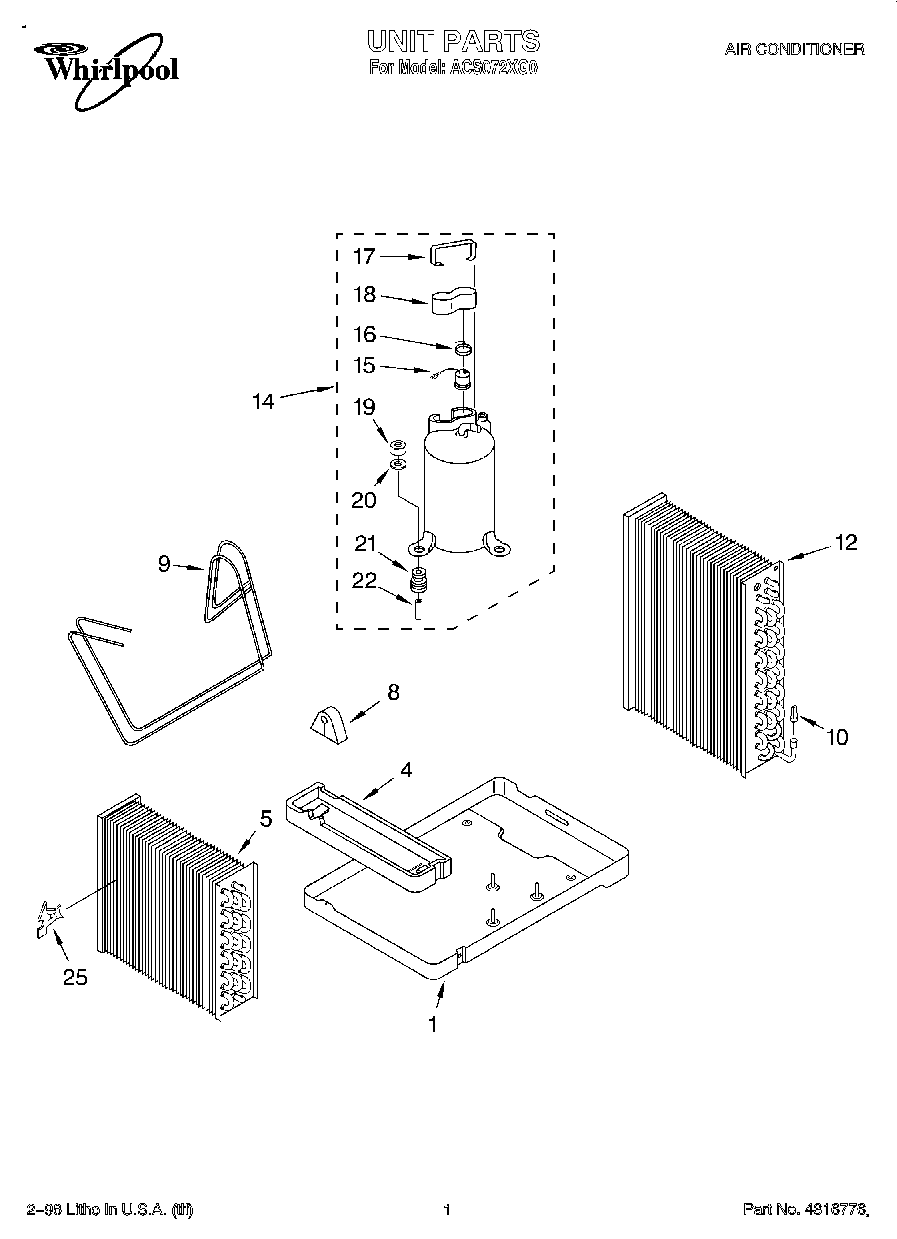

	LITERATURE PARTS (Tech Sheet)
1	Base
4	Pan, Drain (Evaporator)
5	Evaporator
8	Grommet, Tube
9	Tube, Restrictor .049 I.D. x 25“
10	Strainer
12	Condenser
14	Compressor
15	Overload
16	Spring, Overload
17	Retainer, Terminal Cover
18	Cover, Terminal
19	Nut
20	W11236646 Whirlpool Washer Assembly
21	Grommet
22	Sleeve
25	Clip, Thermostat Bulb
