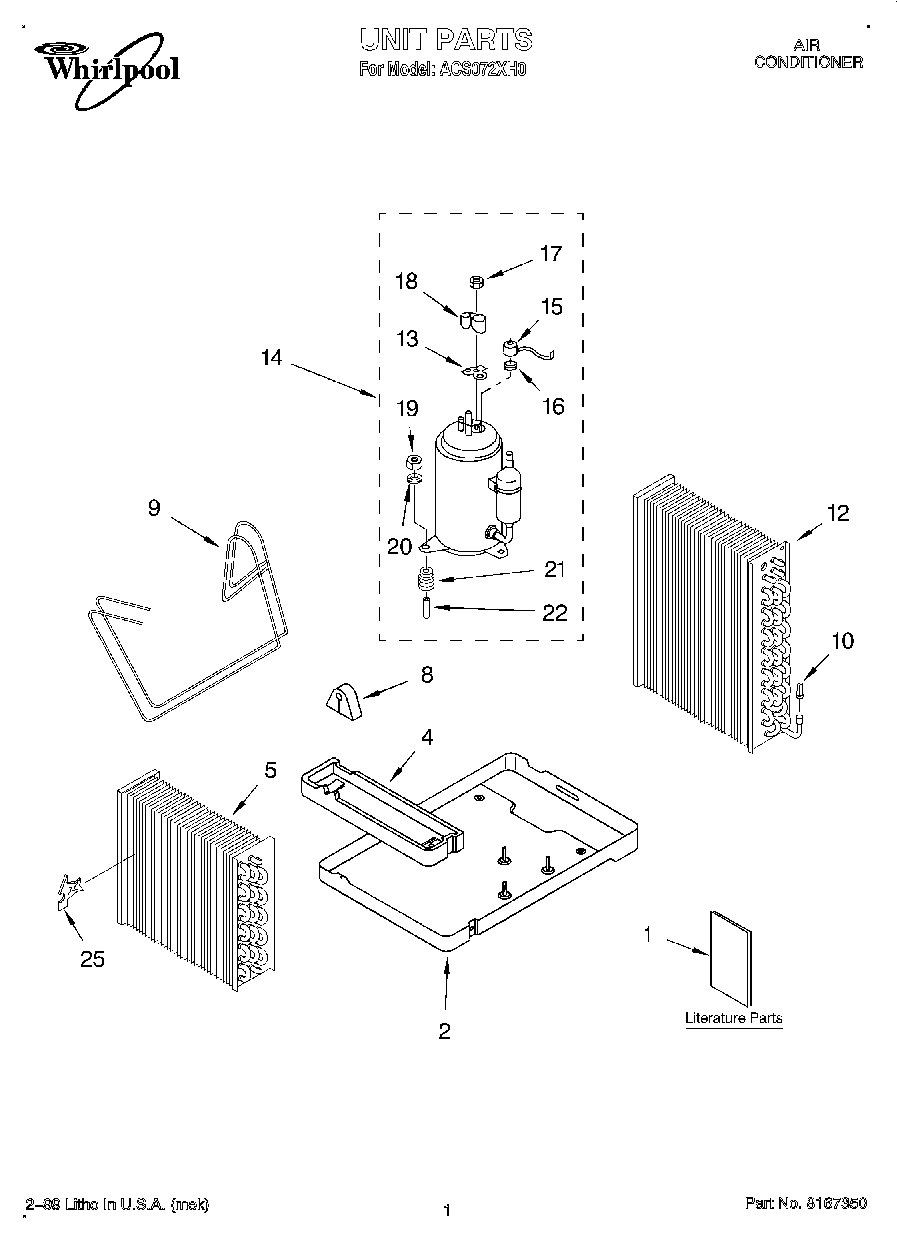

ACS072XH0 01 – UNIT, LITERATURE – Aparts

ACS072XH0 01 – UNIT, LITERATURE

Products

Position	Product
1	Use & Care Guide
1	LITERATURE PARTS (Tech Sheet)
2	Base
4	Pan, Drain (Evaporator)
5	Evaporator
8	Grommet, Tube
9	Tube, Restrictor .049 I.D. x 25``
10	Strainer
12	Condenser
13	WP950035 Whirlpool Cover Gasket
14	Compressor
15	Overload
16	Spring, Overload
17	Nut, Terminal Cover
18	Condenser
19	Nut, 1/4-20 Lock
20	W11236646 Whirlpool Washer Assembly
21	Grommet
22	Sleeve
25	Clip, Thermostat Bulb
