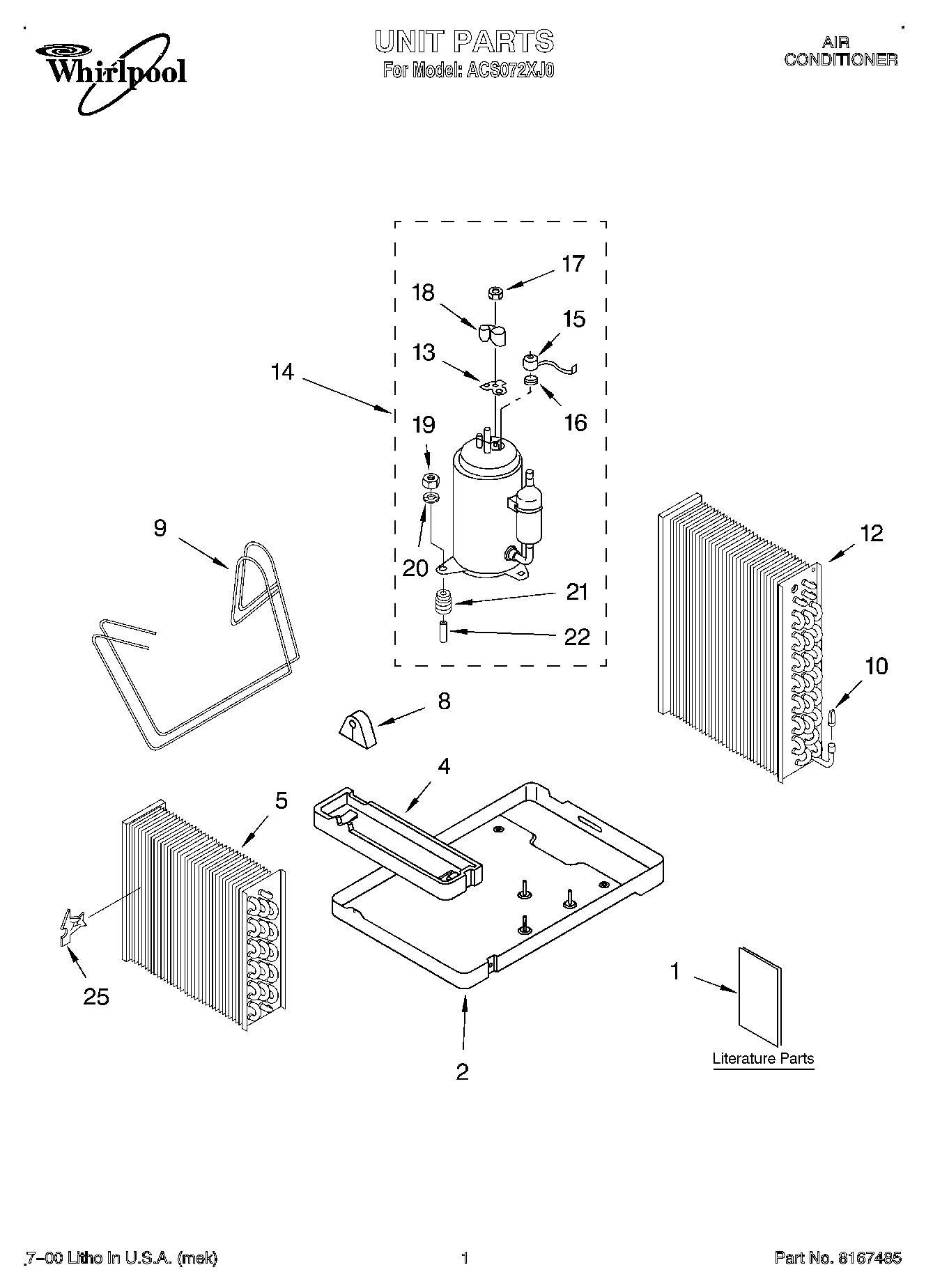

ACS072XJ0 01 – UNIT, LITERATURE

Products

Position	Product
1	LITERATURE PARTS (Use and Care Guide)
2	Base
4	Pan, Drain (Evaporator)
5	Evaporator
8	Grommet, Tube
9	Tube, Restrictor .049 I.D. x 25“
10	Strainer
12	Condenser
13	WP950035 Whirlpool Cover Gasket
14	Compressor
15	Overload
16	Spring, Overload
17	Nut, Terminal Cover
18	Condenser
19	Nut
20	W11236646 Whirlpool Washer Assembly
21	Grommet
22	Sleeve
25	Clip, Thermostat Bulb
