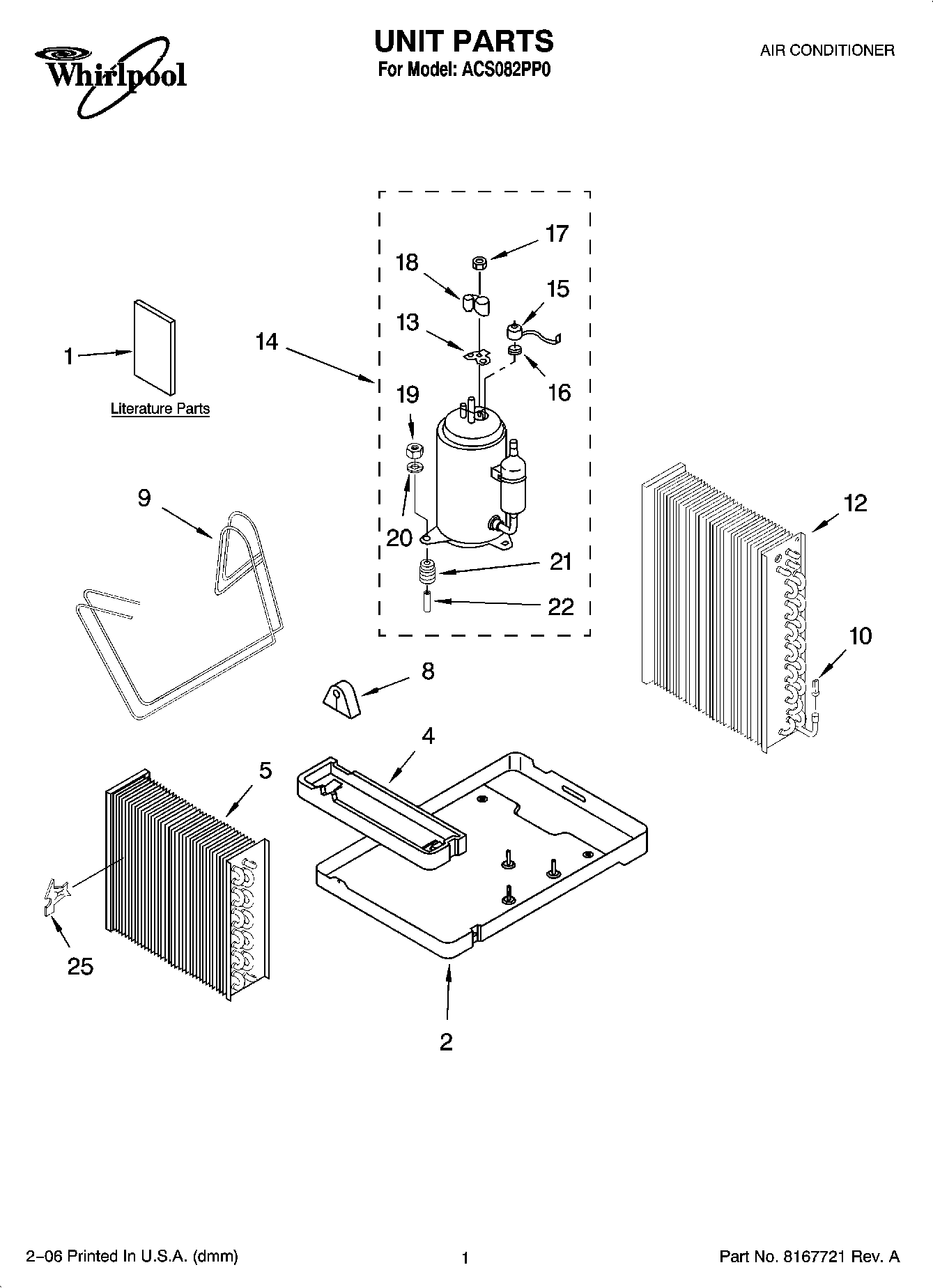

ACS082PP0 01 – UNIT PARTS

Products

Position	Product
1	Literature Parts (Use and Care Guide)
2	BASE
4	Pan, Drain (Evaporator)
5	Evaporator
8	Grommet, Tube
9	Tube, Restrictor .036 ID x 18“ (2)
10	Strainer
12	Condenser
13	WP950035 Whirlpool Cover Gasket
14	Compressor
15	Overload
16	Spring, Overload
17	Nut, Terminal Cover
18	Cover, Terminal
19	Nut
20	W11236646 Whirlpool Washer Assembly
21	Grommet
22	Sleeve
25	Clip, Thermistor
25	REFRIGERANT CHARGE 15.00 oz.
