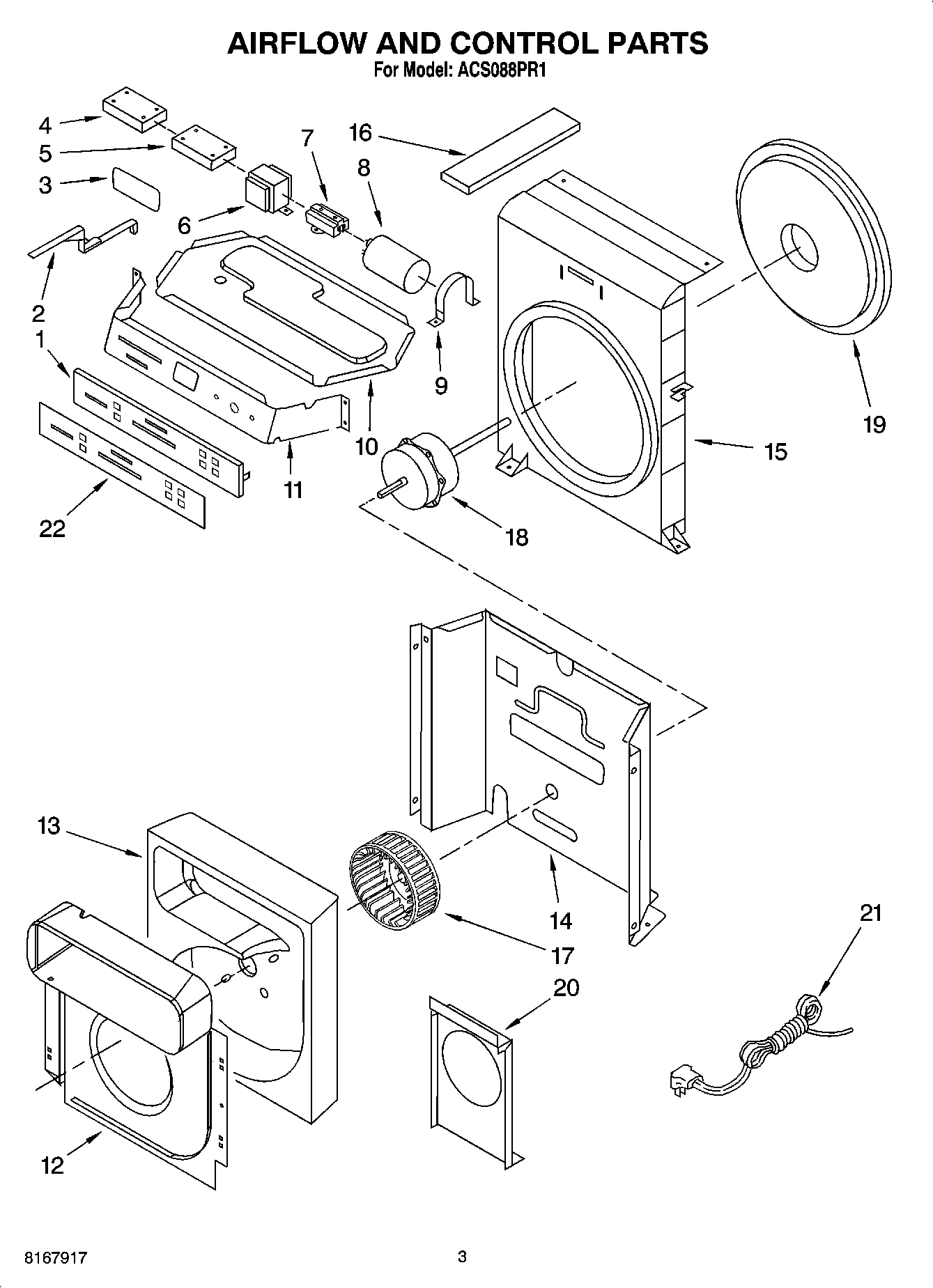

ACS088PR1 02 – AIR FLOW AND CONTROL PARTS

Products

Position	Product
1	Touch Pad Assembly
2	Actuator, Exhaust Door
3	Door, Exhaust
4	PC-Board, Control
5	PC-Board, Power- Supply
6	Transformer
7	Capacitor, Fan- Motor
8	Capacitor, Compressor
9	Strap, Capacitor
10	Panel Control, Bottom
11	Panel, Control
12	Shroud, Evaporator
13	Housing, Blower
14	Wall, Dividing
15	Shroud, Condenser
16	Support, Unit
17	Wheel, Blower
18	Motor, Fan
19	Blade, Fan
20	Plate, Motor Mounting
21	Cord, Power
22	Overlay
