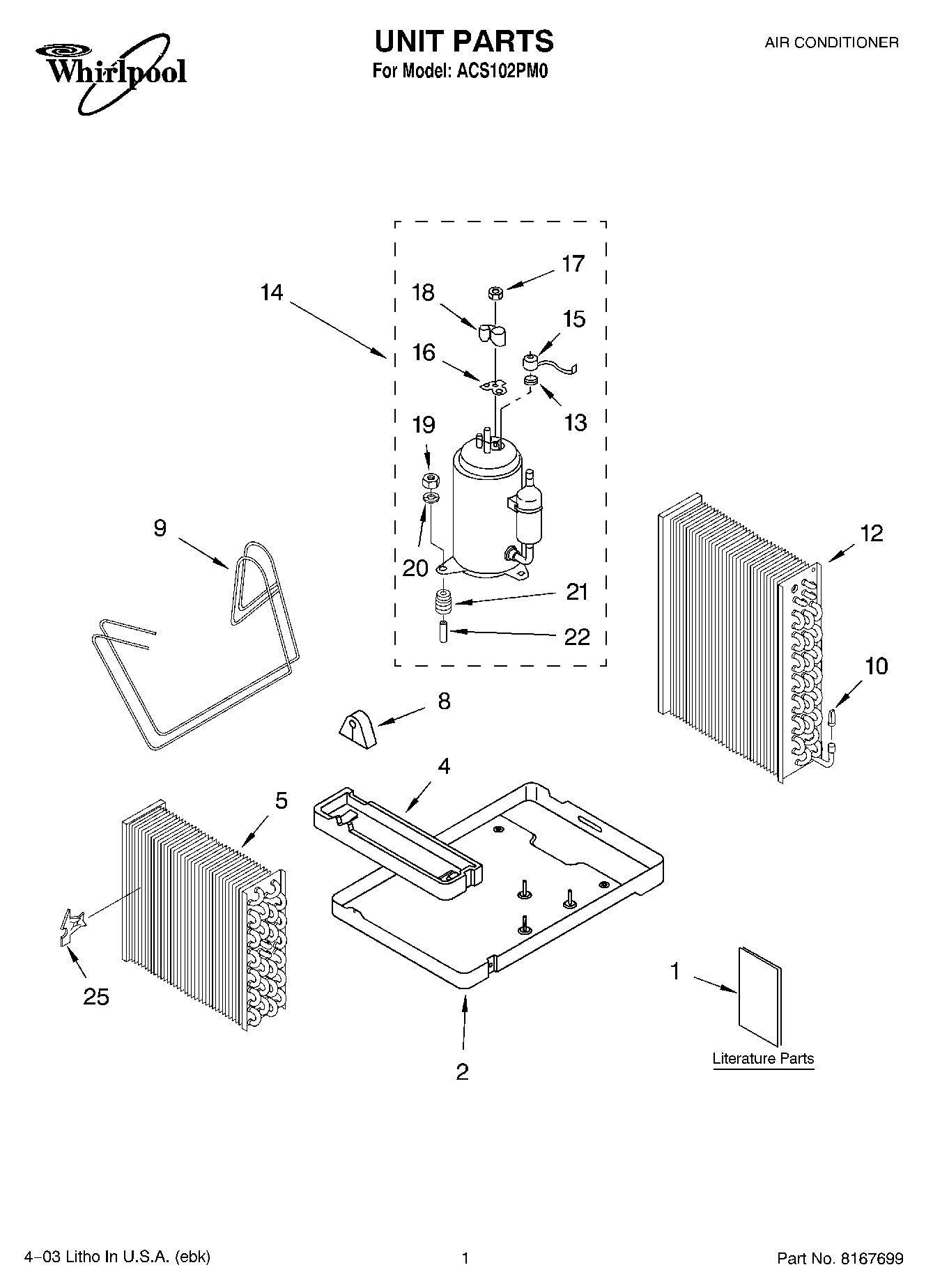

ACS102PM0 01 – UNIT PARTS

Products

Position	Product
1	Literature Parts (Use and Care Guide)
2	Base
4	Pan, Drain (Evaporator)
5	Evaporator
8	Grommet, Tube
9	Tube, Restrictor .042 I.D. x 20“ (2)
10	Strainer
12	Condenser
13	Spring, Overload
14	Compressor
15	Overload
16	Gasket, Terminal Cover
17	Nut, Terminal Cover
18	Cover, Terminal
19	Nut
20	W11236646 Whirlpool Washer Assembly
21	Grommet
22	Sleeve
25	Clip, Thermostat Bulb
25	REFRIGERANT CHARGE 17.75 oz.
