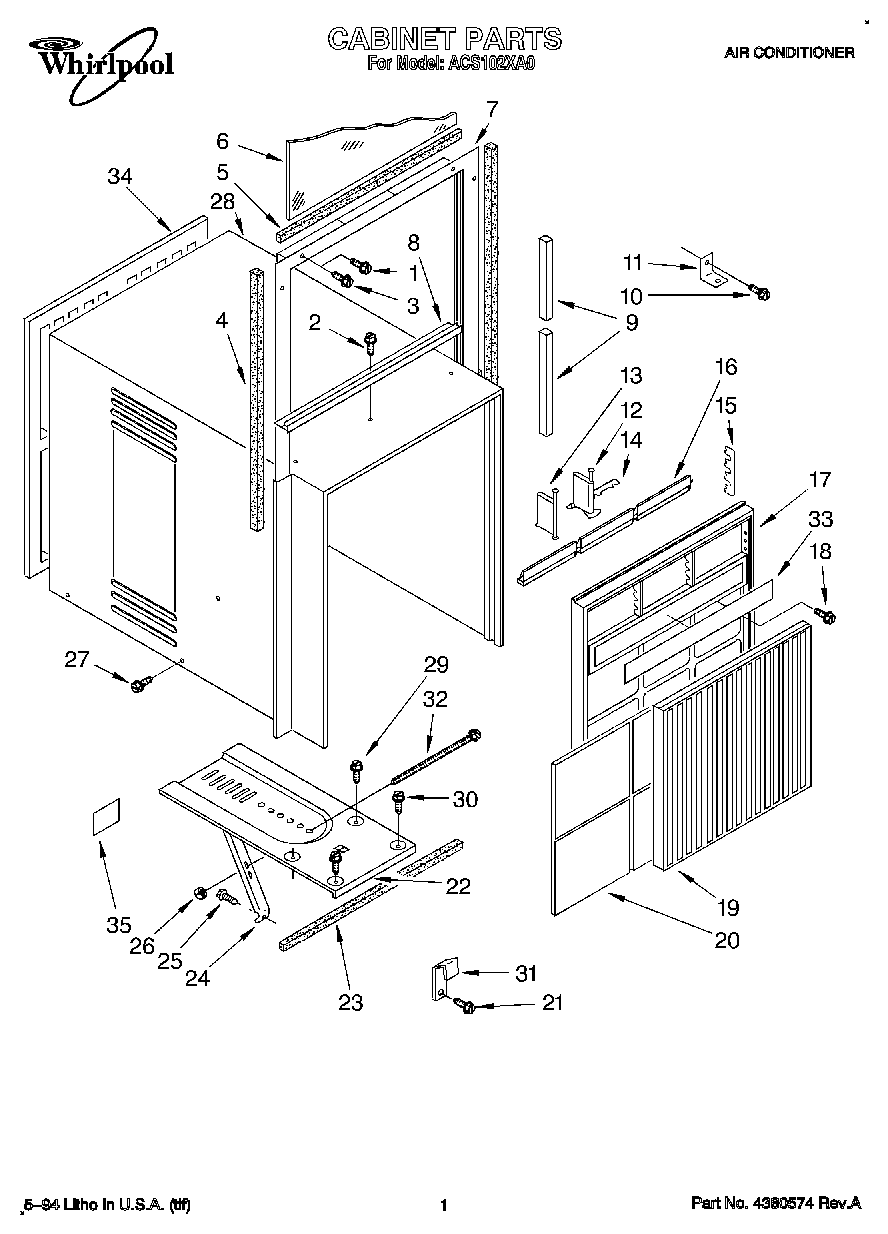

ACS102XA0 01 – SECTION

ACS102XA0 01 – SECTION

Written by

in

ACS102XA0 01 – SECTION

Products

Position	Product
2	SCREW
3	Screw
4	Seal
5	Seal
6	Panel-Window
7	Frame-Extension
8	Retainer-Window Pnl
9	Seal-Side
11	Bracket, Window Stop
12	Louver-Vertical Direct (2)
13	Louver, Vertical (4)
14	Link, Vertical Louver
15	Link, Horizontal Louver
16	Louver-Horiz.Defl.(4)
17	Front W/Louvers
19	Panel, Front
20	Filter-Air
21	Screw-Mtg Plate
22	Plate-Mtg.
23	Seal
24	Bracket-Support
25	Screw
26	Nut-Bracket
27	Screw-Cabinet
28	Cabinet
29	Screw
30	Screw
31	Bracket-Safety
32	Screw
33	Label
34	Grille-Rear
35	Nameplate, Rear Grille
