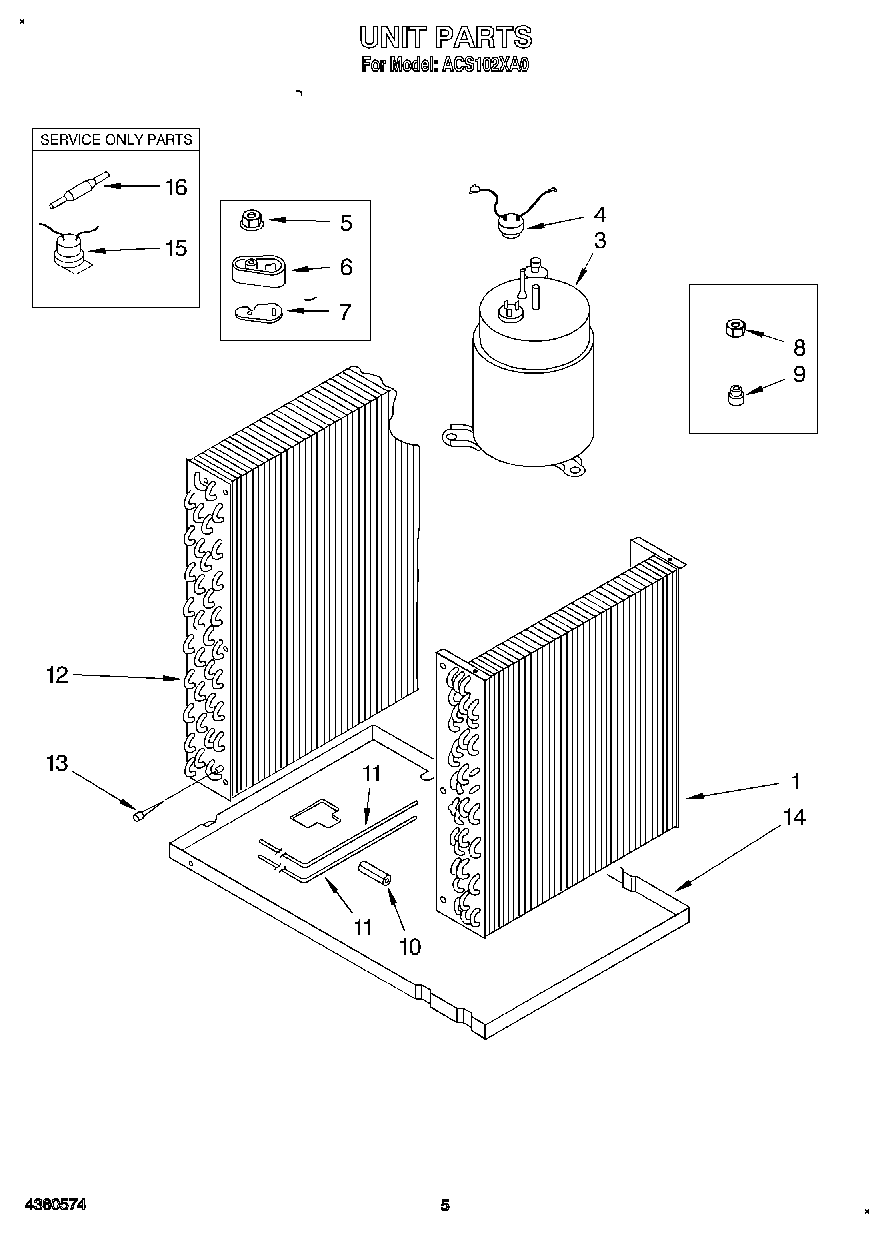

ACS102XA0 03 – SECTION

Written by

Products

Position	Product
	Owners Manual & Installation Instructions
	Repair Parts List
	Tech Sheet & Wiring Diagram
1	Evaporator
3	Compressor
4	Overload Front Mtg (2)
5	Nut, Cover
6	Cover, Terminal
7	Gasket-Terminal
8	Nut-Compressor
9	Grommet
10	Tube-Rubber
11	Capillary Tube (Cut to 40“)
12	Condenser
13	Strainer
14	Base
15	Kit-Starter
16	Drier
