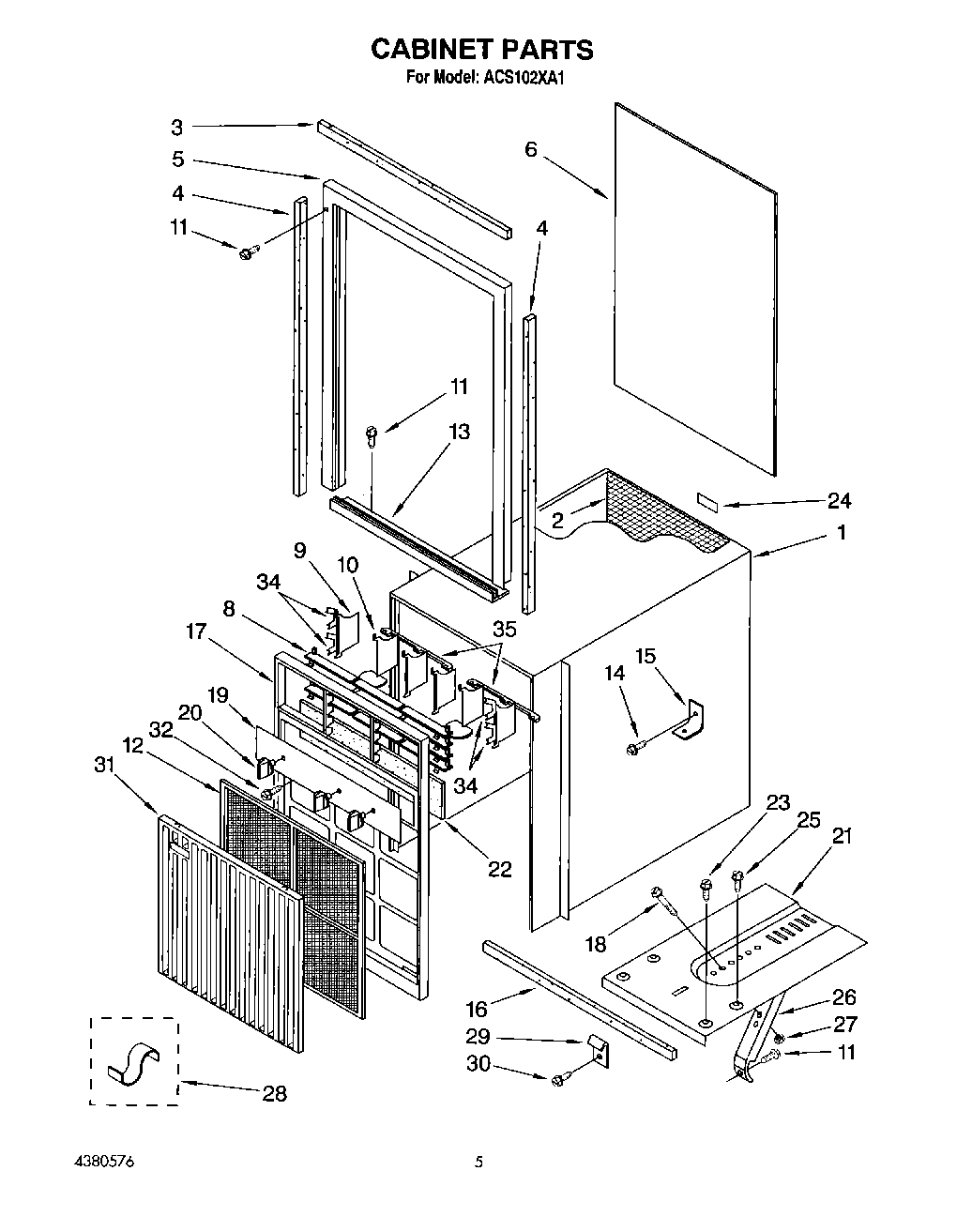

ACS102XA1 03 – SECTION

Products

Position	Product
1	Cabinet
2	Grille-Rear
3	Seal
4	Seal-Side
5	Frame, Expando
6	Panel-Window
8	Louver-Horiz.Defl.(4)
9	Louver, Vertical (4)
10	Louver-Vertical Direct (2)
11	Screw
12	Filter-Air
13	Retainer, Window
15	Bracket, Window Stop
16	Seal
17	Front W/Louvers
18	Screw
19	Escutcheon
20	Knob, Control
21	Plate, Mounting
22	Seal, Escutcheon
23	Screw
24	Nameplate, Rear Grille
25	Screw
26	Bracket, Support
27	Nut-Bracket
28	Clip-Front Mounting
29	Bracket, Safety
30	Screw-Mtg Plate
31	Panel, Front
32	SCREW
34	Link, Horizontal Louver
35	Link, Vertical Louver
