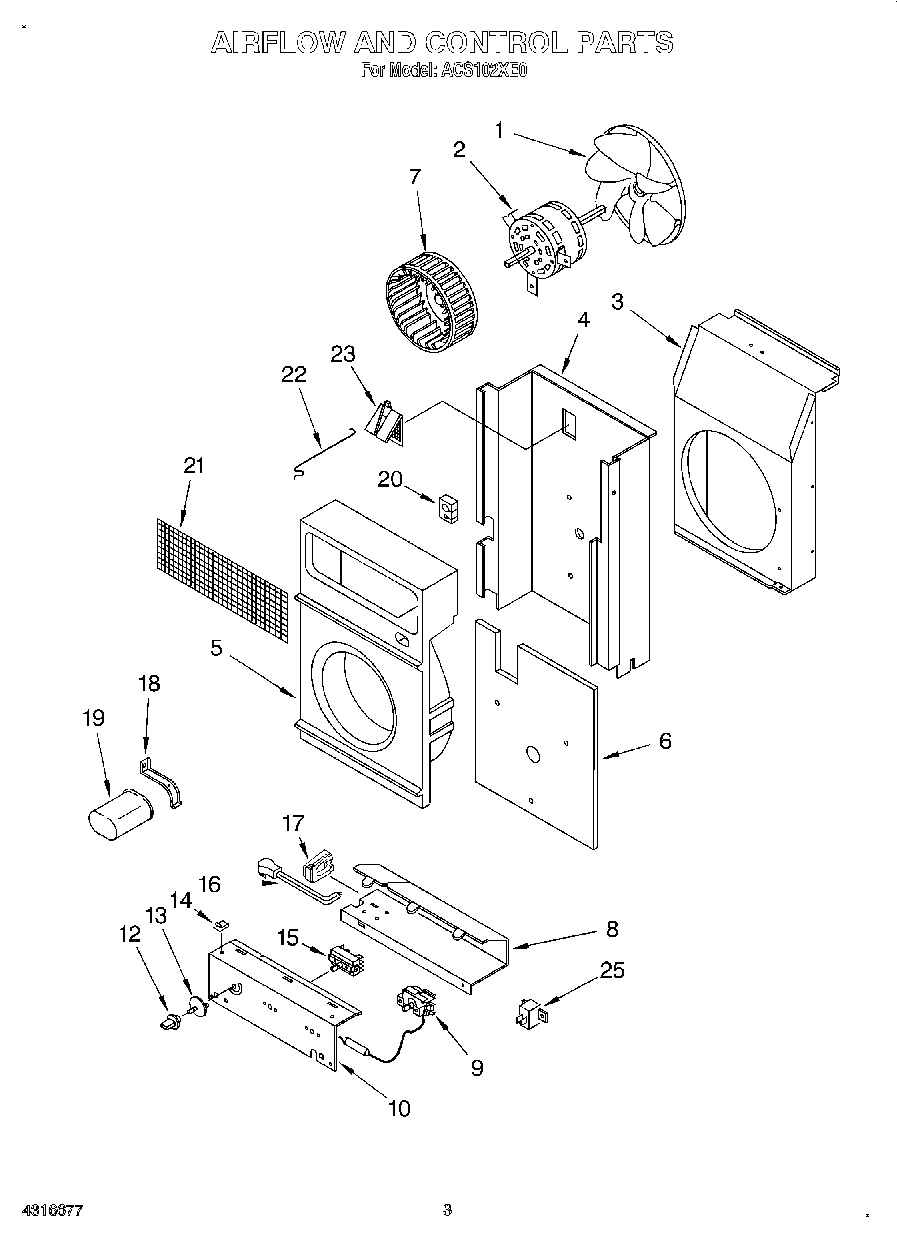

ACS102XE0 02 – AIRFLOW AND CONTROL

Products

Position	Product
1	Blade, Fan
2	Motor, Fan
3	Shroud, Condenser
4	Wall, Dividing
5	Housing, Blower
6	Insulation, Dividing Wall
7	Wheel, Blower
8	Box, Control
9	Thermostat
10	Cover, Control Box
12	Knob (3)
13	Actuator, Exhaust Door
14	Clip, Front Retainer
15	Switch, Rotary
16	Cord, Power
17	Relief, Strain
18	Strap, Capacitor
19	Capacitor
20	Grommet (Tube)
21	Screen, Air Discharge
22	Wire, Control
23	Door, Exhaust
25	Assist, Start
