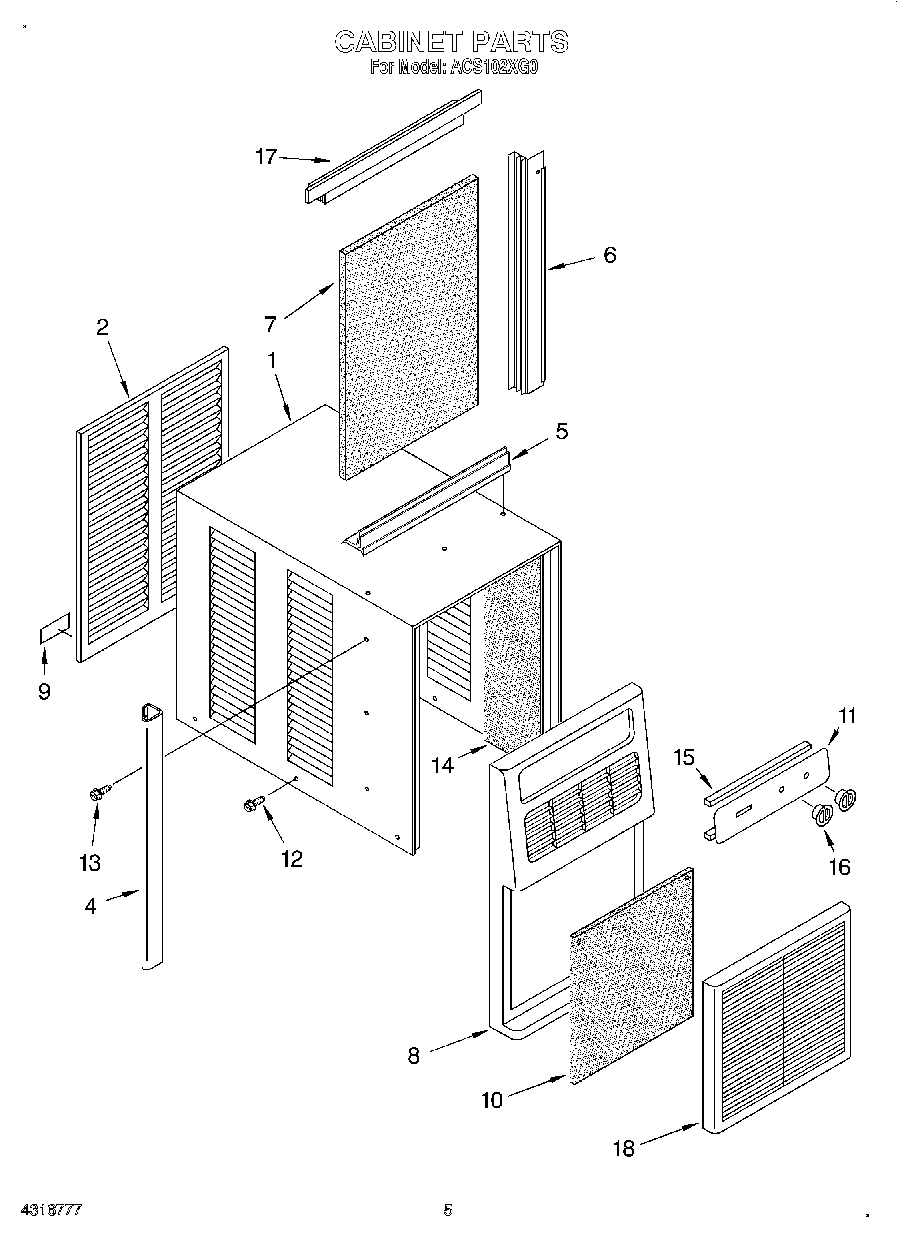

ACS102XG0 03 – CABINET

Products

Position	Product
1	Cabinet Assembly (Includes Insulation and Nos. 2 and 5)
2	Panel, Rear
4	Retainer, Side (Cabinet) (2)
5	Retainer, Top (Cabinet)
6	Retainer, Panel (Side) (2)
7	Panel, Filler
8	Front Assembly (Includes Item 18)
9	Nameplate
10	Filter, Air
11	Escutcheon (Also Order Item 15)
12	Screw
13	4389654 Whirlpool Screw
14	Insulation, Cab. (Side) (2 Required)
14	Insulation, Cab. (Top)
15	Spacer, Escutcheon
16	Knob
17	Retainer, Filler Panel (Top) (Not Serviced Separately)
18	Insert, Front
