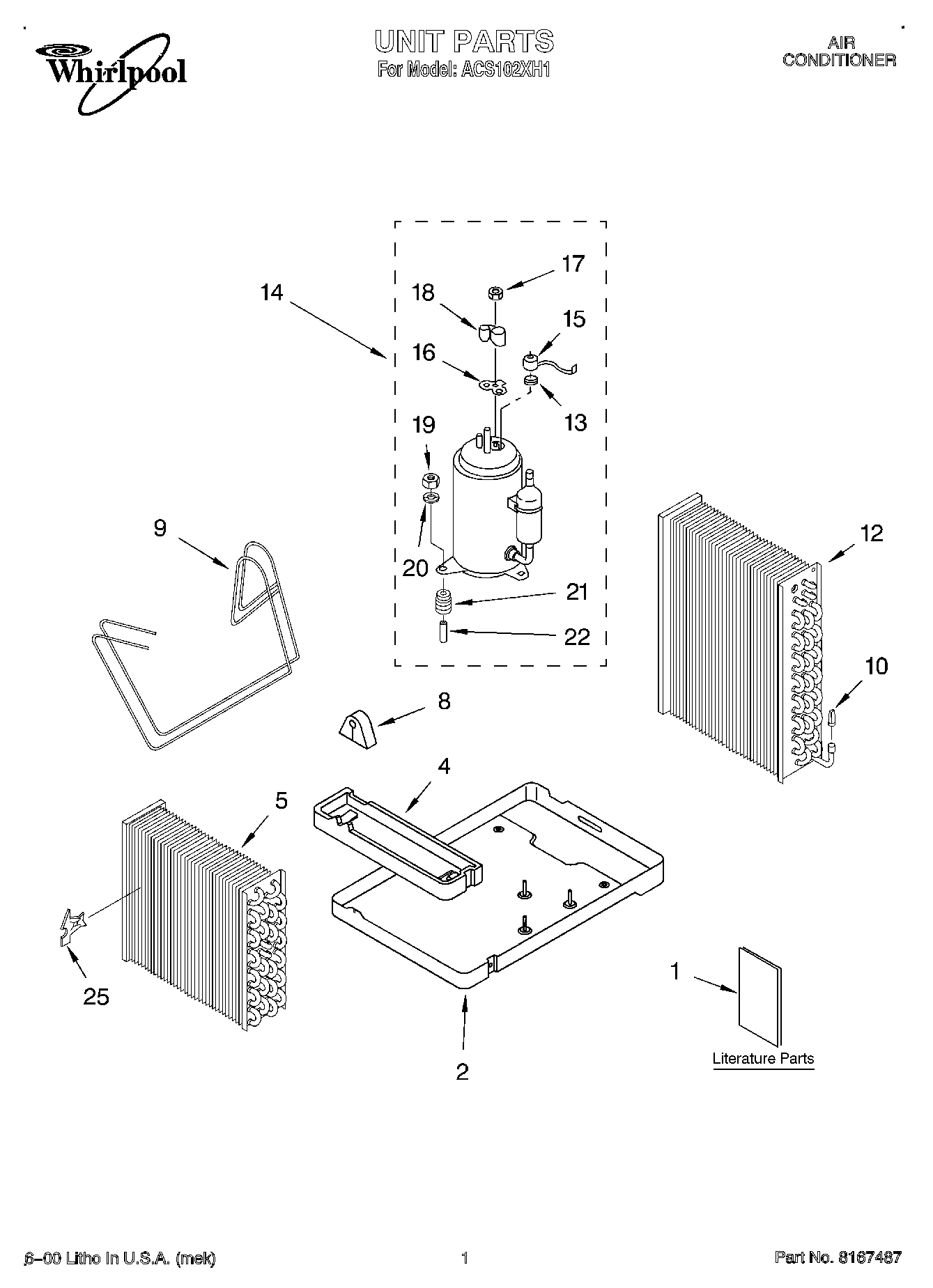

ACS102XH1 01 – UNIT, LITERATURE

Products

Position	Product
1	LITERATURE PARTS (Use and Care Guide)
2	Base
4	Pan, Drain (Evaporator)
5	Evaporator
8	Grommet, Tube
9	Tube, Restrictor .042 I.D. x 20``
10	Strainer
12	Condenser
13	Spring, Overload
14	Compressor
15	Overload
16	WP950035 Whirlpool Cover Gasket
17	Nut, Terminal Cover
18	Cover, Terminal
19	Nut
20	W11236646 Whirlpool Washer Assembly
21	Grommet
22	Sleeve
25	Clip, Thermostat Bulb
