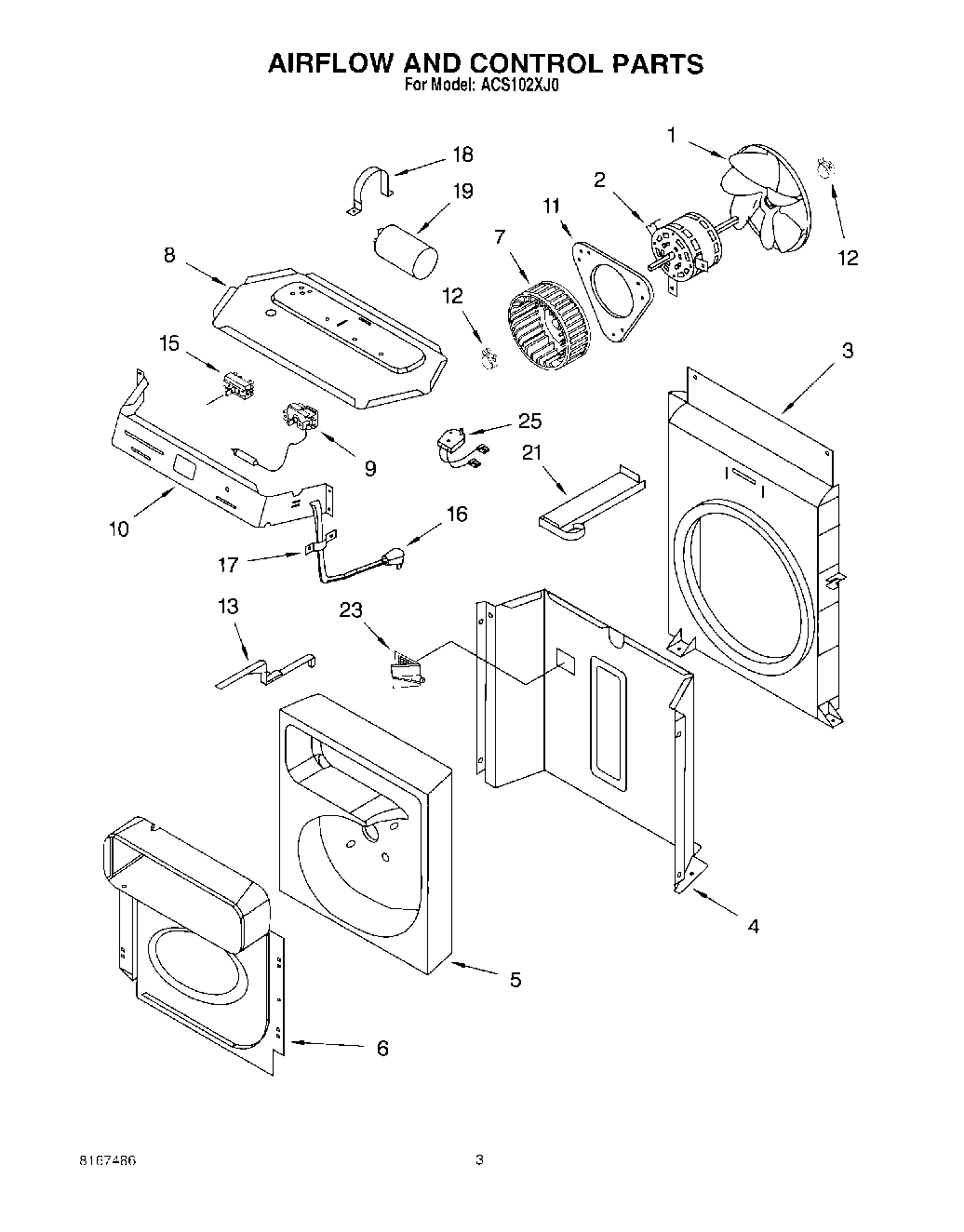

ACS102XJ0 02 – AIRFLOW AND CONTROL

Products

Position	Product
1	Blade, Fan
2	Motor, Fan
3	Shroud, Condenser
4	Wall, Dividing
5	Housing, Blower
6	Shroud, Evaporator (Includes Insul.)
7	Wheel, Blower
8	Panel, Control (Bottom)
9	Thermostat
10	Panel, Control
11	Plate, Motor Mounting
12	Clamp
13	Actuator, Exhaust Door
15	Switch, Rotary
16	Cord, Power
17	Relief, Strain
18	Strap, Capacitor
19	Capacitor
21	Support, Unit
23	Door, Exhaust
25	Assist, Start
