ACS102XM 02 – SECTION

Products

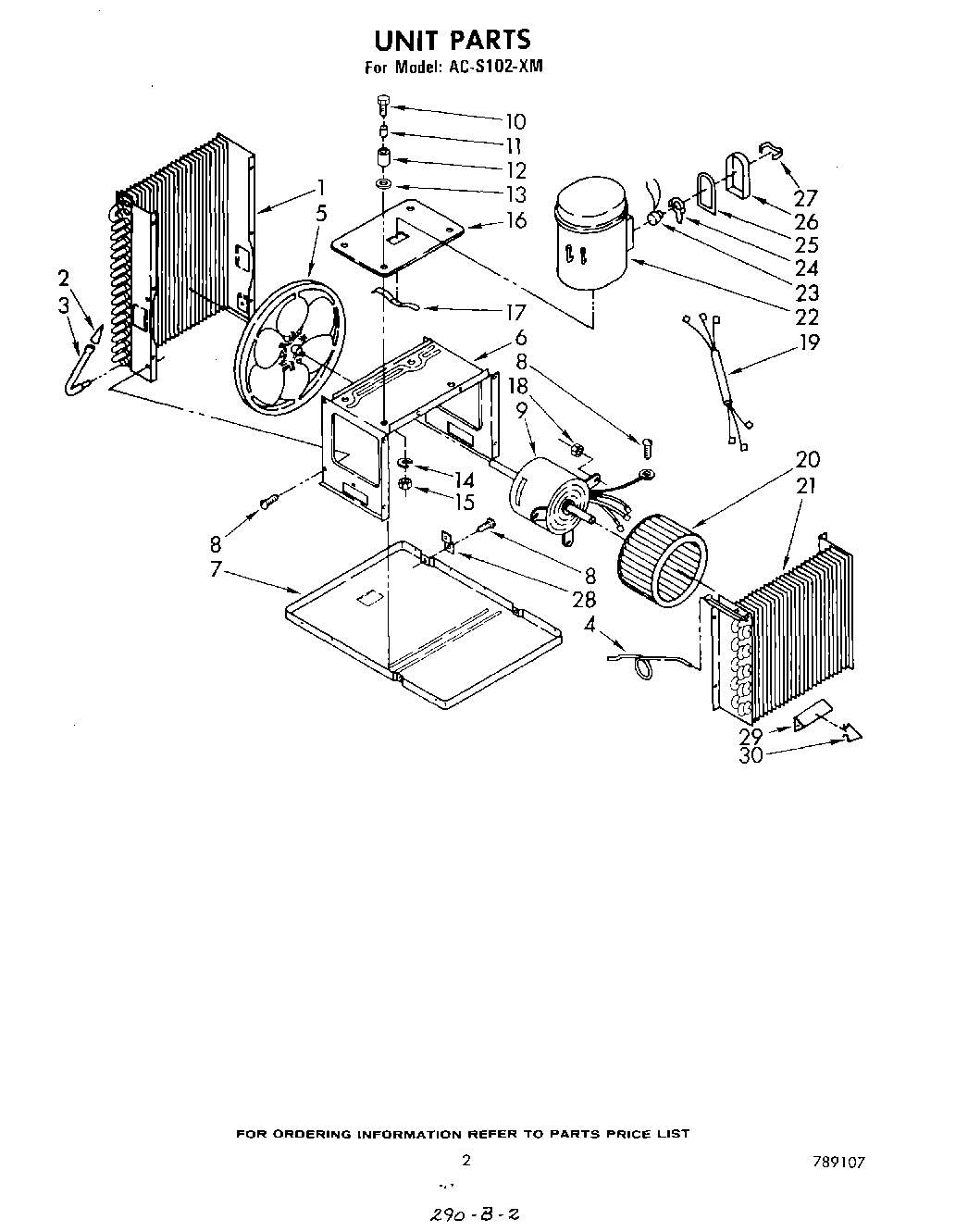

PositionProduct
1Condenser
2Strainer, Tube
3Tube, Strainer
4Tube, Restrictor (Length 22.0“)
5Fan, Slinger
6Mount, Compressor
7Base
8WP965173 Whirlpool Dishwasher Screw
9Motor, Fan
10Bolt, 5/16 x 1-1/2 (4)
11Sleeve (4)
12Grommet (4)
13WP120393 Whirlpool Washer Assembly
14Lockwasher (2)
15Nut, 5/16-18 (3)
16Plate, Compressor Base
17spring, compressor mounting
18Nut, Hex No. 1/4 (3)
19Harness, Wiring
20Wheel, Blower
21Evaporator
22Compressor
23Overload
24Spring, Overload
25gasket, terminal cover
26cover, terminal
27Retainer, Terminal
28Bracket, Condenser Shroud
29Anticipator, Temperature
30978026 Whirlpool Refrigerator Primary Valve
30978027 Whirlpool Refrigerator Primary Valve
30978030 Whirlpool Refrigerator Valve
30WP978025 Whirlpool Refrigerator Valve
30VALVE, ACCESS (1/2“)
30Clip, Temperature Anticipator
30Kit, Evaporator Repair (Aluminum Epoxy)
30No Drip Tape (For Sweating Tubes)
30VALVE, ACCESS (5/8“)
