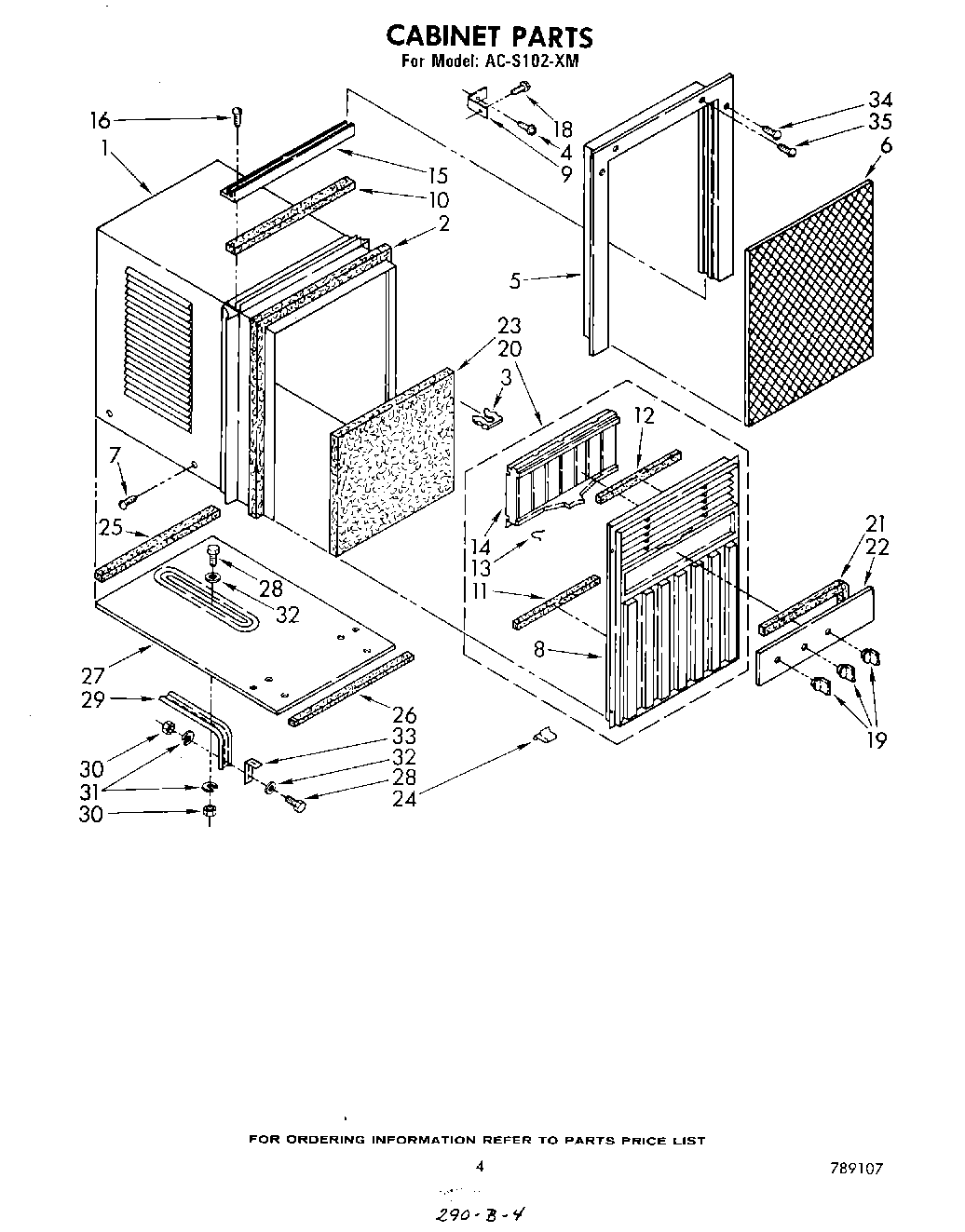

| 1 | Cabinet |
| 2 | Strip, Seal Window |
| 3 | Retainer, Filter (2) |
| 4 | W10759522 Whirlpool Screw |
| 5 | Filler, Frame |
| 6 | Board, Filler |
| 7 | WP965173 Whirlpool Dishwasher Screw |
| 8 | Front |
| 9 | Bracket, Window Locking (2) |
| 10 | Seal Strip |
| 11 | Strip, Seal |
| 12 | Strip, Seal |
| 13 | Retainer, Louver (2) |
| 14 | Louver, Vertical |
| 15 | Angle, Top |
| 16 | WP488729 Whirlpool Refrigerator Door Screw |
| 18 | Screw, 89 x 3/4 (2) |
| 19 | Knob (3) |
| 20 | Front Assembly |
| 21 | Strip, Backing |
| 22 | Plate, Dial |
| 23 | Filter |
| 24 | Clip, Front Mounting (2) |
| 25 | Seal, Lower Track |
| 26 | Strip Seal |
| 27 | Shelf, Window Mounting |
| 28 | Bolt, Carriage (5/16 x 3/4) (2) |
| 29 | Bracket, Shelf (Large) |
| 30 | Nut, 5/16-18 (3) |
| 31 | Lockwasher (2) |
| 32 | WP120393 Whirlpool Washer Assembly |
| 33 | Bracket, Shelf (Small) |
| 34 | Screw, 10 x 1`` |
| 35 | Screw, 10 x 1-3/4 (2) |
