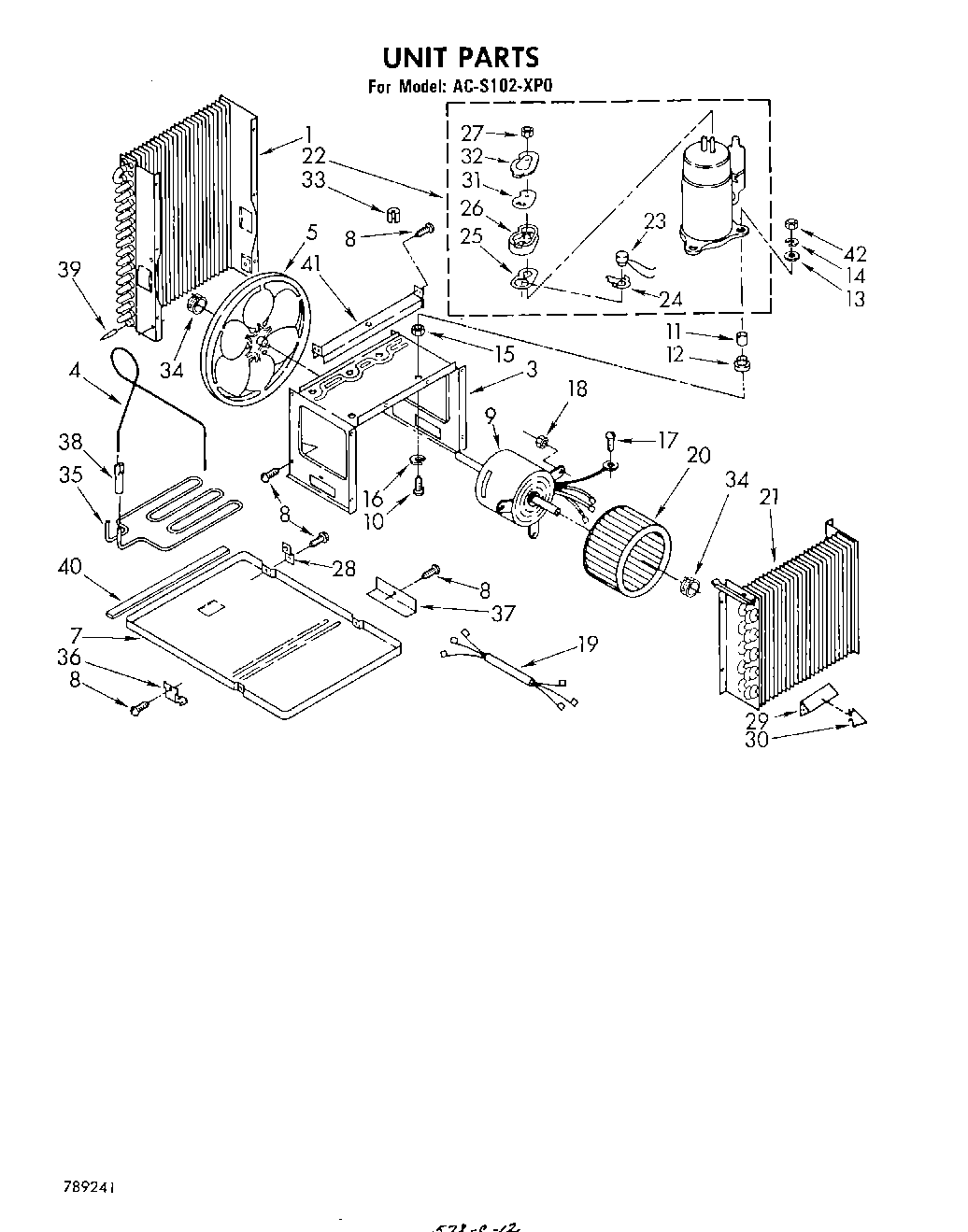

ACS102XP0 02 – SECTION

Products

Position	Product
1	Condenser
3	Mount, Compressor
4	Tube, Restrictor (2) (Length 22.0“)
5	Fan, Slinger
7	Base
8	WP965173 Whirlpool Dishwasher Screw
9	Motor, Fan
10	Bolt, 5/16-18 x 2“ (3)
11	Sleeve (3)
12	Grommet (3)
13	WP120393 Whirlpool Washer Assembly
14	Lockwasher (2)
15	nut, 5/16-18 (3)
16	Washer, Lock (3)
17	Screw, 1/4-20 x 3/4 (3)
18	Nut, Hex 1/4-20 (3)
19	Harness, Wiring
20	Wheel, Blower
21	Evaporator
22	Compressor
23	Overload
24	Spring, Overload
25	Gasket, Cover
26	Cover, Overload
27	Nut, Cover
28	Bracket, Condenser Shroud
29	Anticipator, Temperature
30	Clip, Temperature Anticipator
31	Gasket, Cover Cap
32	Cap, Cover
33	Dampener
34	Clip, Mounting
35	Tube, Sub Cool
36	Bracket, Sub Cool (L.H.)
37	Bracket, Sub Cool (R.H.)
38	Tube, Flow Divider
39	Tube, Strainer
40	Seal, Condenser
41	Channel, Mtg
42	Nut, 5/16-18 (3)
