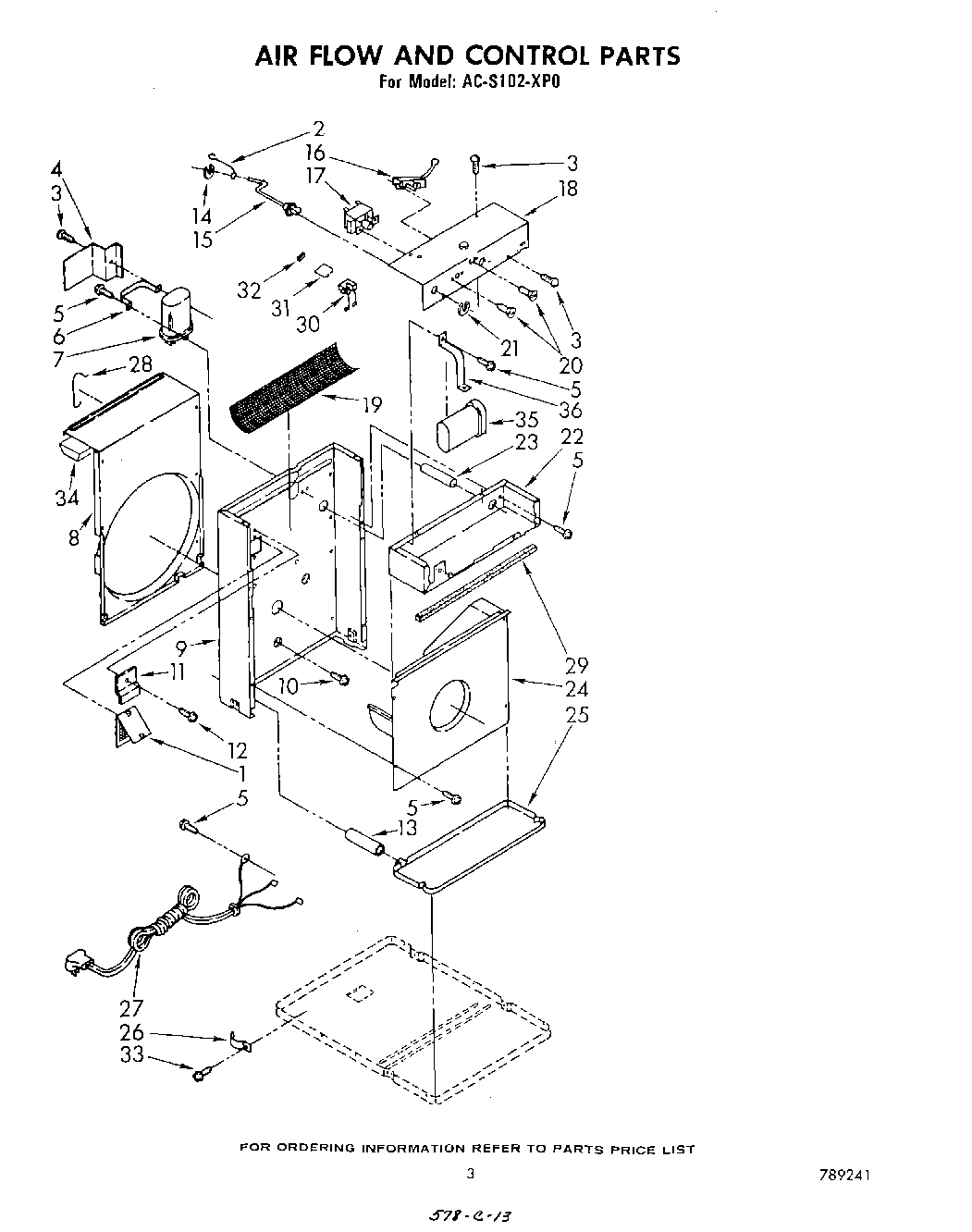

ACS102XP0 03 – SECTION
Written by
in
ACS102XP0 03 – SECTION
Products
Position
Product
1
Door, Exhaust
2
Link, Wire
3
WP965173 Whirlpool Dishwasher Screw
4
Bracket, Shield Capacitor
5
WP488729 Whirlpool Refrigerator Door Screw
6
Clamp, Capacitor
7
Capacitor, Running
8
Shroud, Condenser
9
Wall, Dividing
10
Screw, 1/4-20 x 3/4 (3)
11
Stop, Exhaust Door
13
Tube, Drain
14
Clip
15
Control, Exhaust
16
Control, Temperature
17
Switch, Rotary
18
Cover, Control Box
19
Guard, Hazard
20
Screw, Machine 6-32 x .175 (4)
21
Clip, Retainer
22
Box, Control
23
Tube, Wire Guard
24
Housing, Blower Wheel
25
Pan, Drain
26
Clamp, Cable
27
Cable, Appliance
28
Retainer, Shroud Cover
29
Seal, Strip
30
Heater, Thermostat
31
Clip, Heater
32
Pad, Protector
33
WP308685 Whirlpool Microwave Screw
34
WP854334 Whirlpool Air Conditioner Sealing Strip
35
Capacitor, Fan Motor
36
Bracket, Strap
←
