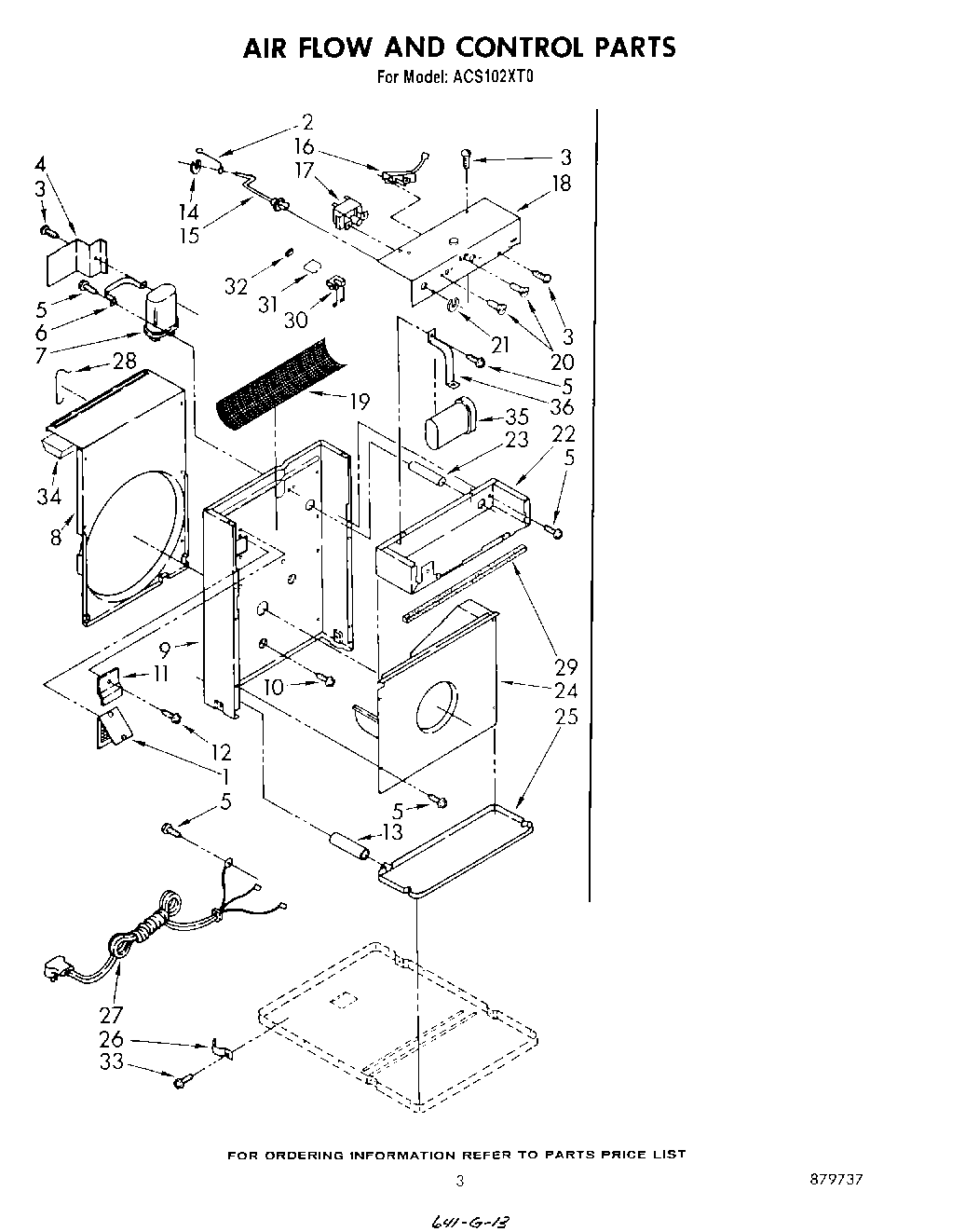

| 1 | Door, Exhaust |
| 2 | Link, Wire |
| 3 | WP965173 Whirlpool Dishwasher Screw |
| 4 | Bracket, Shield Capacitor |
| 5 | WP488729 Whirlpool Refrigerator Door Screw |
| 6 | Clamp, Capacitor |
| 7 | Capacitor, Running |
| 8 | Shroud, Condenser |
| 9 | Wall, Dividing |
| 10 | Screw, 1/4-20 x 3/4 (3) |
| 11 | Stop, Exhaust Door |
| 13 | Tube, Drain |
| 14 | Clip |
| 15 | Control, Exhaust |
| 16 | Control, Temperature |
| 17 | Switch, Rotary |
| 18 | Cover, Control Box |
| 19 | Guard, Hazard |
| 20 | Screw, Machine 6-32 x .175 (4) |
| 21 | Clip, Retainer |
| 22 | Box, Control |
| 23 | Tube, Wire Guard |
| 24 | Housing, Blower Wheel |
| 25 | Pan, Drain |
| 26 | Clamp, Cable |
| 27 | Cable, Appliance |
| 28 | Retainer, Shroud Cover |
| 29 | Seal, Strip |
| 30 | Heater, Thermostat |
| 31 | Clip, Heater |
| 32 | Pad, Protector |
| 33 | WP308685 Whirlpool Microwave Screw |
| 34 | WP854334 Whirlpool Air Conditioner Sealing Strip |
| 35 | Capacitor, Fan Motor |
| 36 | Bracket, Strap |
