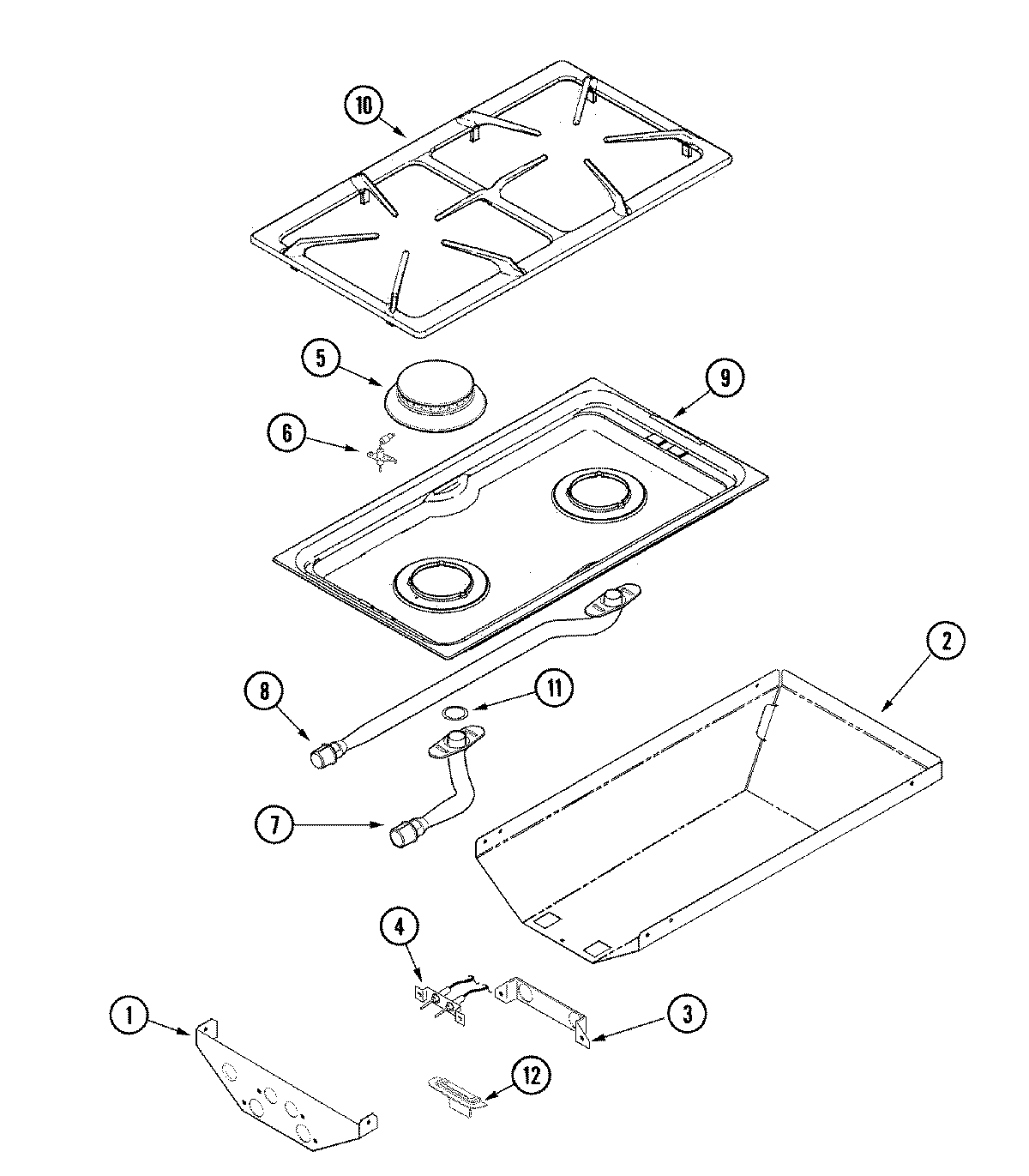

ACS200CC 01 – GAS CARTRIDGE (AMANA)

Products

Position	Product
NI	WP693995 Whirlpool Screw
NI	VENTURI, REAR BURNER-HW
NI	VENTURI, FRONT BURNER-HW
NI	SCREW, No.8-18 X 1/4 P TRS HD
NI	SCREW, No.6-32 X .312 PANHD(BLK)
NI	WASHER, LOCK 5/32 X 9/32 O.D.
NI	MODULE PAN,GAS SEALED BRNR(BLA
NI	BRKT, BURNER MTG.
NI	MAY Y0315593
1	CAP, BURNER 9K (MATTE BLK)
1	CAP, BURNER 9K (SPECKLE GREY)
2	CAP, BURNER 12/13K (MATTE BLK)
2	CAP, BURNER 12/13K (SPKLE GRY)
3	TOP BURNER (MEDIUM 9K)
4	TOP BURNER (LARGE 12/13K)
5	SCREW, ELECTRODE
6	WPY0316773 Whirlpool Surface Igniter
7	TOP, MODULE-SEALED BURNER (SS)
7	TOP, MODULE-SEALED BURNER(WHT)
7	TOP, MODULE-SEALED BURNER(BSQ)
7	TOP, MODULE-SEALED BURNER(BLK)
8	WPY04100059 Whirlpool Screw
9	ELECTRODE, BURNER IGN. 21“WIRE
10	ELECTRODE, BURNER IGN. 1O“WIRE
11	BRKT, VENTURI
12	BRKT, VENTURI CLAMPING
