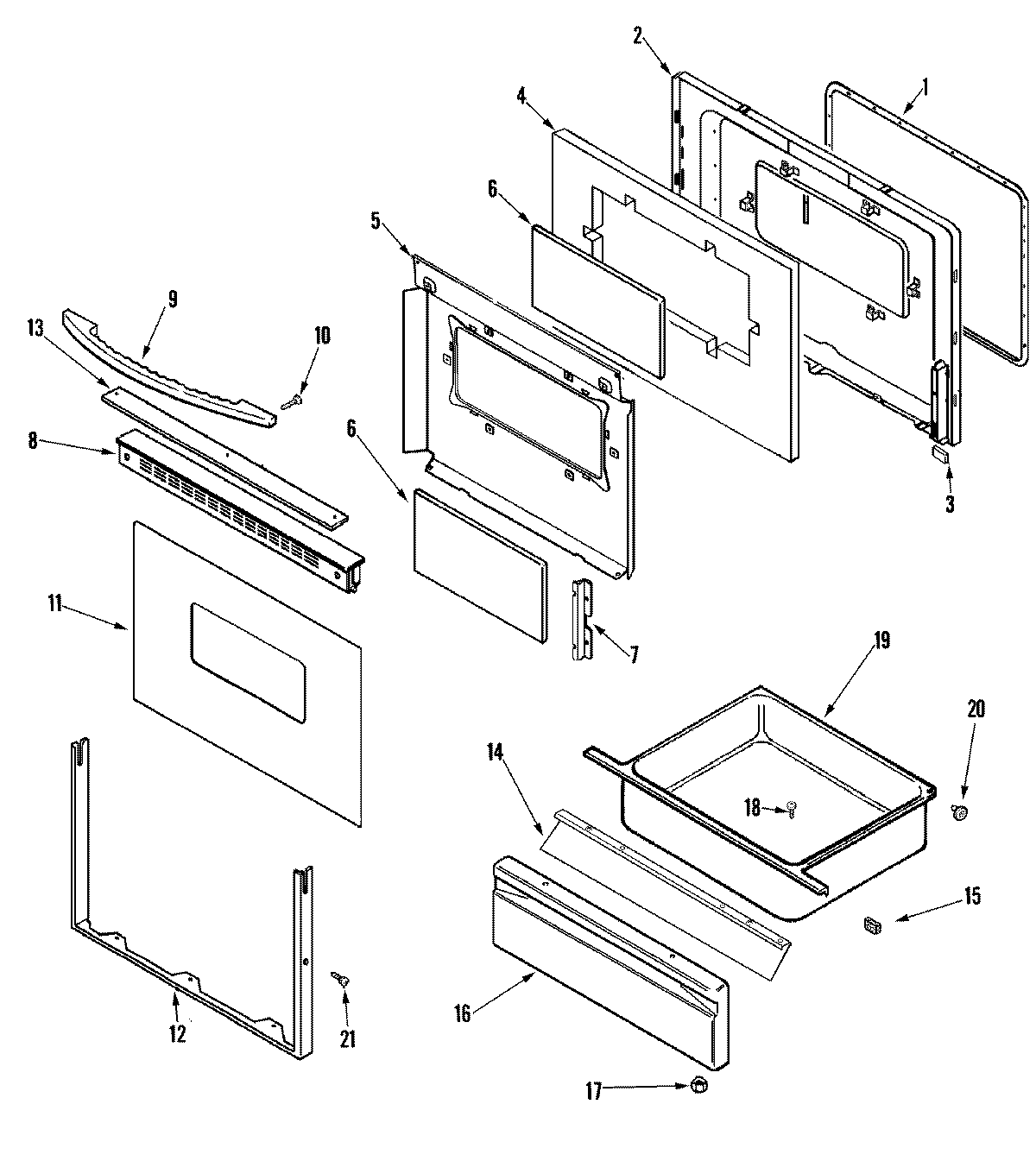

ACS4140BW 02 – DOOR/DRAWER

Products

Position	Product
1	GASKT-DOOR OVEN
2	LINING, OVEN DOOR
4	MAY 74001842
5	MAY 74001843
6	GLASS, INNER
7	MAY 74001844
8	TAPE, FOIL (3“ WIDE)
9	MAY 74006668
9	WP98008544 Whirlpool Screw Assembly
10	WP74006515 Whirlpool Washer Screw
10	SCREW
11	MAY 74006874
12	MAY 74004839
13	MAY 7728P094-60
14	LINING, DRAWER PANEL
14	SCREW (8ABX1/2“-BLK)
15	WP74005546 Whirlpool RU Spacer
16	PANEL, DRAWER (WHT)
17	WPW10131078 Whirlpool Nut Assembly
19	MAY 71003042
20	WP488130 Whirlpool Air Conditioner Nut
20	MAY 74003566
