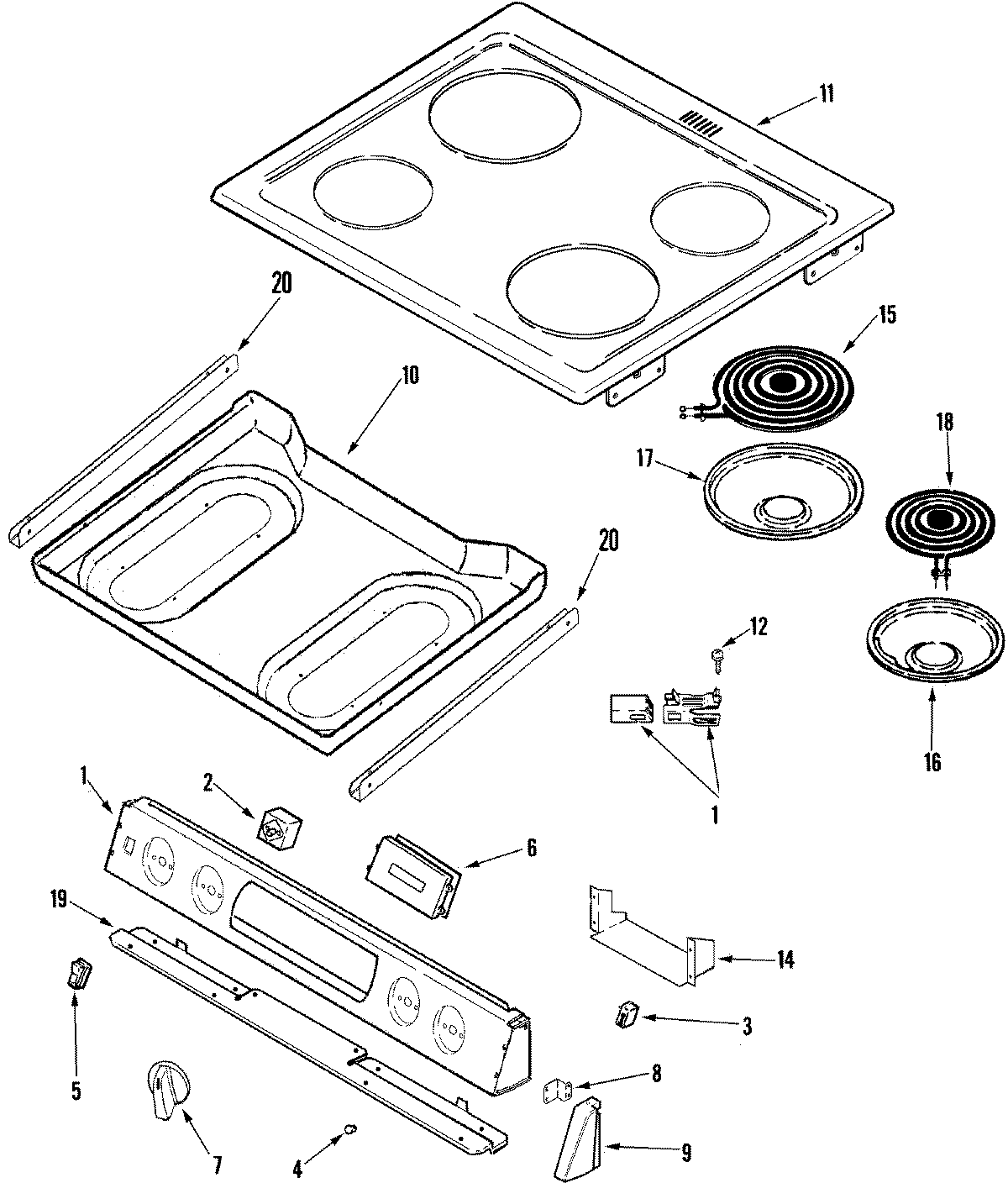

ACS4140BW 05 – TOP ASSEMBLY

Products

Position	Product
1	MAY 74008021
1	MAY 74008017
2	SCREW
2	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
2	WP7403P239-60 Whirlpool Oven Switch
3	WP74004153 Whirlpool Indicator Light
4	WP7730P011-60 Whirlpool Indicator Lens
5	74008717 Whirlpool White Rocker Switch
6	MAY 74008022
6	MAY 74008024
7	MAY 74008019
8	MAY 74005671
9	CAP, END (WHT-RT)
9	CAP, END (WHT-LT)
10	MAY 74007476
10	MAY 74006046
11	MAY 74007634
12	MAY 7118P013-60
13	12001676 Whirlpool Range Surface Burner Receptacle Kit
14	MAY 74004246
15	WPW10345410 Whirlpool Surface Element
16	W10291024 Whirlpool Range Cooktop Gray Porcelain Drip Bowl Set
18	WPW10259868 Whirlpool Surface Heating Element
19	MAY 74004185
19	SCREW (8BX3/8-NI)
20	MAY 74005822
20	SCREW
