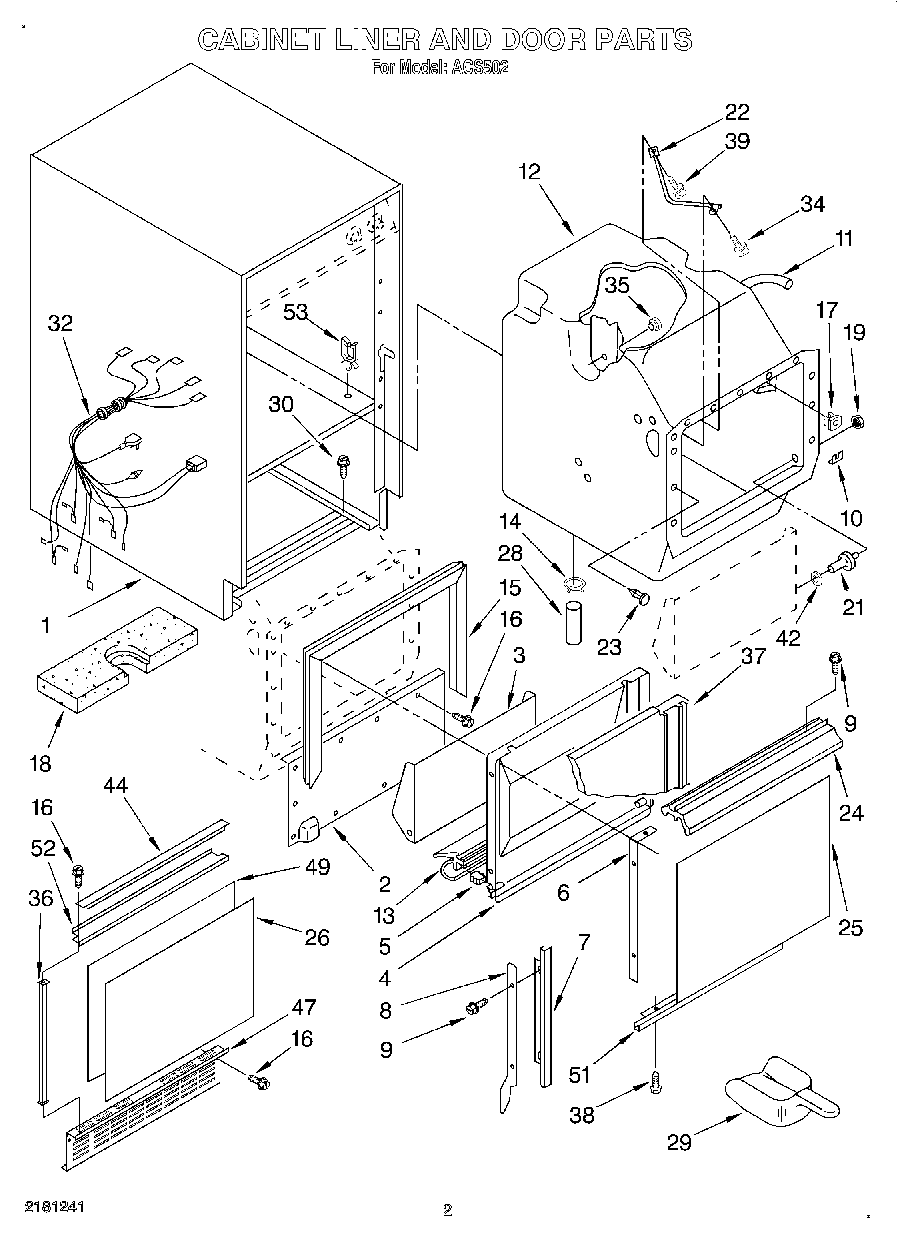

ACS502 02 – CABINET LINER AND DOOR, LITERATURE

Products

Position	Product
	Use & Care Guide
	WPL LIT2180831
	WPL LIT2181241
	WPL LIT2180635
1	WPL 2175636
2	WPL 2175619
3	Door, Inner
4	Liner, Door
5	Plug, Hinge
6	Strip, Tapping (2)
7	Trim, Door (L.S.)
7	Trim, Door (R.S.)
8	Rail, Door (Right Side)
8	Rail, Door (Left Side)
9	Screw, No.8-32 1/2 (6)
10	Washer, Clip
11	WPL 759213
12	Liner (Includes No.s 5, 6, 7, 11, 14)
13	WPL 2172898
14	Clamp, Hose (2)
15	Gasket, Liner
16	WP488729 Whirlpool Refrigerator Door Screw
17	Grommet, Mtg (2)
18	Insul/Bottom Foam
19	Nut, Hex 1/4 (2)
21	Stud, Inner Door Mtg. (2)
22	Thermostat, Well Bin
23	Clip, Linner (12)
24	Handle, Door Pull
25	Panel, Door (Stainless Steel)
26	Panel, Outer
28	Hose, 5/8 x 4“ (Connector To Air Gap)
29	W11420408 Whirlpool Refrigerator Ice Scoop
30	Screw, No.10-32 x 3/8
32	WPL 2181157
34	Thumbscrew 10-32 x 5/8
35	Nut, Well (3)
36	Trim, Sides (2)
37	WPL 758754
38	Screw, No.8-32 x 1/2
39	Screw, 10 x 1/2
42	Washer (2)
44	Trim, Top & Bottom
47	Grille, Panel
49	Panel, Inner Grille
51	Trim, Door (Lower)
52	WPL 2175604
53	212643 Whirlpool Refrigerator Permagum Sealer
53	WPL 489482
53	978027 Whirlpool Refrigerator Primary Valve
53	VALVE, ACCESS (5/8“)
53	978030 Whirlpool Refrigerator Valve
53	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
53	WP978025 Whirlpool Refrigerator Valve
53	WP503695 Whirlpool Refrigerator Sealer
53	978026 Whirlpool Refrigerator Primary Valve
53	VALVE, ACCESS (1/2“)
53	WP505587 Whirlpool Refrigerator Sealer
53	876370 Whirlpool Refrigerator Insulation
