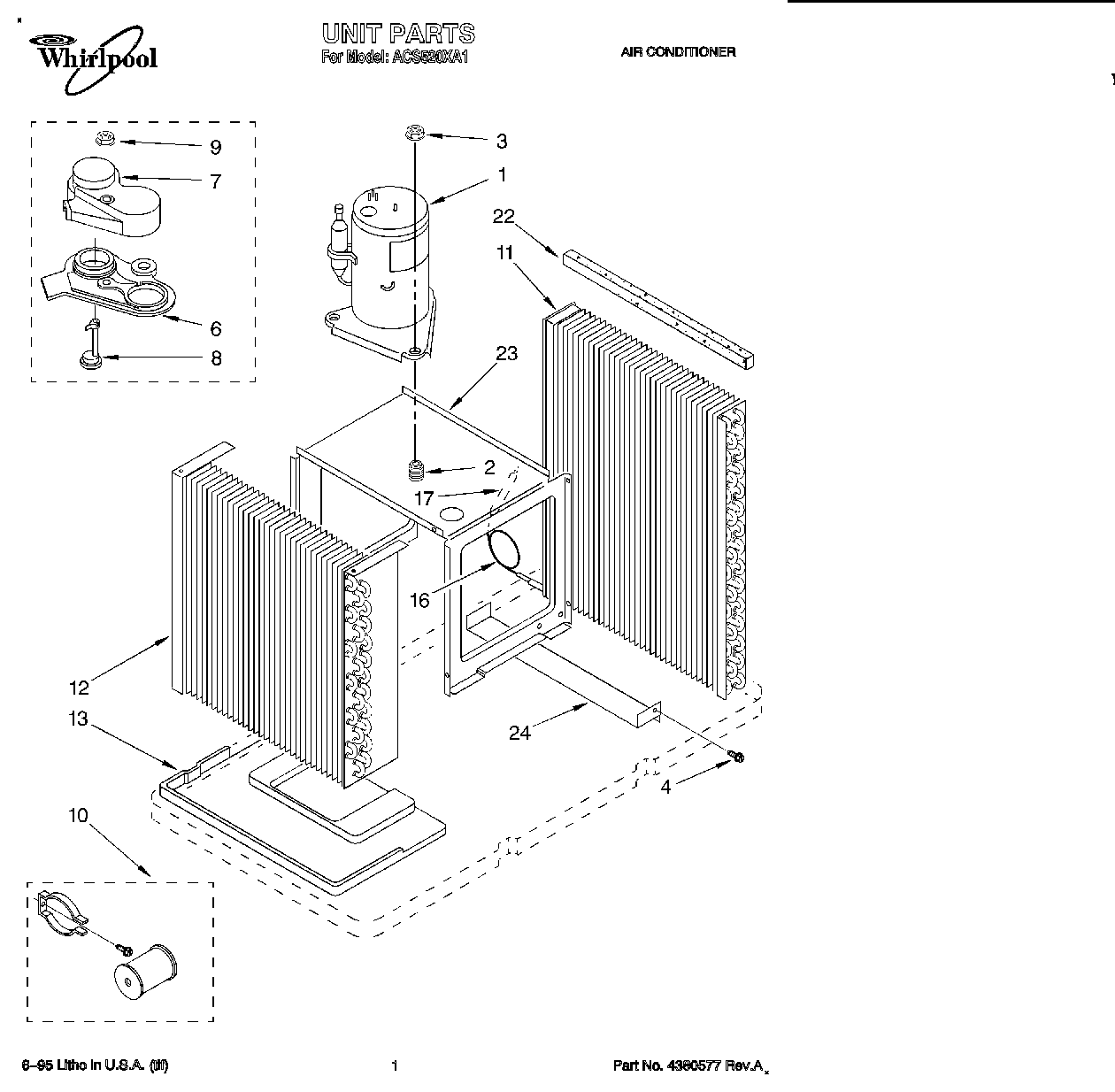

| 1 | Compressor |
| 2 | Grommet |
| 3 | Nut-Compressor |
| 4 | SCREW |
| 6 | Gasker, Cover |
| 7 | Cover, Terminal |
| 8 | Overload |
| 9 | Nut, Cover |
| 10 | Kit-Starter |
| 11 | Evaporator |
| 12 | Condenser |
| 13 | Pan, Drain |
| 16 | Tube, Capillary (Cut to 30``) |
| 17 | Drier |
| 22 | WP854334 Whirlpool Air Conditioner Sealing Strip |
| 23 | Bracket, Comp. Mounting |
| 24 | Baffle |
