ACS602XM 02 – SECTION

Products

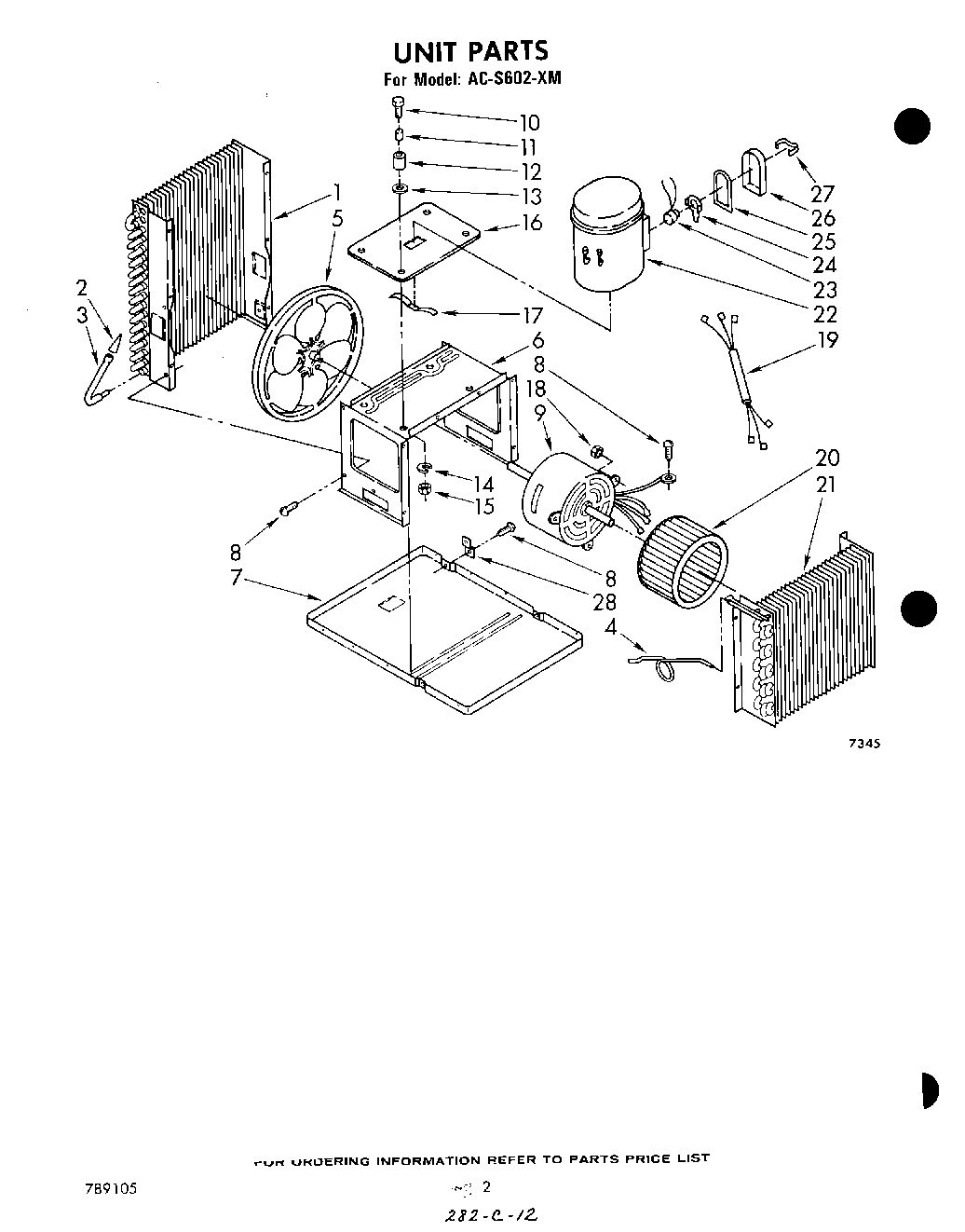

PositionProduct
1Condenser
2Strainer, Tube
3Tube, Strainer
4Tube, Restrictor (Length 33.0“)
5Fan, Slinger
6Mount, Compressor
7Base, Assembly
8WP965173 Whirlpool Dishwasher Screw
9Motor, Fan
10Bolt, 5/16 x 1-1/2 (4)
11Sleeve (4)
12Grommet (4)
13WP120393 Whirlpool Washer Assembly
14Lockwasher (2)
15Nut, 5/16-18 (3)
16Plate, Compressor Base
17spring, compressor mounting
18Nut, Hex No. 1/4 (3)
19Harness, Wiring
20Wheel, Blower
21Evaporator
22Compressor
23Overload
24Spring, Overload
25Gasket, Terminal Cover
26Cover, Terminal
27Retainer, Terminal
28Bracket, Condenser Shroud
28No Drip Tape (For Sweating Tubes)
28VALVE, ACCESS (1/2“)
28WP978025 Whirlpool Refrigerator Valve
28978030 Whirlpool Refrigerator Valve
28978027 Whirlpool Refrigerator Primary Valve
28978026 Whirlpool Refrigerator Primary Valve
28VALVE, ACCESS (5/8“)
