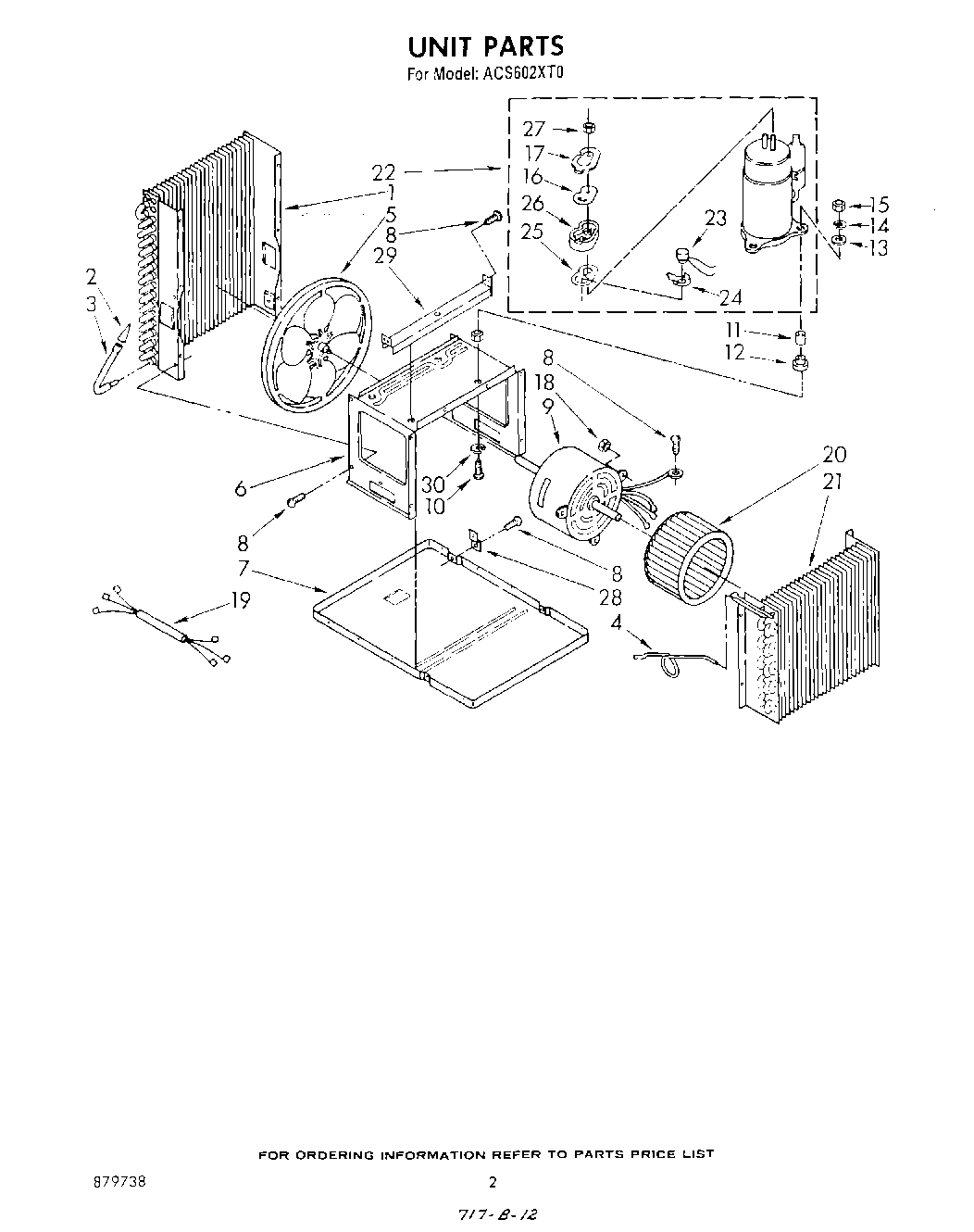

ACS602XT0 02 – SECTION

Products

PositionProduct
1Condenser (For Repair Of Condenser, Also Order 484230 Tube & Strainer Assembly)
2Strainer, Tube
3Tube, Strainer
4Tube, Restrictor (Length 24.0“)
5Fan, Slinger
6Mount, Compressor
7Base, Assembly
8WP965173 Whirlpool Dishwasher Screw
9Motor, Fan
10Bolt, 5/16 x 1-1/2 (4)
11Sleeve (3)
12Grommet (3)
13WP120393 Whirlpool Washer Assembly
14Lockwasher (2)
15Nut, 5/16-18 (3)
16Gasket, Cover Cap
17Cap, Cover
18Nut, Hex No. 1/4 (3)
19Harness, Wiring
20Wheel, Blower
21Evaporator
22Compressor
23Overload
24Spring, Overload
25Gasket, Cover
26Cover, Overload
27Retainer, Terminal
28Bracket, Condenser Shroud
29Channel, Mtg
30978026 Whirlpool Refrigerator Primary Valve
30978027 Whirlpool Refrigerator Primary Valve
30978030 Whirlpool Refrigerator Valve
30WP978025 Whirlpool Refrigerator Valve
30VALVE, ACCESS (1/2“)
30No Drip Tape (For Sweating Tubes)
30Washer, Lock (3)
30VALVE, ACCESS (5/8“)
