ACS602XT0 03 – SECTION

ACS602XT0 03 – SECTION

Written by

in

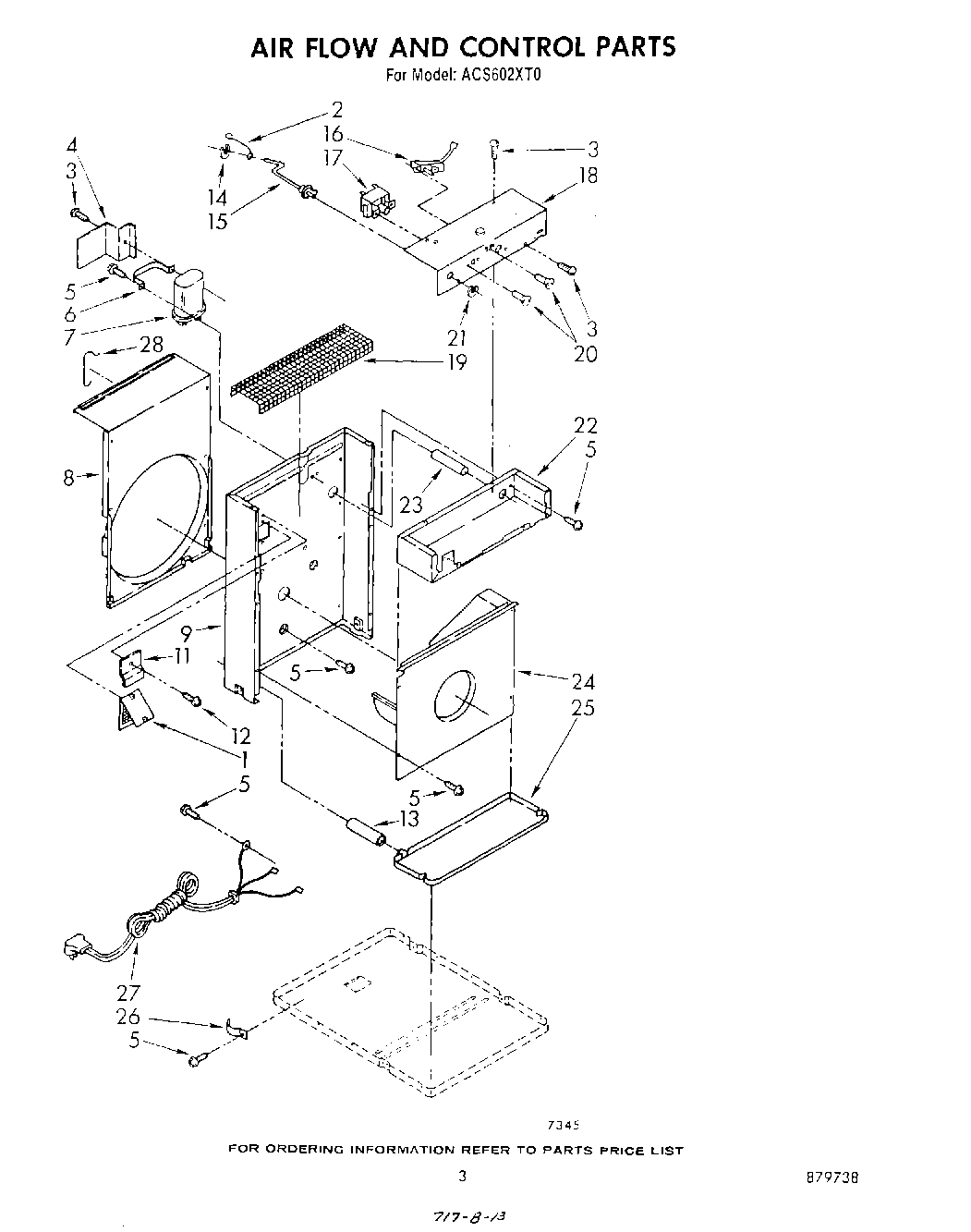

ACS602XT0 03 – SECTION

Products

PositionProduct
1Door, Exhaust
2Link, Wire
3WP965173 Whirlpool Dishwasher Screw
4Bracket, Shield Capacitor
5WP488729 Whirlpool Refrigerator Door Screw
6Bracket, Running Capacitor
7Capacitor, Running
8Shroud, Condenser
9Wall, Dividing Assembly
11Stop, Exhaust Door
13Tube, Drain
14Clip
15Control, Exhaust Assembly
16Control, Temperature
17Switch, Rotary
18Cover, Control Box
19Guard, Hazard
20Screw, Machine 6-32 x .175 (4)
21Clip, Retainer
22Box, Control
23Tube, Wire Guard
24Housing, Blower Wheel
25Pan, Drain
26Clamp
27Cable, Appliance
28Instructions, Installation
28Sheet, Tech & Wiring Diagram
28Guide, Energy
28List, Repair Parts
28Wire, Red, (25 Ft.)
28212643 Whirlpool Refrigerator Permagum Sealer
28Guide, Use & Care
28Retainer, Shroud Cover
28Wire, 25“ Roll (Black 12 GA.)
28Lacquer, Starlight Gray (1/2 Pt. Uncut)
28Wire, 25“ Roll (White 12 GA.)
28WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
28Insulation, Fiberglass (1/4“ x 24“ x 48“)
