ACS802XV0 02 – SECTION

Products

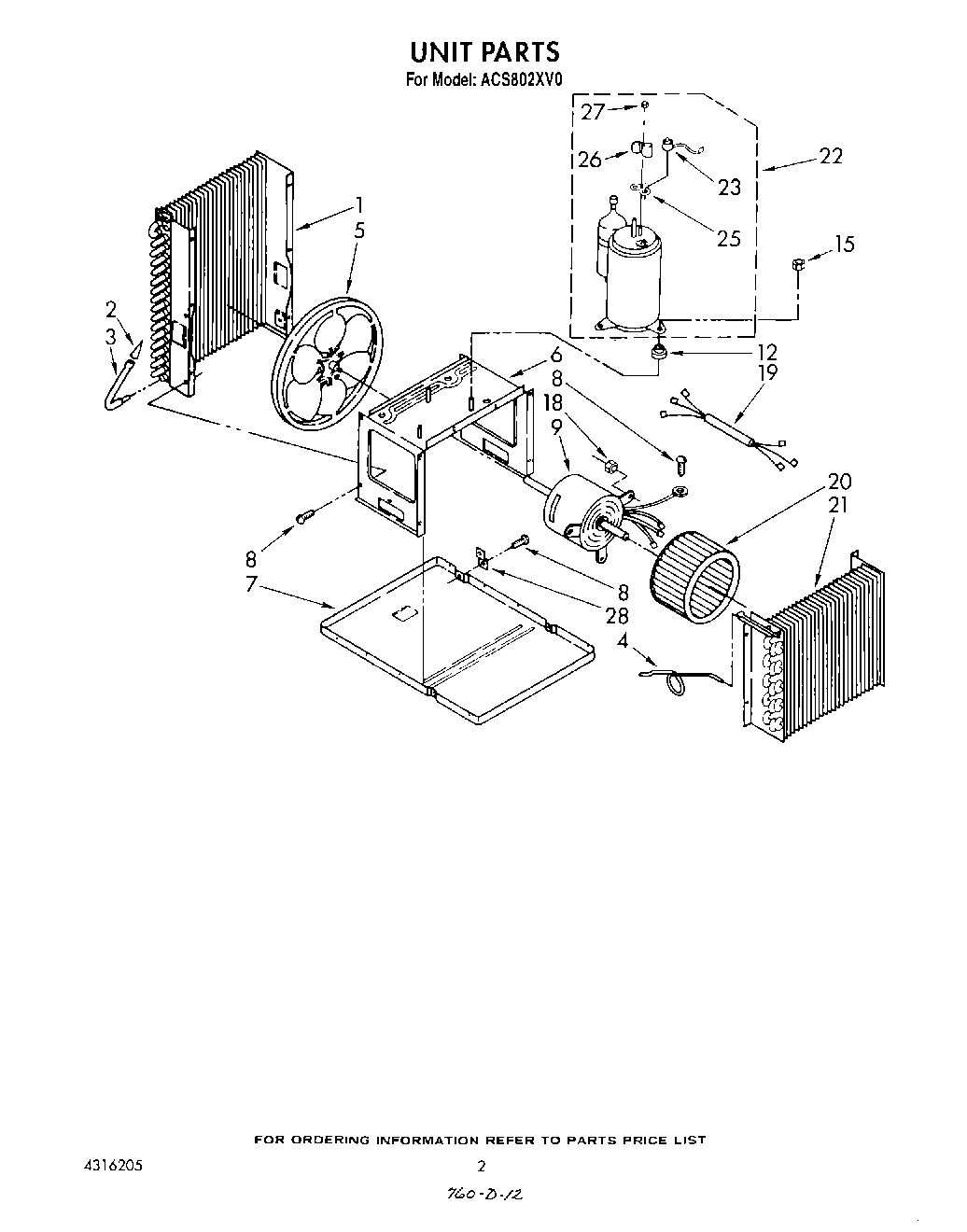

PositionProduct
1Condenser
2Strainer
3Tube, Strainer
4Tube, Restrictor
5Fan, Slinger
6Mount, Compressor
7Base, Assembly
8WP965173 Whirlpool Dishwasher Screw
9Motor, Fan
12Grommet, Compressor Mounting (3)
15Nut, 5/16-18 (3)
18Nut, Hex No. 1/4 (3)
19Harness, Wiring
20Wheel, Blower
21Evaporator
22Compressor
23Overload
25Gasket, Cover
26Cover, Overload
27Nut, Cover
28Bracket, Condenser Shroud
28978026 Whirlpool Refrigerator Primary Valve
28978027 Whirlpool Refrigerator Primary Valve
28978030 Whirlpool Refrigerator Valve
28WP978025 Whirlpool Refrigerator Valve
28VALVE, ACCESS (1/2“)
28No Drip Tape (For Sweating Tubes)
28VALVE, ACCESS (5/8“)
