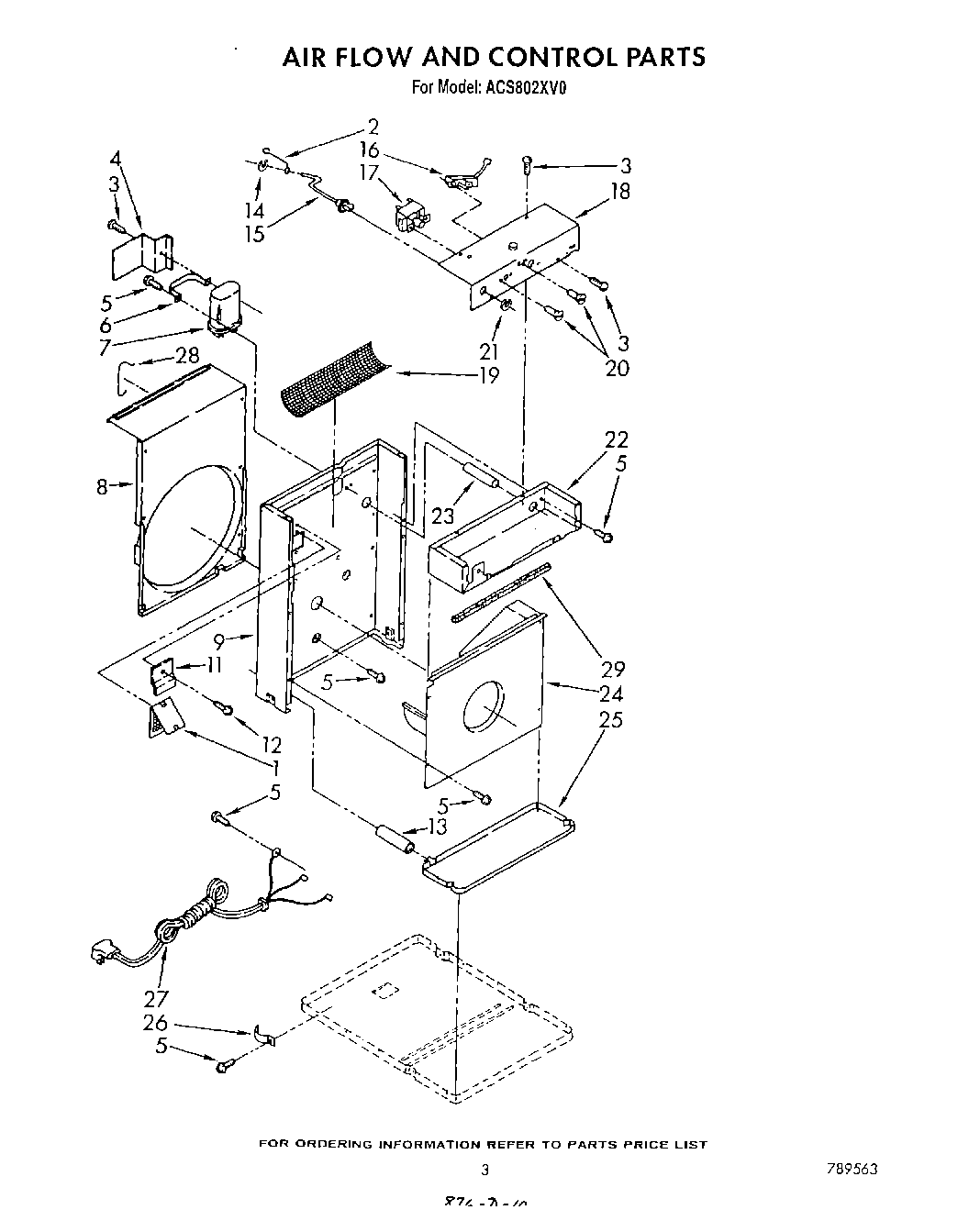

ACS802XV1 03 – SECTION

Products

Position	Product
	Guide, Energy
	Sheet, Tech & Wiring Diagram
	Guide, Use & Care
	List, Repair Parts
1	Door, Exhaust
2	Link, Wire
3	WP965173 Whirlpool Dishwasher Screw
4	Bracket, Shield Capacitor
5	WP488729 Whirlpool Refrigerator Door Screw
6	Clamp, Capacitor
7	Capacitor, Running
8	Shroud, Condenser
9	Wall, Dividing Assembly
11	Stop, Exhaust Door
12	WP302868 Whirlpool Screw
13	Tube, Drain
14	Clip
15	Control, Exhaust Assembly
16	Control, Temperature
17	Switch, Rotary
18	Cover, Control Box
19	Guard, Hazard
20	Screw, Machine 6-32 x .175 (4)
21	Clip, Retainer
22	Box, Control
23	Tube, Wire Guard
24	Housing, Blower Wheel
25	Pan, Drain
26	Clamp, Cable
27	Cable, Appliance
28	Retainer, Shroud Cover
29	212643 Whirlpool Refrigerator Permagum Sealer
29	Wire, Red, (25 Ft.)
29	WP854334 Whirlpool Air Conditioner Sealing Strip
29	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
29	Wire, 25“ Roll (Black 12 GA.)
29	Wire, 25“ Roll (White 12 GA.)
29	Lacquer, Starlight Gray (1/2 Pt. Uncut)
29	Insulation, Fiberglass (1/4“ x 24“ x 48“)
