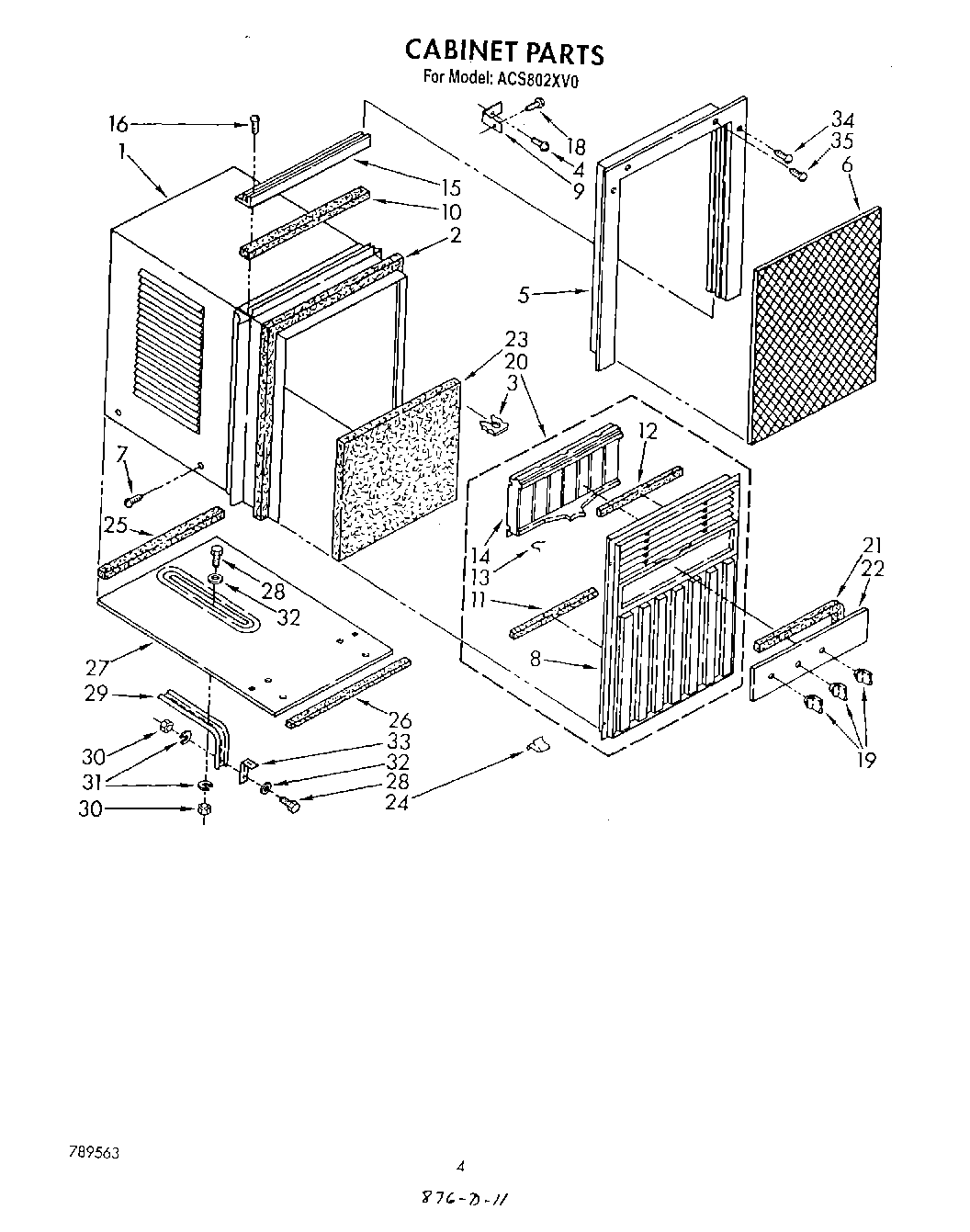

ACS802XV1 04 – SECTION

Products

PositionProduct
1Cabinet
2Strip, Seal Window
3Retainer, Filter (2)
4W10759522 Whirlpool Screw
5Filler, Frame
6Board, Filler
7WP965173 Whirlpool Dishwasher Screw
8Front
9Bracket, Window Locking (2)
10Seal Strip
11Strip, Seal
12Strip, Seal
13Retainer, Louver (2)
14Louver, Vertical
15Angle, Top
16WP488729 Whirlpool Refrigerator Door Screw
18Screw, 89 x 3/4 (2)
19Knob (3)
20Front Assembly
21Strip, Backing
22Plate, Dial
23Filter
24Clip, Front Mounting (2)
25Seal, Lower Track
26Strip Seal
27Shelf, Window Mounting
28Bolt, Carriage (5/16 x 3/4) (2)
29Bracket, Shelf (Large)
30Nut, 5/16-18 (3)
31Lockwasher (2)
32WP120393 Whirlpool Washer Assembly
33Bracket, Shelf (Small)
34Screw, 10 x 1“
35Screw, 10 x 1-3/4 (2)
