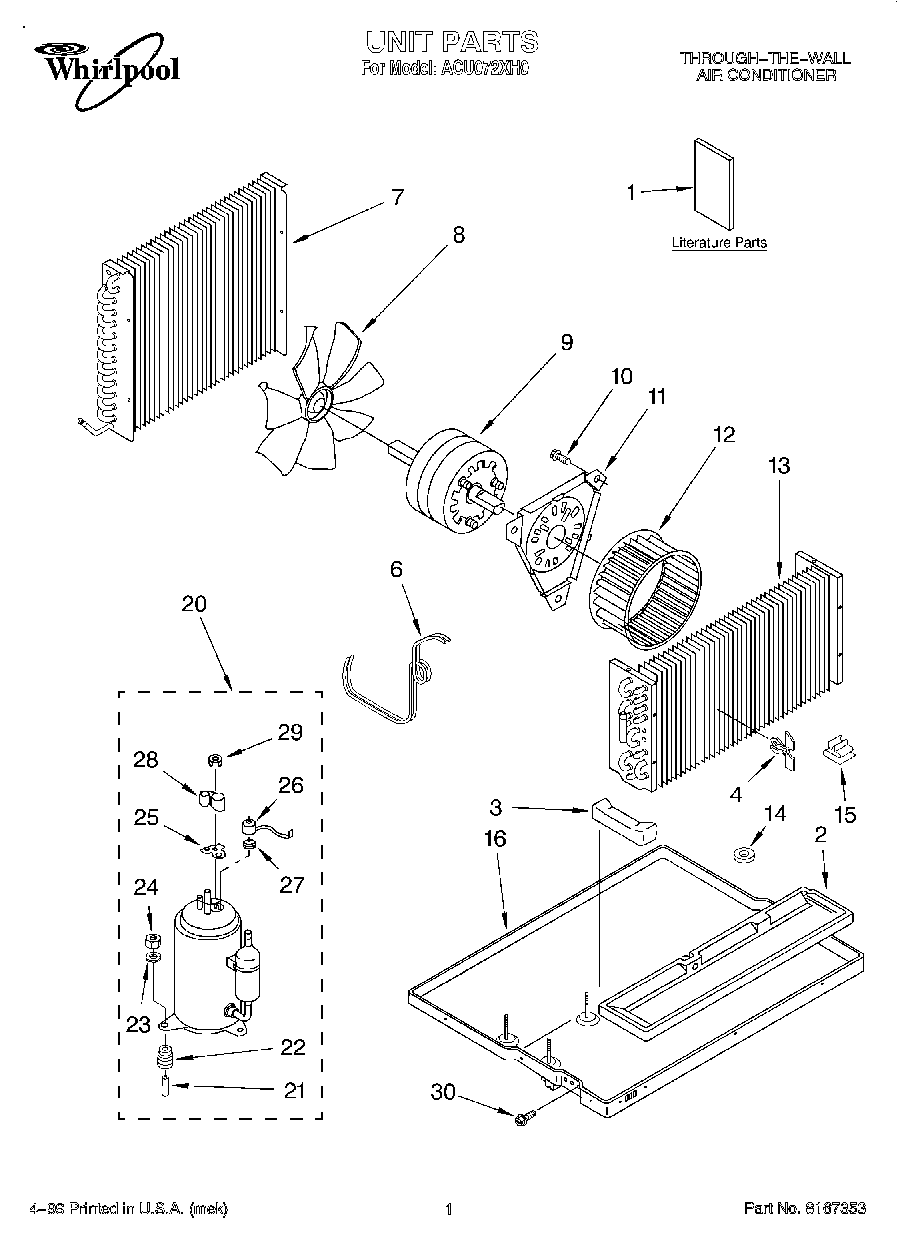

ACU072XH0 01 – SECTION

Products

Position	Product
1	Use & Care Guide
2	Pan, Drain (Evaporator)
3	Cover, Drain Pan
4	Clip, Thermostat Bulb
6	Tube, Restrictor .046 I.D. x 18.5“
7	Condenser
8	Blade, Fan (Condenser)
9	Motor, Fan
10	WP8204624 Whirlpool Bolt
11	Plate, Motor Mounting
12	Wheel, Blower (Includes Clamp)
13	Evaporator
14	Grommet, Tube
15	Clip (2)
16	Base
20	Compressor
21	Sleeve
22	Grommet
23	W11236646 Whirlpool Washer Assembly
24	Nut
25	WP950035 Whirlpool Cover Gasket
26	Overload
27	Spring, Overload
28	Cover, Terminal
29	Nut, Terminal Cover
30	Snubber, Two 1/4 Tubes
30	Screw
30	Strainer
