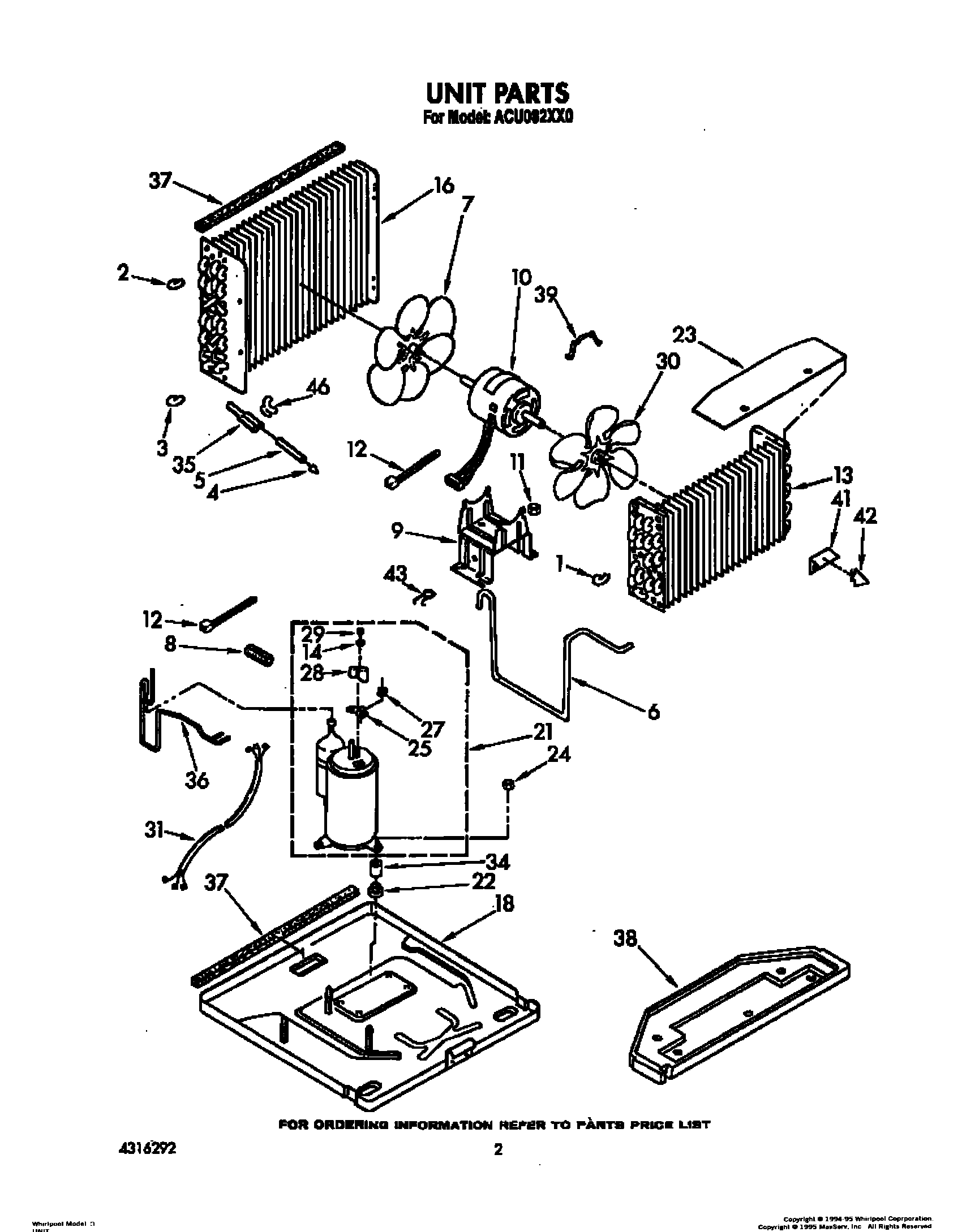

ACU082XX0 02 – UNIT, LIT/OPTIONAL

Products

PositionProduct
1Bend, Return Condenser (4)
2Bend, Return Condenser (10)
3Tube, Riser (2)
4Strainer
5Tube, Outlet (Includes No. 26)
6Tube, Restrictor (2)
7Blade, Fan (Condenser)
8Seal, Suction Tube
9Bracket, Fan Motor
10Motor, Fan
11WP488130 Whirlpool Air Conditioner Nut
12WPW10339879 Whirlpool Wire Tie
13Evaporator
14Gasket, Nut
16Condenser
18Base
214317916 Whirlpool Air Conditioner Compressor
22Grommet
23Insulation, Evaporator Shroud
24Locknut (3)
25WP950035 Whirlpool Cover Gasket
27Spring, Overload
28WP950036 Whirlpool Cover Assembly
29WP950027 Whirlpool Mounting Nut
30Wheel, Blower (Evaporator)
31Harness, Compressor
34Sleeve, Compressor (3)
35Tube, Flow Divider
36Tube, Outlet
37Seal, Condenser Bottom
38Pan, Drain
39WPY015825 Whirlpool Motor Clip
41Anticipator, Temperature
42Clip, Anticipator
43Clamp, Tube (2)
46Instructions, Installation
46Return Bend Three-Way
46Manual, Use & Care Guide
46Tech Sheet
46Literature Parts (List, Repair Parts)
