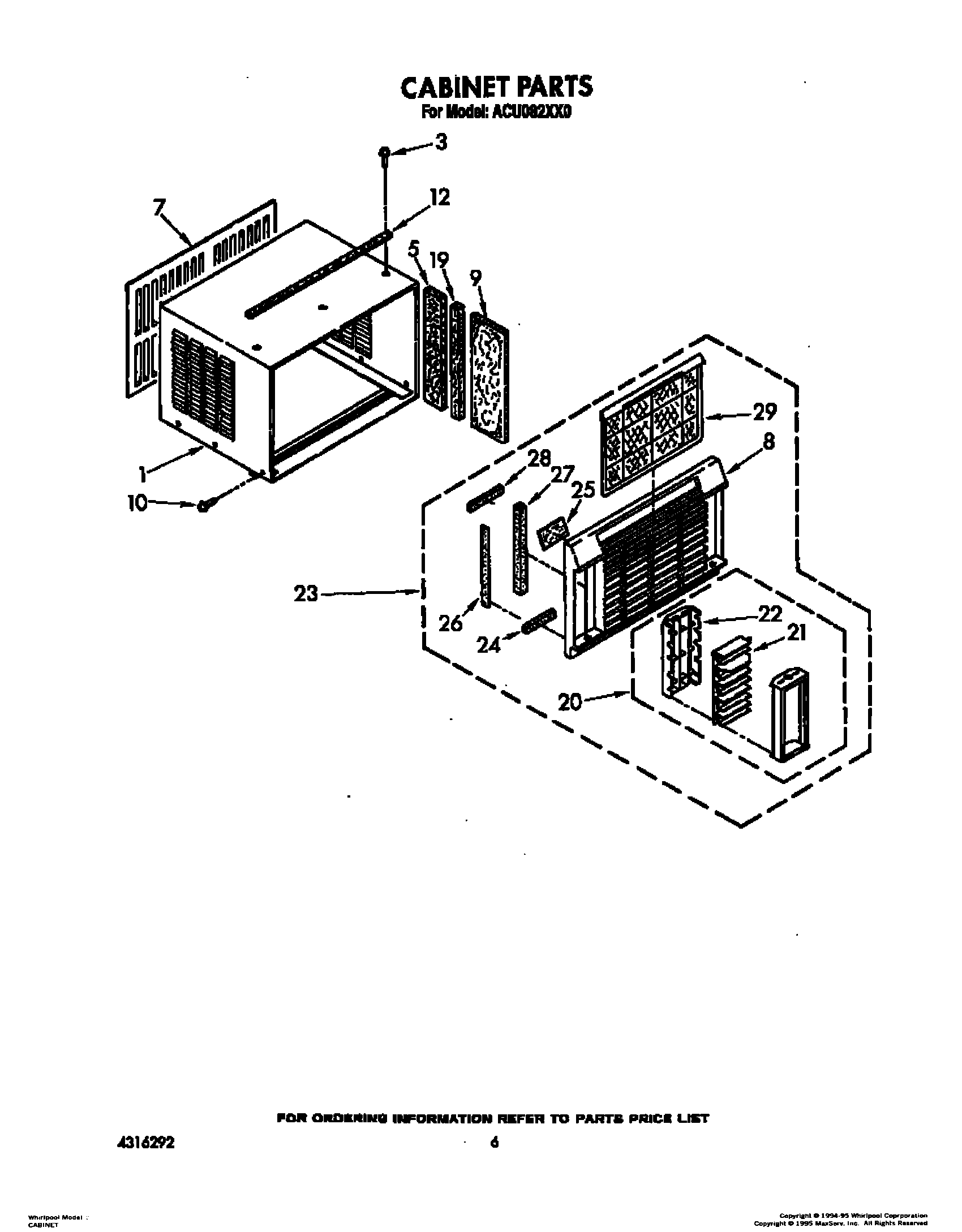

ACU082XX0 04 – CABINET

Products

Position	Product
1	Cabinet
5	Insulation, Side (2)
7	Panel, Rear
8	Cabinet Front
9	Insulation (2)
10	WP489069 Whirlpool Compactor Screw
12	WP854334 Whirlpool Air Conditioner Sealing Strip
19	Seal, Strip (2)
20	Cartridge, Complete
21	Horizontal Louver
22	Ribs, Vertical
23	Front, Complete
24	Seal (2)
25	Seal, Front
26	Seal, Front – Sides (2)
27	Seal (2)
29	Filter
